Description

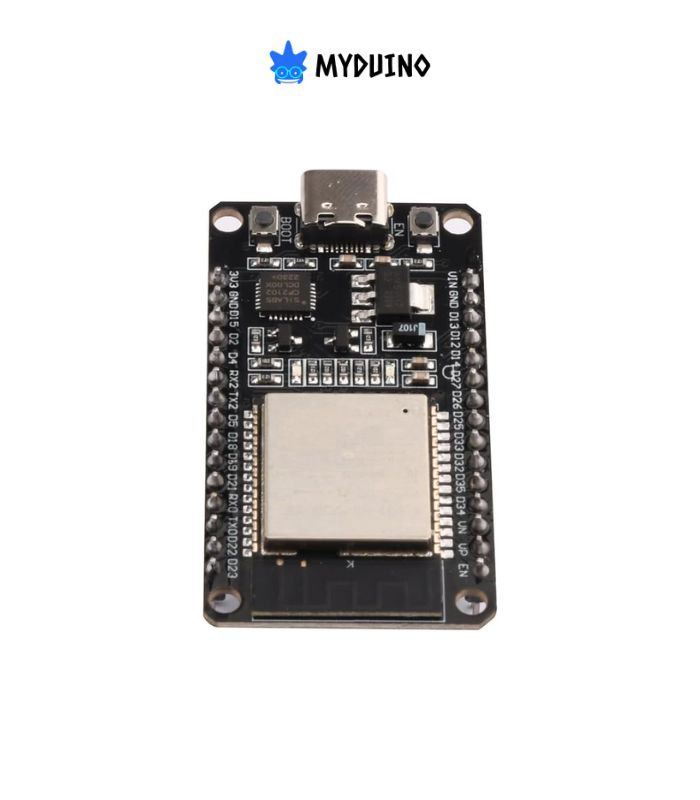

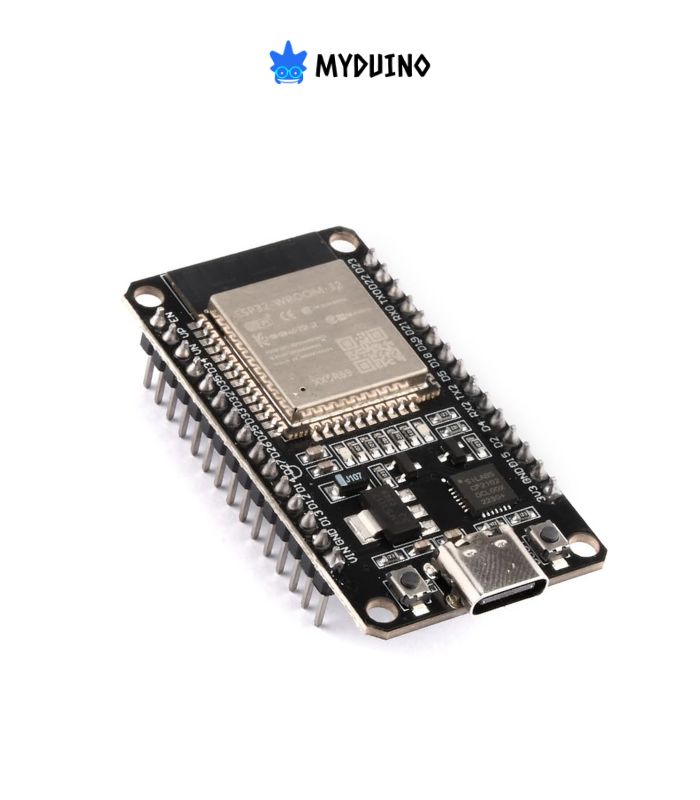

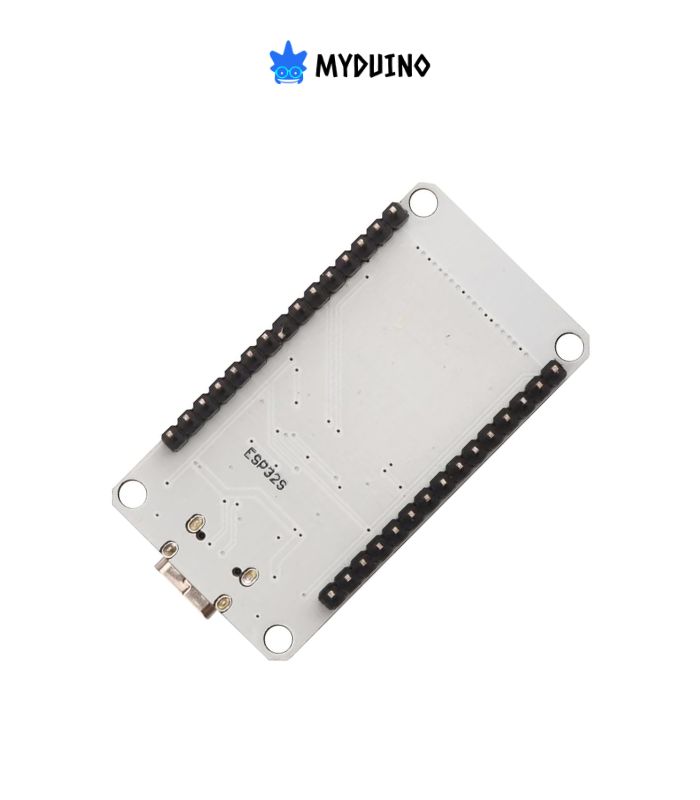

The ESP32 Devkit V1 by Espressif Systems is currently the smallest microcontroller series in the world, featuring built-in WiFi and Bluetooth simultaneously, making it ideal for IoT projects or small electronic applications. When comparing the ESP32 to the Arduino, Atmel, or PIC, you’ll find that the ESP32 Devkit V1 offers more pins, a faster processor, and superior overall performance. Some even compare the Raspberry Pi to the ESP32, but the ESP32 is smaller, cheaper, consumes less power, and is more suitable for compact projects.
SPECIFICATION
| Parameter | Details |
|---|---|
| Microcontroller | ESP-WROOM-32 |
| Processor | Xtensa dual-core 32-bit LX6 |
| Clock Speed | 240 MHz |
| RAM | 520 KB SRAM, 448 KB ROM, 16 KB SRAM in RTC |
| Flash Memory | 4 MB |
| WiFi | 802.11b/g/n |
| Bluetooth | V4.2 |

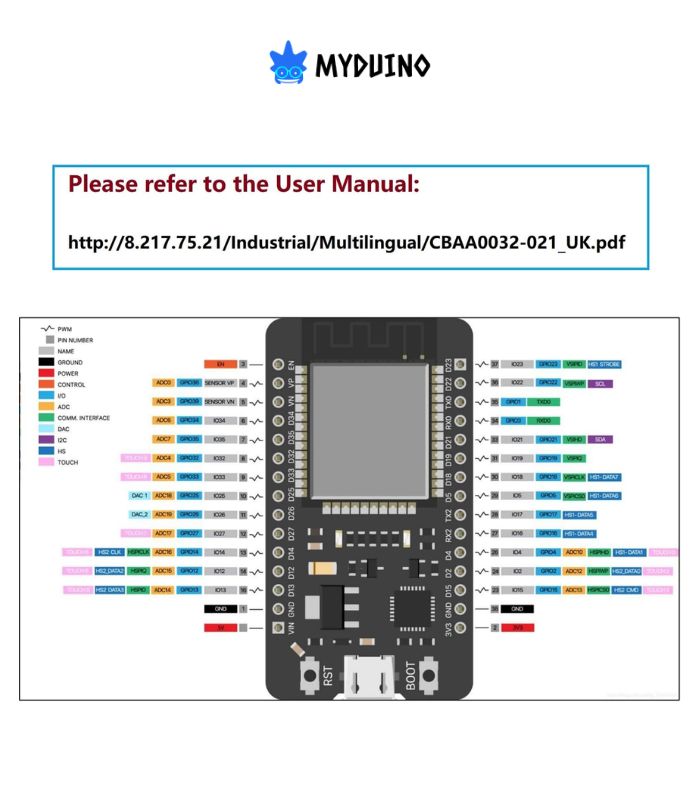

| GPIOs | 25 |
| Antenna | On-board PCB antenna |

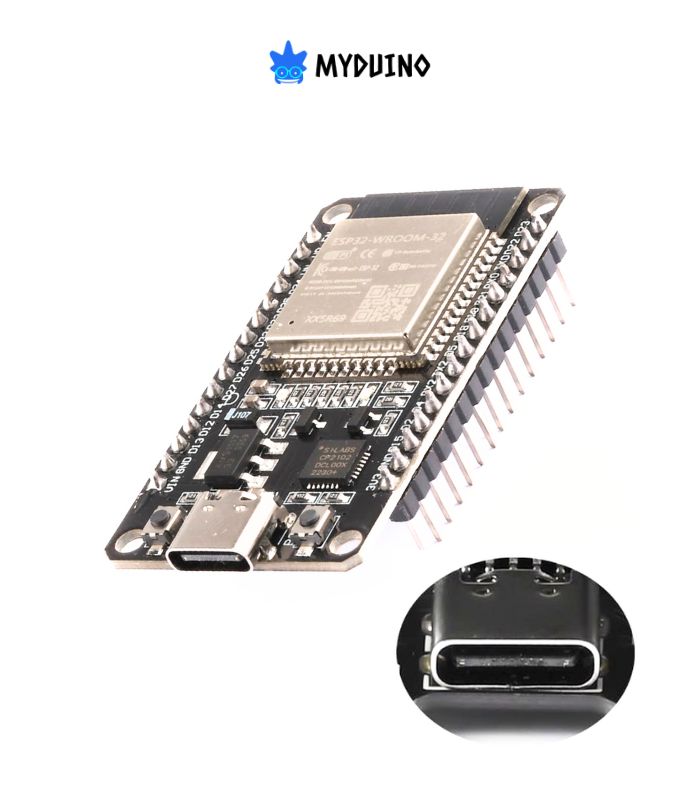

| Programming Port | USB Type-C |
| USB to UART | CP2102 |

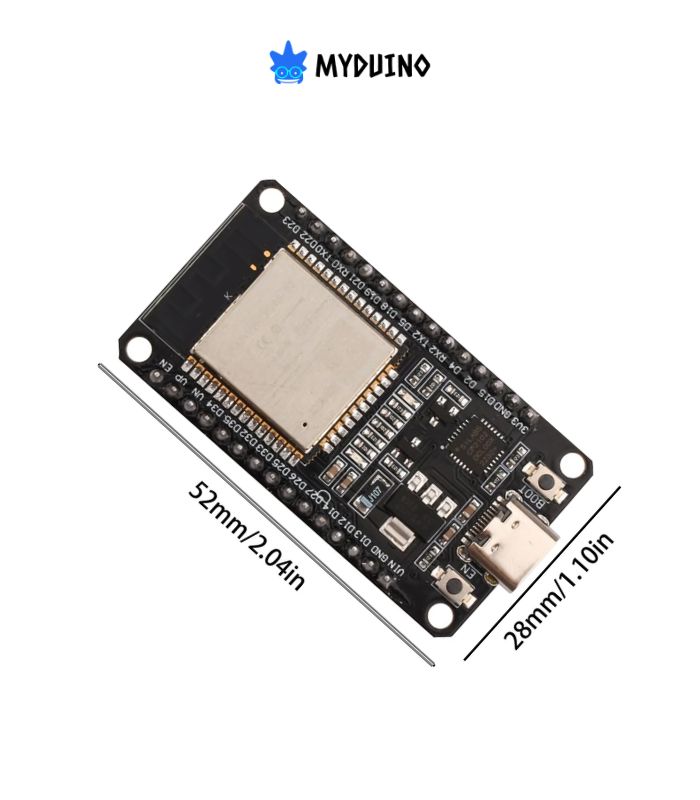

| Dimensions | 50 × 29 mm (±2) |
DOCUMENT
SHIPPING LIST
- 1 x NodeMCU ESP32 Arduino Micropython WiFi Bluetooth Development Board CP2012 Type C
