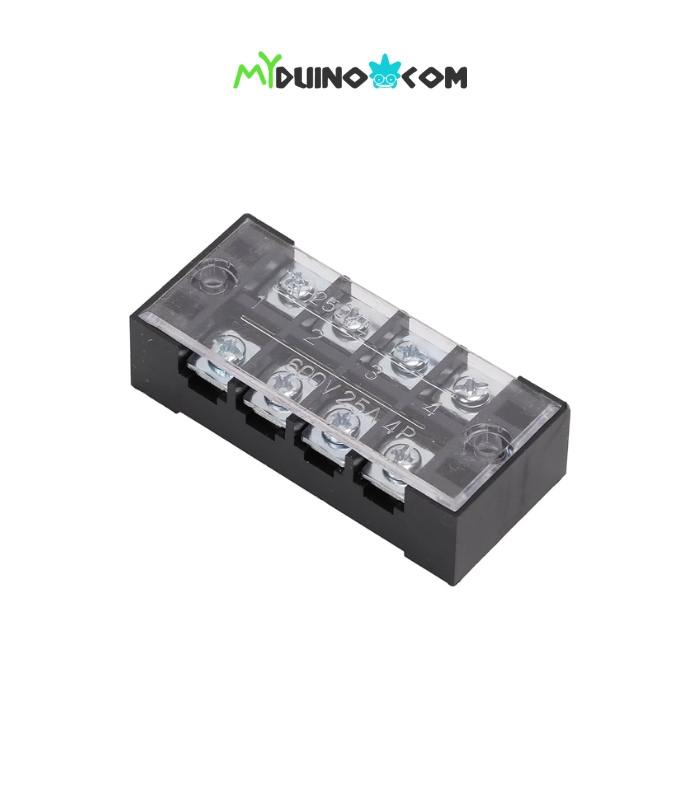

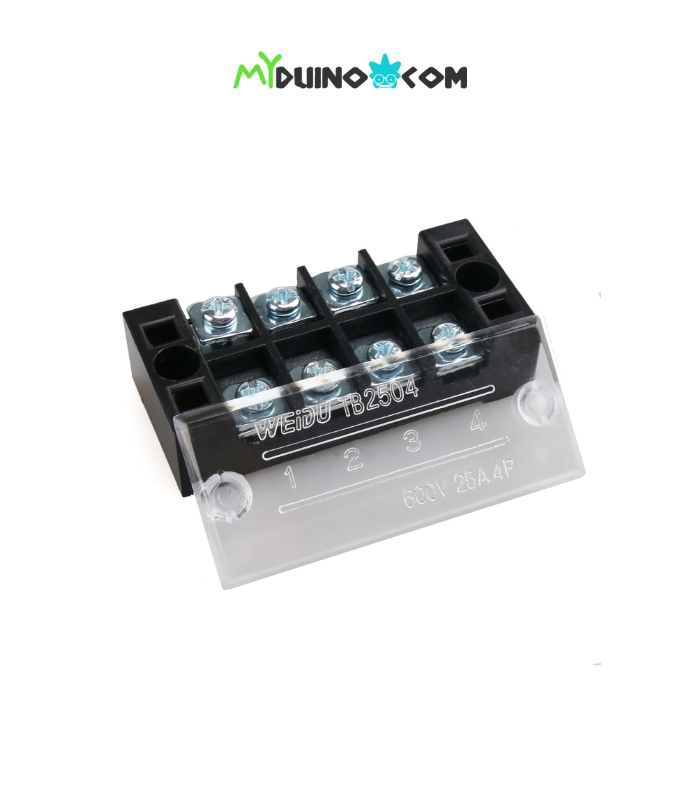

The TB-2504 25A Iron Terminal Connector has the following specifications: 600V, 25A, 4 Pole. TB-2504’s dimensions are 61.5 x 28.0 x 19.0 (L x W x H). And the screw is M4 in size. The TB-2504 25A Iron Terminal Connector is black in color. On both sides, install holes have been allocated. The goods come with a Protective Cover made of PS. The Protective Cover adds durability to the items. Furthermore, a Marker Strip is not required because it is mold-printed.
CHARACTERISTIC
- Strong point-to-point performance. The terminal block made of ABS insulation material can cut off any chance of direct contact with electricity.
SPECIFICATIONS
| Rated Volt [V] | 600V | |||||||
| Rated Current [A] | 25A | |||||||
| Wire Size [mm2] | 6.0 mm2 | |||||||
| Wire Size [AWG] | AWG 10 | |||||||
MATERIALS
| Insulator Materials | PC | |||||||
| Color | Black | |||||||
| Flame Retarded Grade | UL94V-2 (UL94V-0 is an optional part) | |||||||
| Operating Temperature [℃] | -40oC~+110oC (Max: +220oC) | |||||||
| Conductor | Brass, Nickel Plated (Copper, Tin Plated are optional parts) | |||||||
| Accessories & Parts | Protective Covers come with terminal blocks for free. No Marker Strip is needed. (Molded Printed.) | |||||||
| Total Length L [mm] | 61.5 | |||||||
| Ref. Length L1 [mm] | 51.0 | |||||||
| Gap A [mm] | 8.0 | |||||||
| Pitch B [mm] | 10.5 | |||||||
| Width W [mm] | 28.0 | |||||||
| Height H [mm] | 19.0 | |||||||
| Screw (C) Steel, Zinc Plated | M4 | |||||||
| Rated Torque [N-m] | 1.2 | |||||||
| Rated Torque [in-lb] | 10.6 | |||||||
| Poles | 4 | |||||||
SHIPPING LIST
- 1 x TB-2504 25A Iron Terminal Connector
