L7812 LM7812 Three-terminal regulator power module

RM7.90

In Stock
Compare
SKU: MYP-JHS-250 Categories: ,
Description

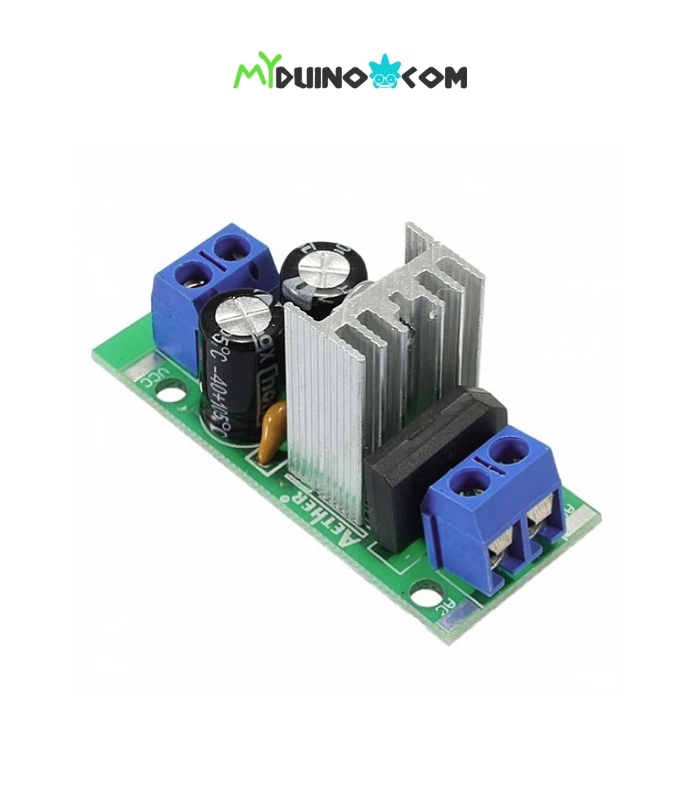

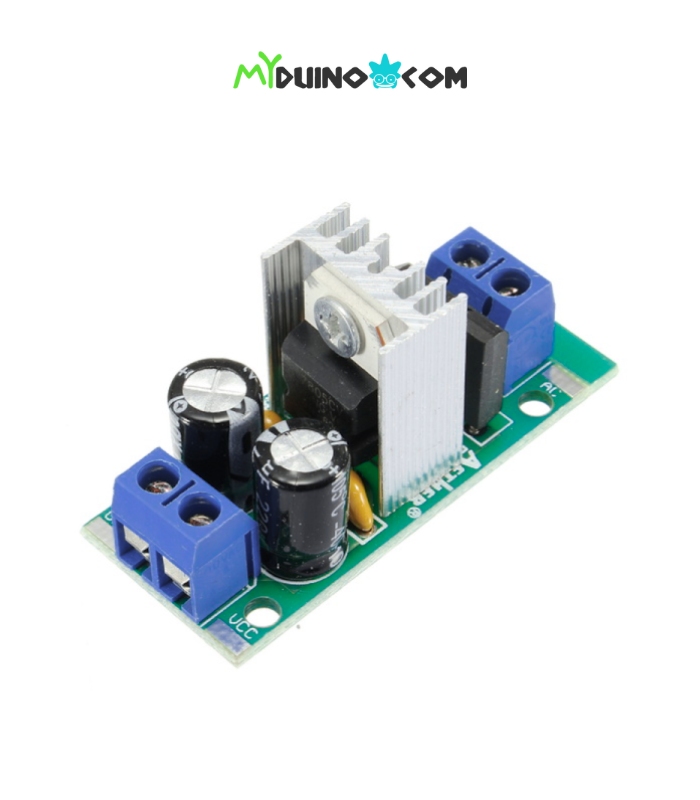

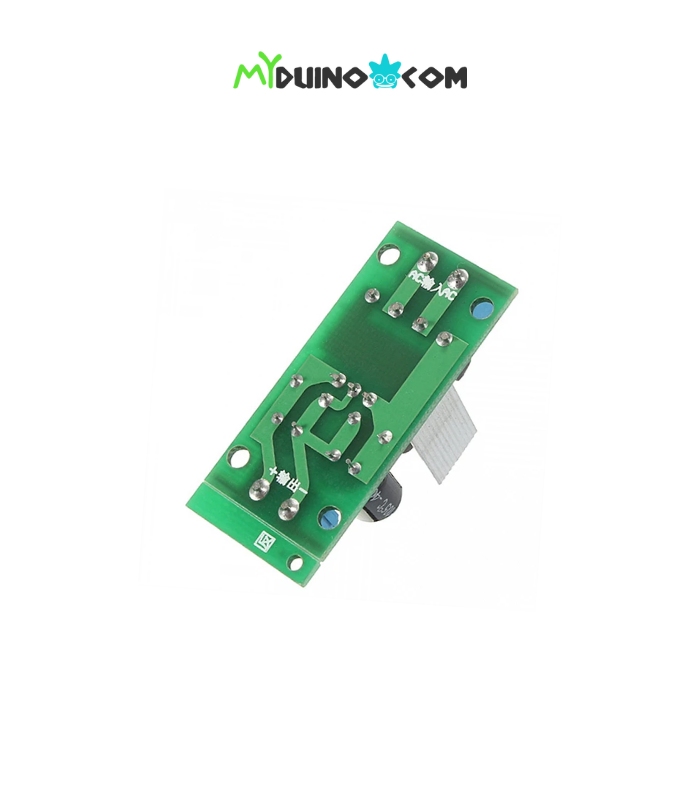

This board employs a full-wave bridge rectifier, which can accept AC or DC input independent of positive or negative electrodes. Buffer filtering with two large-capacity electrolytic capacitors 35V 220UF allows for smooth and consistent output current. The L7812 has a heat sink and a 3A rectifier bridge, allowing it to handle high-current output.

APPLICATIONS

  • DIY power supply
  • Monitor power supply
  • Test power
  • Camera power supply
  • Automotive power
  • Communications equipment supply



SPECIFICATIONS

  • Module size: 43*20*22mm
  • Input voltage (pressure): DC15 ~ 24V, AC12 ~ 18V
  • Load Regulation: 100mV
  • Quiescent Current: 8mA
  • Output noise voltage: 42uV
  • Input and output pressure: 2V
  • Output Impedance: 15mΩ
  • Peak Current: 1.5A

SHIPPING LIST

  • 1 x L7812 LM7812 Three-terminal regulator power module
