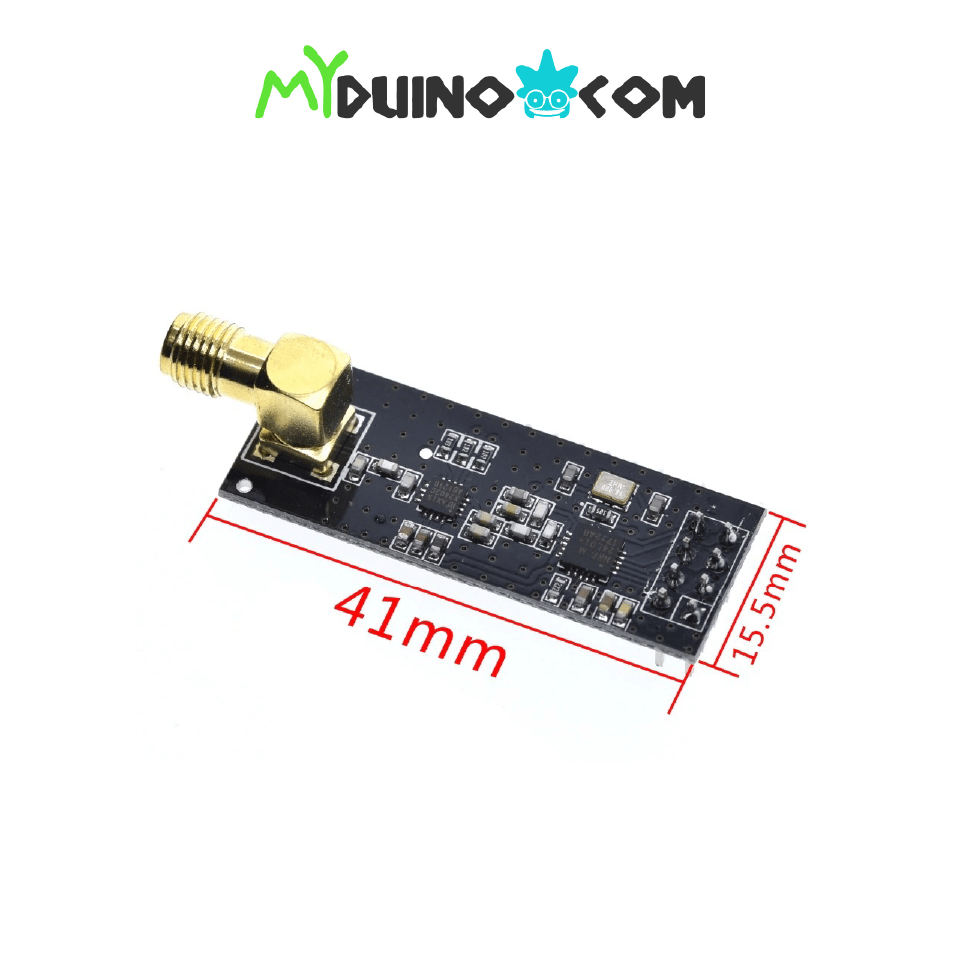

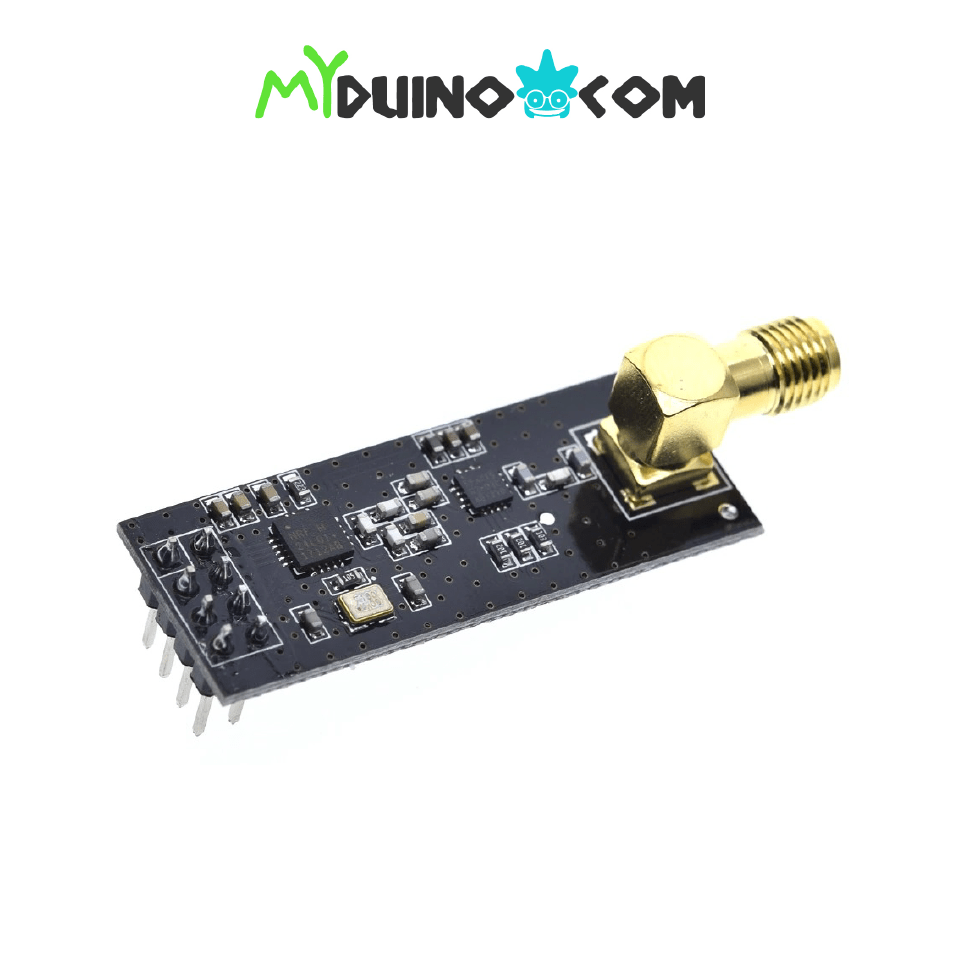

nRF24L01 Wireless PA LNA Module

RM12.90

Hurry, only 5 left.
Compare
SKU: MYP-JHS-116 Category:
Description

This wireless transceiver module is an excellent choice for those seeking to establish a cost-effective wireless communication system with ease. It strikes a remarkable balance between wireless transmission performance and affordability, making it a practical solution for various applications. Whether you’re working with an MCU, ARM, PIC, AVR, STM32, or any other compatible system, integrating this nRF24L01+ module is straightforward.

What sets this module apart is its design, featuring a built-in power amplifier and an SMA antenna. This combination empowers your wireless communication capabilities, extending your reach up to an impressive 1000 meters. Whether you’re looking to enhance your IoT project or create a long-range wireless link, this module offers both simplicity and performance at a low cost.

SPECIFICATIONS

  • IC: nRF24L01+
  • Operating Frequency: 2400MHz ~ 2524MHz
  • Modulation: GMSK
  • Transmit power: more than +20 dbm, 50Ω
  • Receiver sensitivity:-95dbm
  • Operating voltage: 2.7V ~ 3.6V
  • Max Emission current: 115mA
  • Max Receive current: 45mA
  • Operating temperature: -45 degrees to +85 degrees
  • Storage temperature: -45 degrees to +125 degrees
  • Gain Of PA: 20 dB
  • Gain Of LNA: 10 dB

DOCUMENTATION

SHIPPING LIST

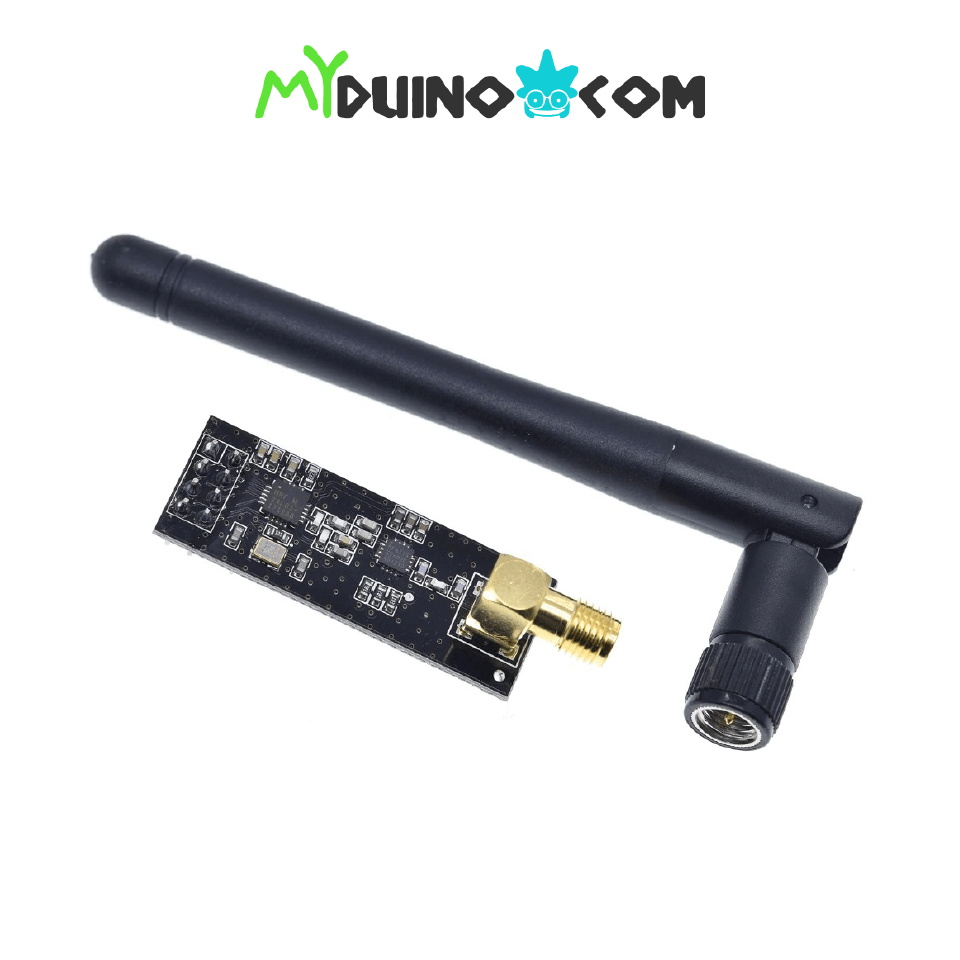

  • 1 x nRF24L01+ PA + LNA module
  • 1 x 2.4GHz SMA Antenna
