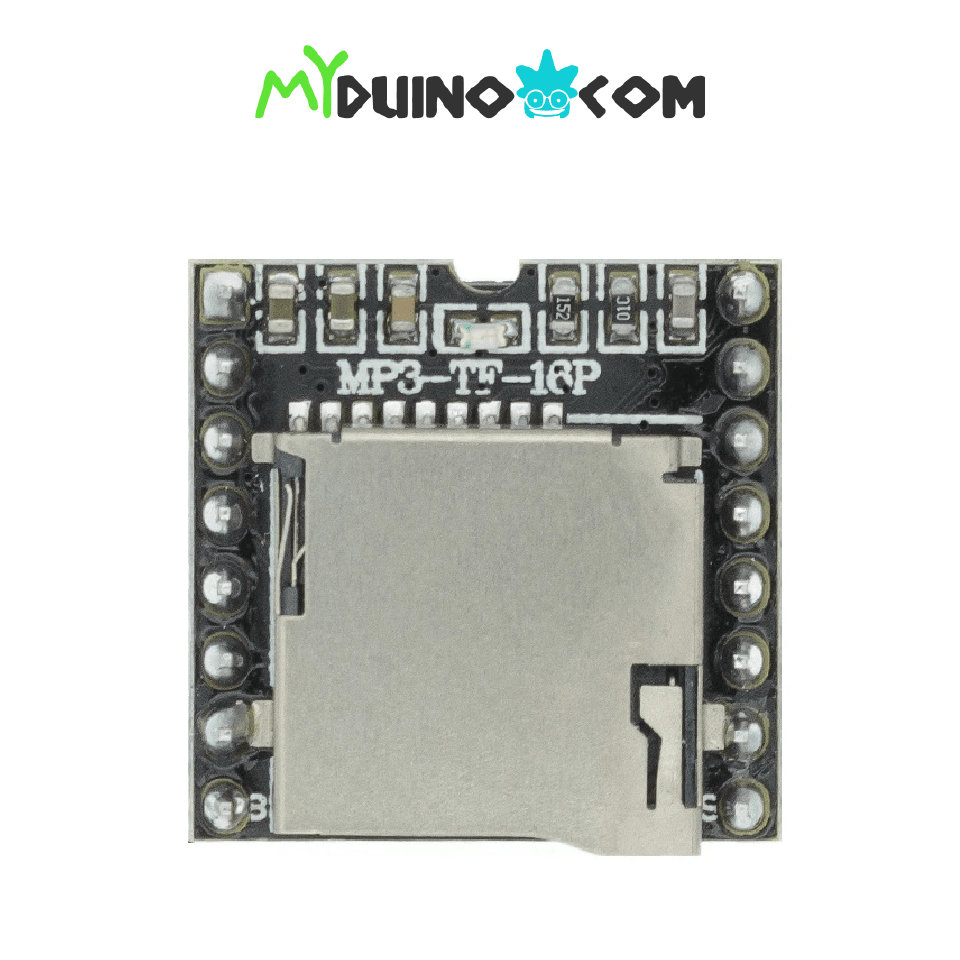

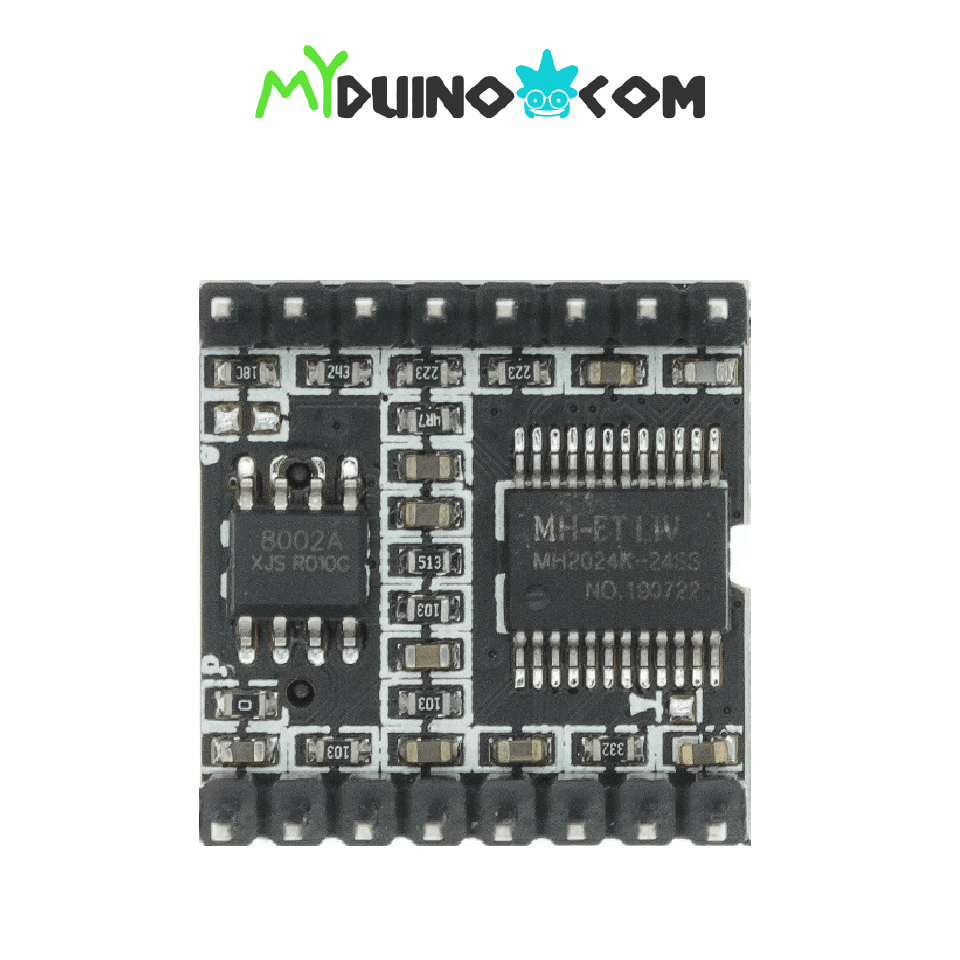

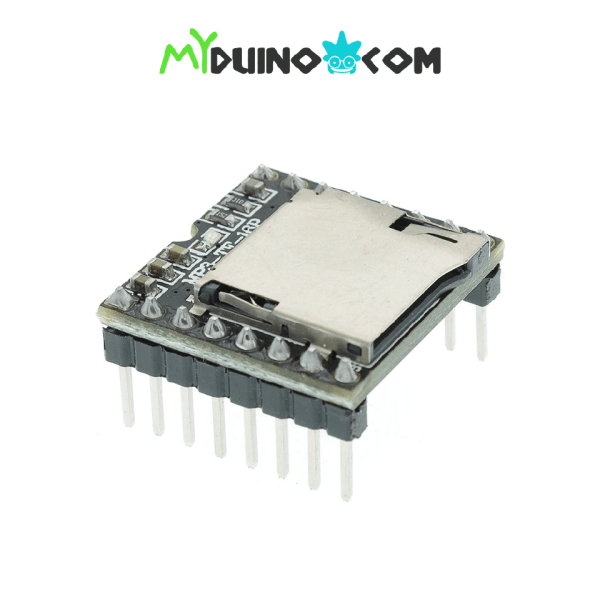

The Mini MP3 Player For Arduino is a compact and inexpensive MP3 module that outputs straight to the speaker. The module may be used as a stand-alone module with a connected battery, speaker, and push buttons or in conjunction with an Arduino UNO or any other module that has RX/TX capabilities.
APPLICATION
- Car navigation voice broadcast;
- Road transport inspectors, toll stations voice prompts;
- Railway station, bus safety inspection voice prompts;
- Electricity, communications, financial business hall voice prompts;
- Vehicle into and out of the channel verify that the voice prompts;
- The public security border control channel voice prompts;
- Multi-channel voice alarm or equipment operating guide voice;
- The electric tourist car safe driving voice notices;
- Electromechanical equipment failure alarm;
- Fire alarm voice prompts;
- The automatic broadcast equipment, regular broadcast.
SPECIFICATIONS
- Supported sampling rates (kHz): 8/11.025/12/16/22.05/24/32/44.1/48
- 24-bit DAC output, support for dynamic range 90dB, SNR support 85dB
- Fully supports FAT16, FAT32 file system, maximum support 32G of the TF card, support 32G of U disk, 64M bytes NOR FLASH
- A variety of control modes, I/O control mode, serial mode, AD button control mode
- Advertising sound waiting function, the music can be suspended. when advertising is over the music continues to play
- Audio data sorted by folder supports up to 100 folders, and every folder can hold up to 255 songs
- 30 level adjustable volume, 6 -level EQ adjustable
DOCUMENTATIONS
SHIPPING LIST
- 1 x Mini MP3 Player Module
