TCRT5000 sensors continuously emit infrared infrared emitting diodes, Infrared rays are emitted when not being reflected back or reflected back but the intensity is not large enough, the phototransistor has been in a shutdown state, then the output modules is high, indicating the diode remains off state; when the object appeared to be detected within the detection range of the infrared is reflected back and the intensity is large enough, the phototransistor
- Fax paper shredder detection
- Obstacle detection
- Black and white line detection
APPLICATION
- The meter pulse data sampling
- Fax machine shredder paper detection
- obstacle detection
- black and white line detection
SPECIFICATION
- Working voltage: DC 3.3V-5V
- Working current: ≥ 20mA
- Operating temperature: -10℃~+50℃
- Detection distance:2-40cm
- IO Interface: 4-wire interfaces (-/+/S/EN)
- Output signal: TTL level (low level there is an obstacle, no obstacle high)

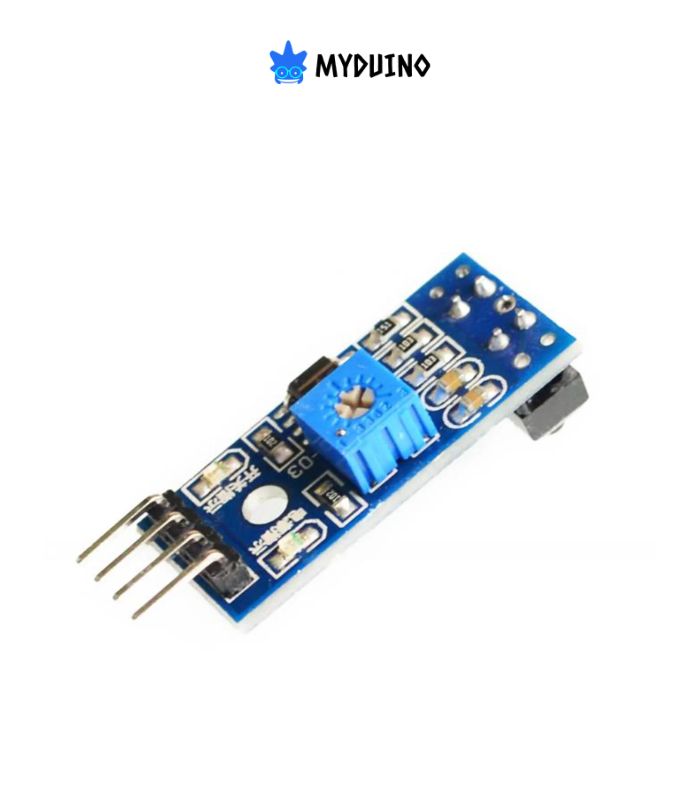

- Adjustment: Adjust multi-turn resistance 8. Effective angle: 35° 7.
- Size: 28mm×23mm
DOCUMENTATION
SHIPPING LIST

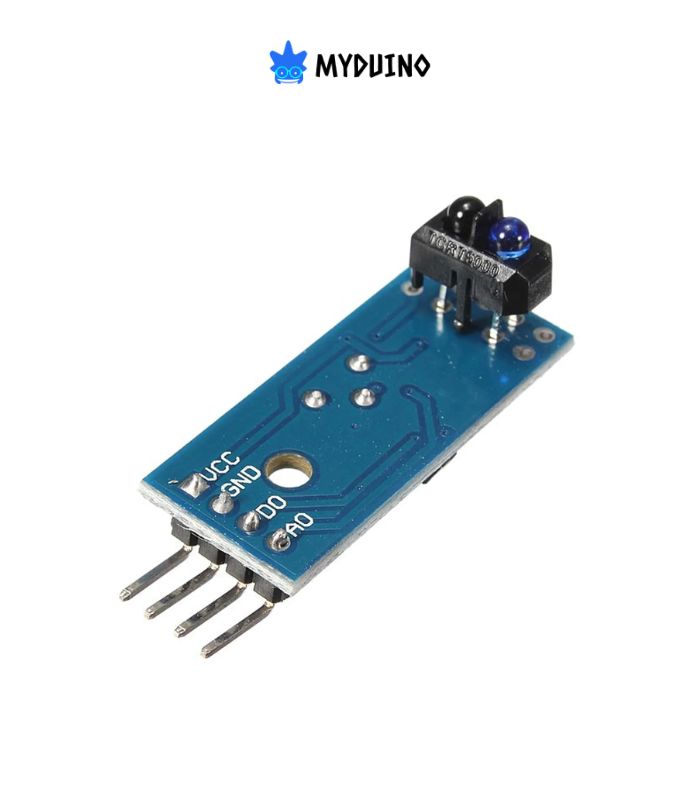

- 1 x TCRT5000 Infrared Reflectance Line Sensor
