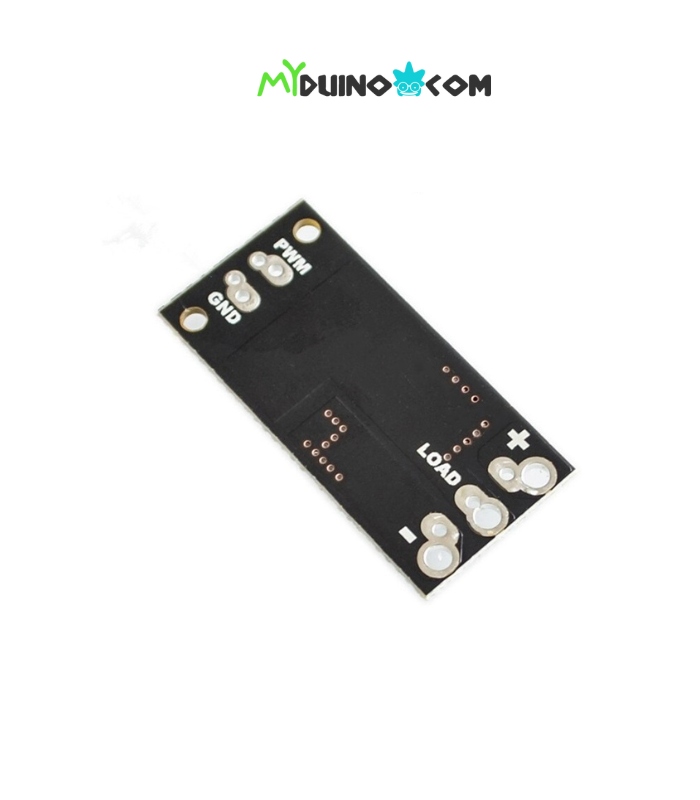

The LR7843 N-Channel logic compatible MOSFET with extremely low Rds(on) is used in this MOSFET module with optoisolation for moderate to higher current low-side switching applications of up to 15A continuous.
FEATURES
- One switching output
- Ultra-low 3.3mΩ Rds(on) resistance
- 2.5V – 20V input control voltage with optoisolation
- 6 – 28V output switching voltage
- 15A continuous current handling capability (See notes below)
- 3.3 and 5V logic compatible (See notes below)
SPECIFICATIONS
| VDS | Drain-Source Voltage | 30V max (28V recommended) |
| ID | Drain Current Max (Continuous) | 15A @ 12V |
| RDS(on) | Drain-Source On-Resistance | 3.3mΩ |
| Dimensions | (L x W x H) | 35 x 16 x 14mm (1.38 x 0.63 x 0.55″) |
SHIPPING LIST

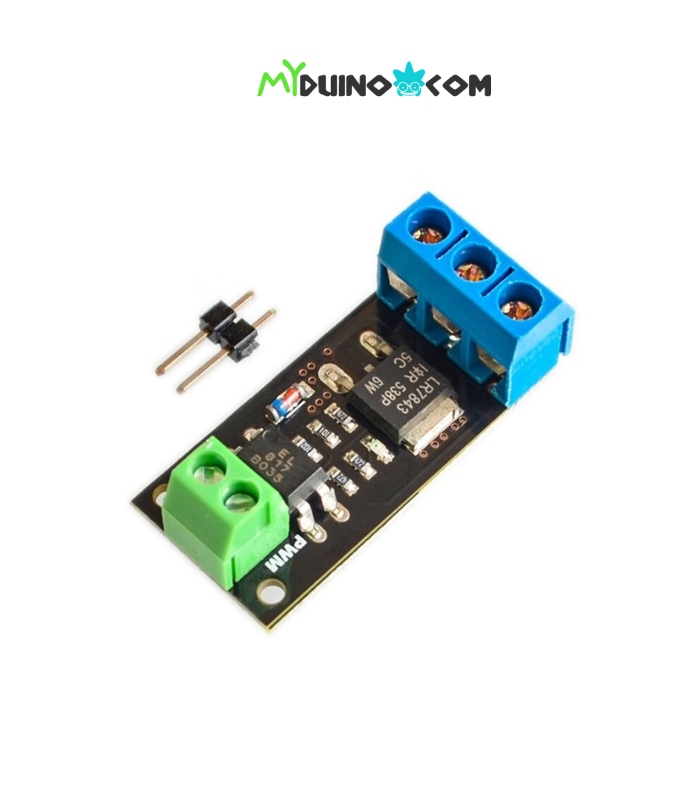

- 1 x LR7843 MOSFET Control Module
- 1 x 3-pin Screw Terminal
- 1 x 2-pin Screw Terminal
- 1 x Small male header strip
