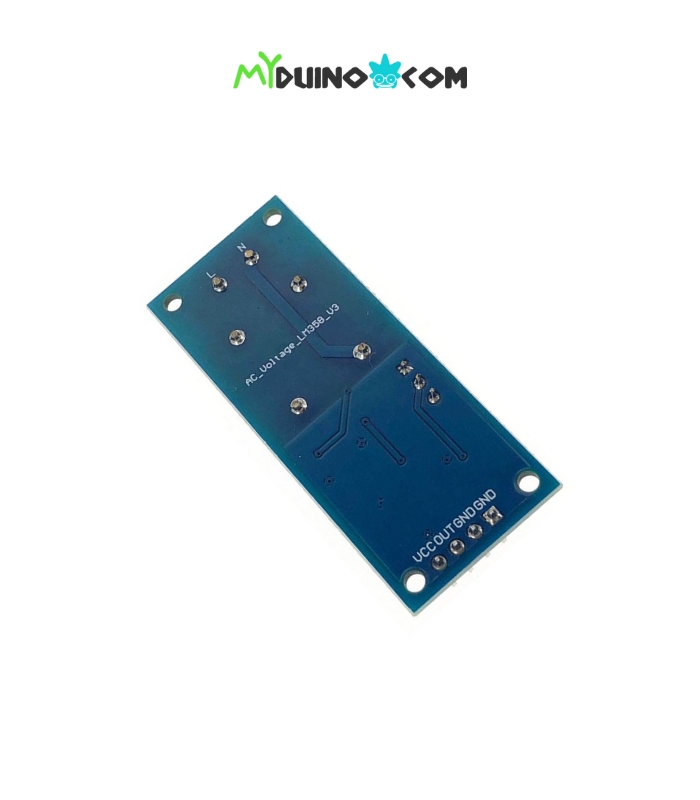

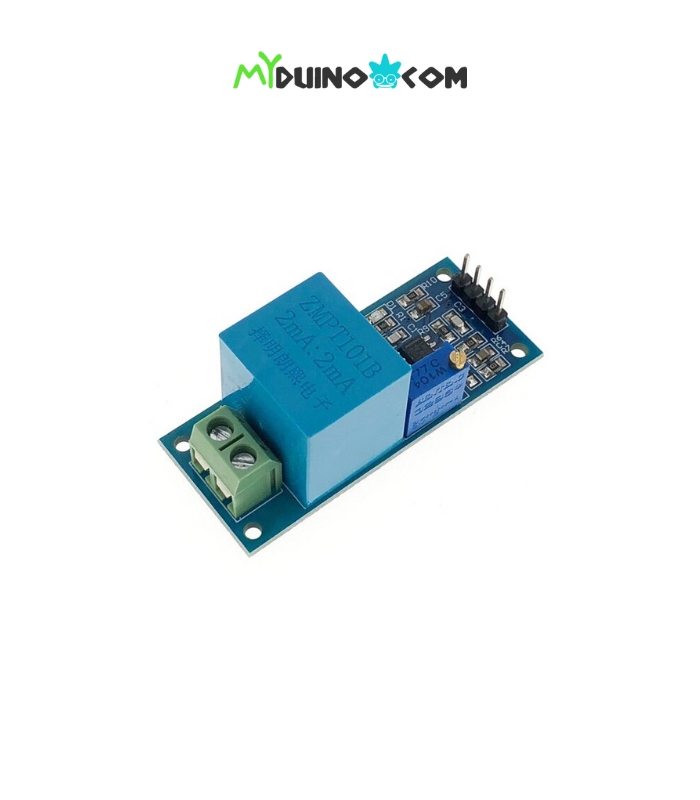

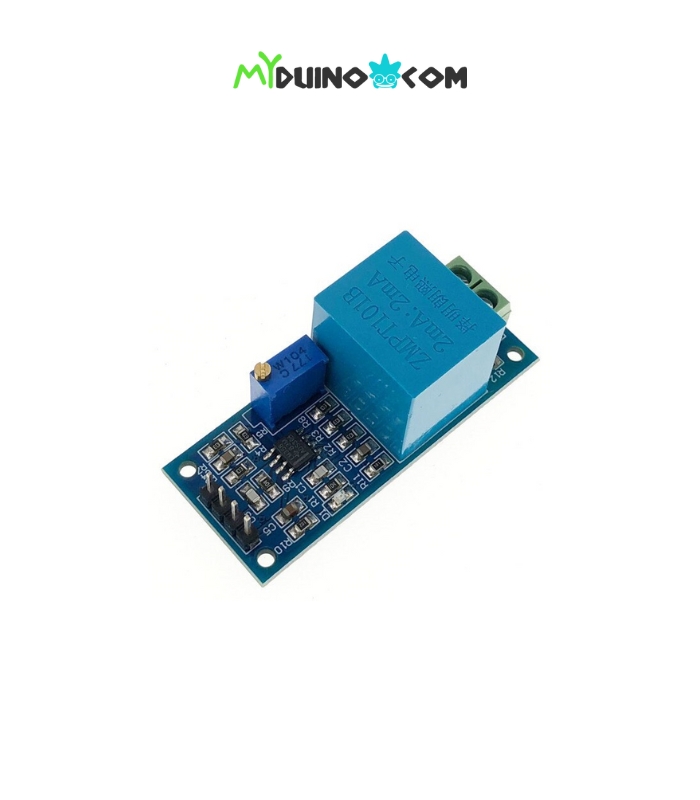

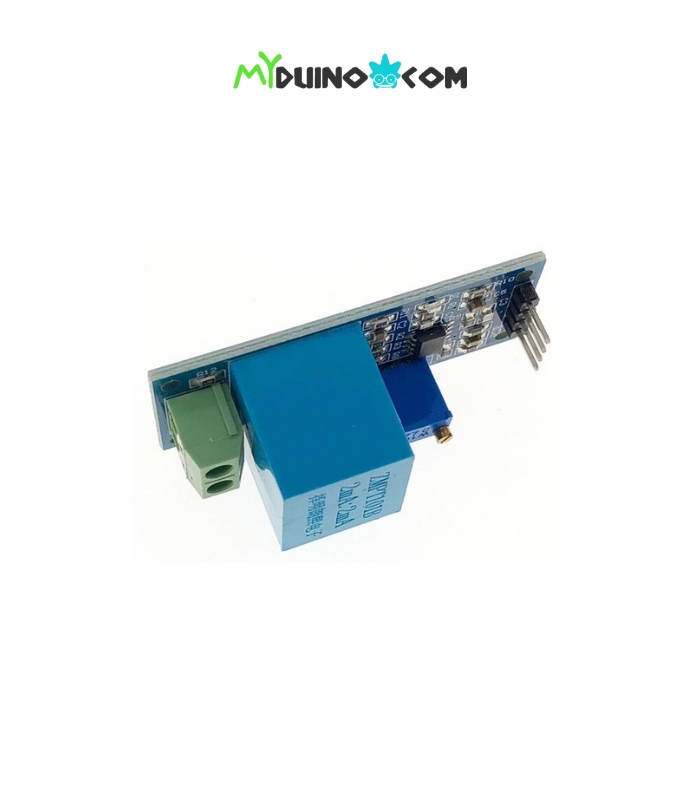

ZMPT101B Single Phase 250VAC Voltage Sensor Module

This Arduino module is an active single-phase voltage sensor module based on a high-accuracy ZMPT101B voltage transformer. This module simply monitors the AC mains voltage up to 250 volts, allowing it to be extensively used in industrial and residential equipment to detect, measure, and prevent overvoltage and Undervoltage damage, among other things. This module has a multi-turn trim pot for modifying the analog output. You can simply measure the main voltage with Arduino or even Raspberry Pi (external ADC required) by utilizing the voltage sensor. To filter the CONTINUOUS component of the waveform, connect pF in series to the OUT output.

SPECIFICATIONS

• Output Signal: Analog 0-5V
• Operating Voltage: DC 5V-30V
• Measure within 250V AC
• Rated input current: 2mA
• Size: 49.5 mm x 19.4 mm
• Onboard micro-precision voltage transformer
• Analog output corresponding quantity can be adjusted
• Good consistency for voltage and power measurement
• Active output single-phase AC voltage sensor module

DOCUMENT

• Tutorial

SHIPPING LIST

• 1 x ZMPT101B Single Phase 250VAC Voltage Sensor Module
