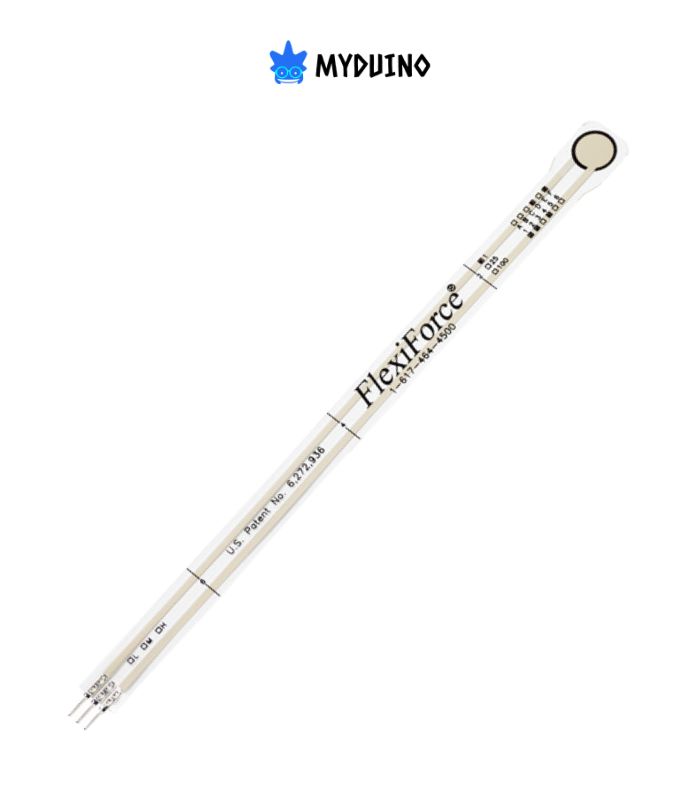

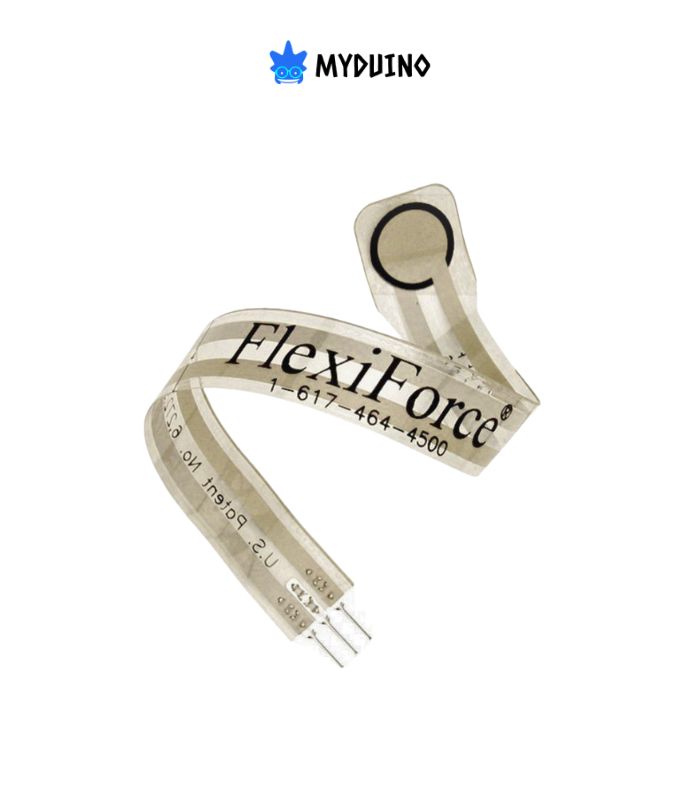

The FlexiForce A201 is a piezoresistive force sensor engineered for measuring forces between two mating surfaces with ease. Its ultra-thin, flexible design and multiple length options make it an ideal choice for applications requiring non-intrusive, reliable force measurement. Whether you’re testing, prototyping, conducting research, or exploring proof-of-concept designs, the A201 delivers consistent results in tight spaces. Compatible with Tekscan electronics- including the FlexiForce Sensor Characterisation Kit and the ELF System*- or your own setups, including multimeters, this sensor adapts to your needs with ease.

SPECIFICATION

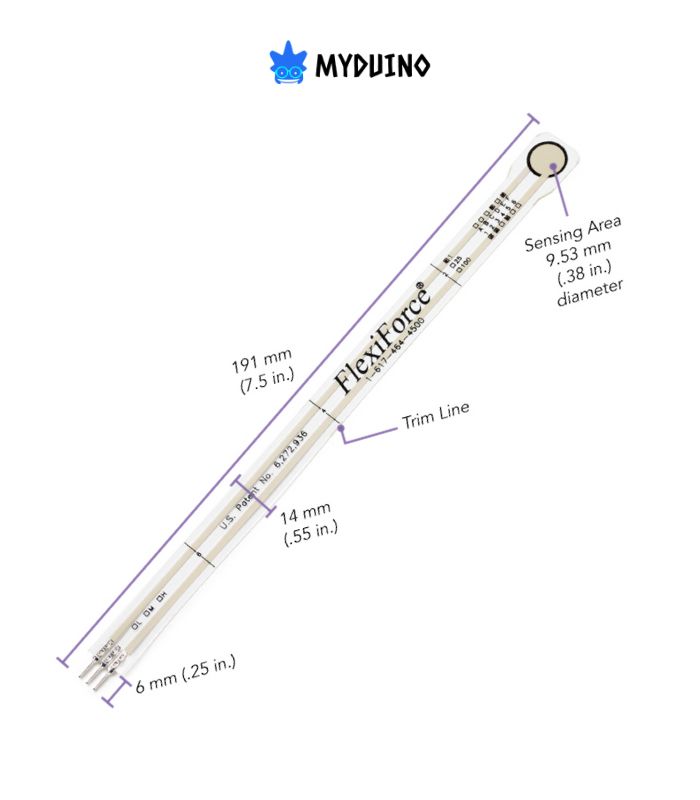

• Thickness: 0.208mm
• Length: 203mm Width: 14mm
• Sensing Area: 9.53mm (diameter)
• Response Time < 5 microseconds
• Operating Temperatures: -9oC to 60oC
• Force Range: 0-25lbs

SHIPPING LIST

• 1 x FlexiForce A201 191mm Sensor
