Schottky Barrier Diode

RM0.50RM0.70

In Stock
Clear
Compare
SKU: N/A Categories: ,
Description

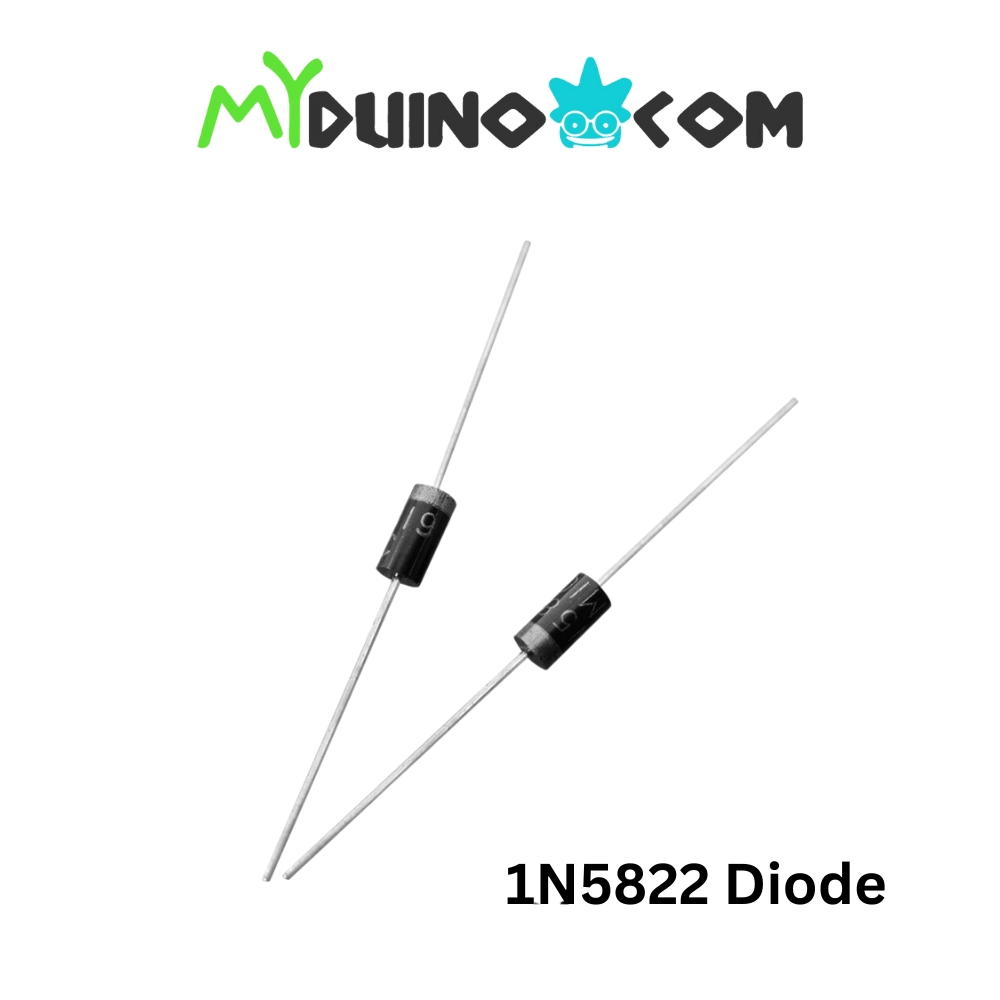

1N5822

STMicroelectronics’ 1N582X series is an axial leaded, single low drop power Schottky rectifier in a DO-201AD package. This diode has exceptionally low conduction losses, minimal switching losses, and quick switching. Switch mode power supplies and high-frequency DC to DC converters, low voltage, high-frequency inverters, freewheeling, polarity protection, and compact battery chargers are typical applications.

  • Avalanche capability specified
  • Maximum repetitive reverse voltage Vrrm of 20V, 30V and 40V
  • Nonrepetitive forward surge current IFSM of 80A at tp 10ms
  • Forward Current If(AV) of 3A
  • Maximum forward voltage VF of 850mV, 900mV and 950mV respectively at IF 9.4A
  • Maximum operating junction temperature of 150°C

1N5819

The MIL-STD-202 Schottky Barrier Rectifier 1N5819 has a molded plastic casing and solderable tin-plated terminals. It may be used in low-voltage, high-frequency inverters, as well as free-wheeling and polarity protection applications.

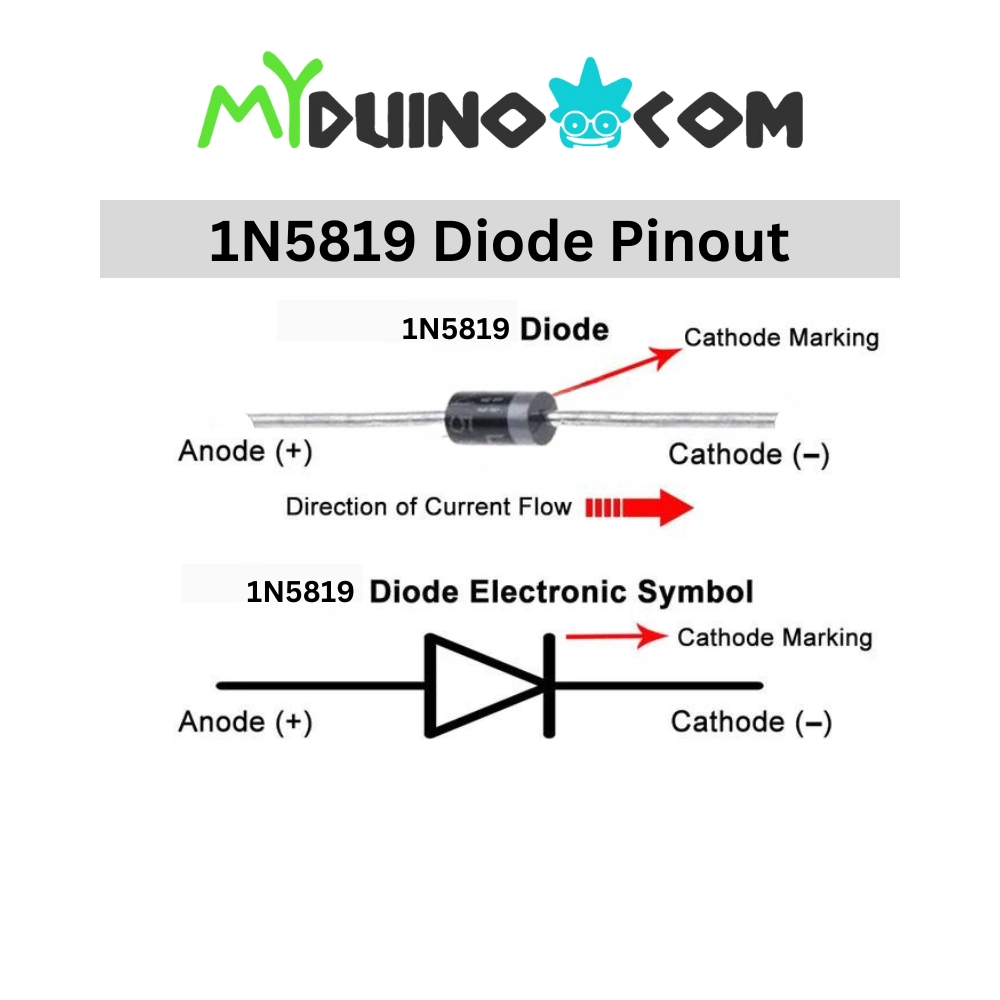

  • Polarity is indicated by the cathode band
  • Guard-ring die construction for transient protection
  • Low power loss, high efficiency
  • High surge capability
  • High current capability and low forward-voltage drop
  • UL94V-0 Flammability rating

SPECIFICATIONS

1N5822

  • Repetitive Peak Reverse Voltage: 40V
  • Average Forward Current: 3A
  • Forward Voltage Max: 525mV
  • Forward Surge Current: 80A
  • Operating Temperature Max: 150°C
  • Diode Mounting: Through Hole

1N5819

  • Repetitive Peak Reverse Voltage: 40V
  • Average Forward Current: 1A
  • Forward Voltage Max: 900mV
  • Forward Surge Current: 25A
  • Operating Temperature Max: 125°C
  • Diode Mounting: Through Hole

DOCUMENT

SHIPPING LIST

  • 1 x Schottky Barrier Diode 1N5822 /1N5819
