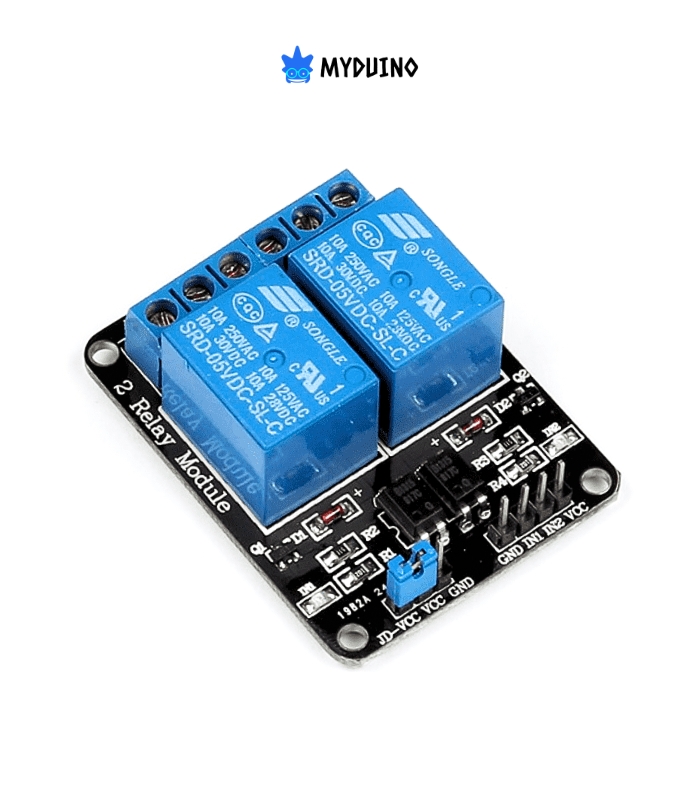

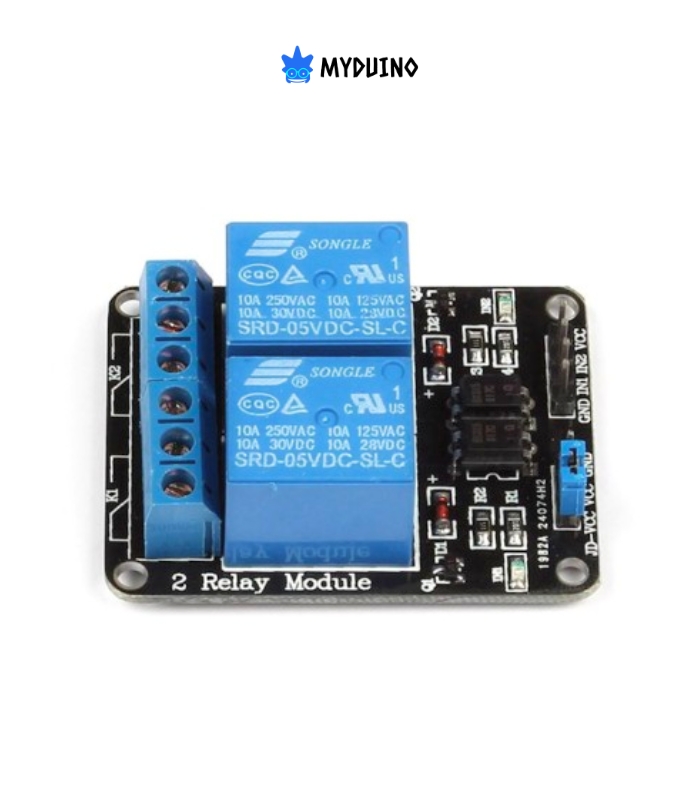

The 2 Channels Relay Module is a useful board for controlling high voltage, high current loads such as motors, solenoid valves, lamps, and AC loads. It is meant to work with microcontrollers such as Arduino, PIC, and others. The relay terminals (COM, NO, and NC) are removed using a screw terminal. It also includes an LED to indicate the status of the relay.

FEATURES

• 5VDC two channels relay interface board
• From our tests, the control signal is 3.3V compatible, yet the VCC needs to be 5VDC. So you can use Raspberry Pi’s GPIO to activate or deactivate the relay.
• Active Low configuration
• Signal Indicator LED for each Relay
• Relay Maximum Current Rating: 10A
• Relay Maximum Voltage Rating: AC 250V / DC 30V
• Can control various appliances with large currents and high-voltage
• Can be controlled directly by microcontrollers such as Arduino, 8051, AVR, PIC, DSP and ARM
• Build-in 2 units of Opto-Isolator IC 817C

SHIPPING LIST

• 1 x 2 Channel 5V Active Low Relay Module
