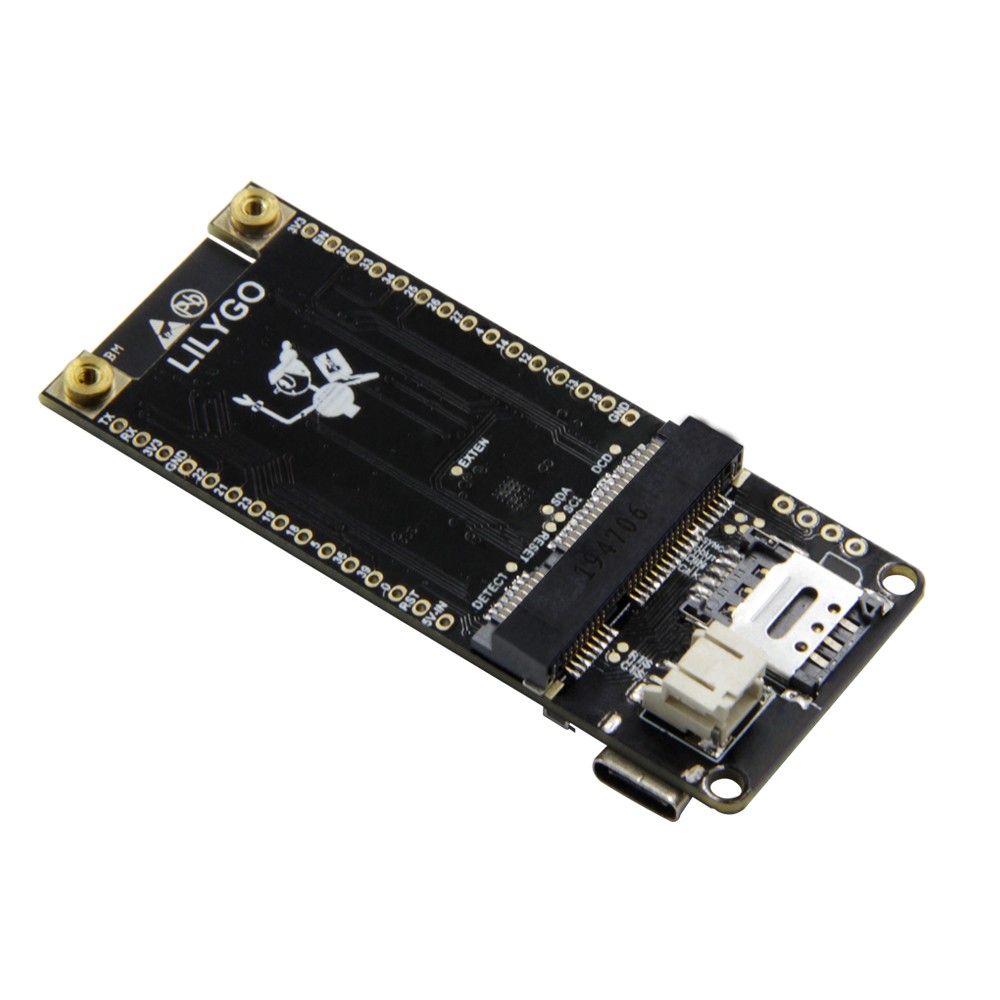

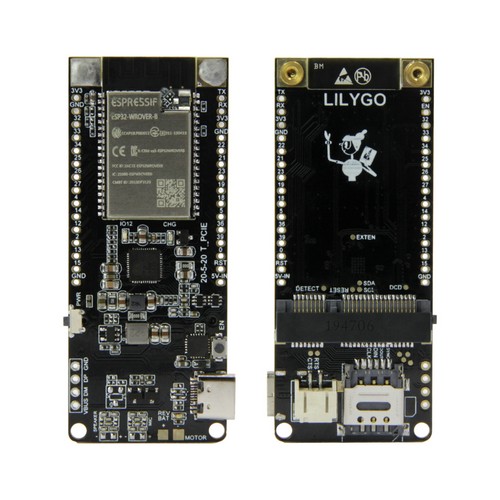

TTGO T-PCIe ESP32 Development Board with PCIe Slot and Power Management IC

RM60.00

In Stock
  • Free Shipping Total Purchase > RM150
    T&C
  • Cash Back 1% of Total Purchase
    T&C
Services:
  • 30 Days Return Policy
  • 1 Year Warranty
  • Refund Policy
Compare
SKU: MYP-TGO-010 Categories: ,
Description

SPECIFICATIONS

  • Chipset: ESP32-WROVER-B,AXP192 Power Management Chip
  • FLASH: 4MB
  • PSRAM: 8MB
  • SRAM: 520 kB SRAM
  • Button: PWR Power Switch,Reset
  • USB to TTL: CP2104
  • On-board clock: 40MHz crystal oscillator
  • Peripherals: SIM Nano Card Slot,Mini PCIE Card Slot
  • Antenna: Onboard antenna(Default)
  • Working voltage: 2.7V-3.6V
  • Sleep current: About 700ma
  • Working temperature range: -40℃ ~ +85℃
  • Size: 75*33*10.5mm
  • Weight: 14.5g

Power Supply

  • Power Supply Input: USB 5V/1A
  • Charging current: 500mA
  • Battery Input: 3.7-4.2V
  • Charge IC: AXP192
  • JST Connector: 2Pin 2.0mm
  • USB: Type-C

WIFI

  • Standard: FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC (ESP32 Chip)
  • Protocol: 802.11 b/g/n(802.11n,speed up to150Mbps)A-MPDU and A-MSDU polymerization,support 0.4μS Protection interval
  • Frequency range: 2.4GHz~2.5GHz(2400M~2483.5M)
  • Transmit Power: 22dBm
  • Communication distance: 300m

Bluetooth

  • Protocol: Meet bluetooth v4.2BR/EDR and BLE standard
  • Radio frequency: With -97dBm sensitivity NZIF receiver Class-1,Class-2&Class-3 emitter AFH
  • Audio frequency: CVSD&SBC audio frequency
  • Wi-Fi Mode: Station/SoftAP/SoftAP+Station/P2P
  • Security mechanism: WPA/WPA2/WPA2-Enterprise/WPS
  • Encryption Type: AES/RSA/ECC/SHA
  • Firmware upgrade: UART download/OTA(Through network/host to download and write firmware)
  • Software Development: Support cloud server development /SDK for user firmware development
  • Networking protocol: IPv4、IPv6、SSL、TCP/UDP/HTTP/FTP/MQTT
  • User Configuration: AT + Instruction set, cloud server, android/iOSapp
  • OS: FreeRTOS



Product Pin

6引脚图



Product Size

H441尺寸图



DOCUMENTATIONS

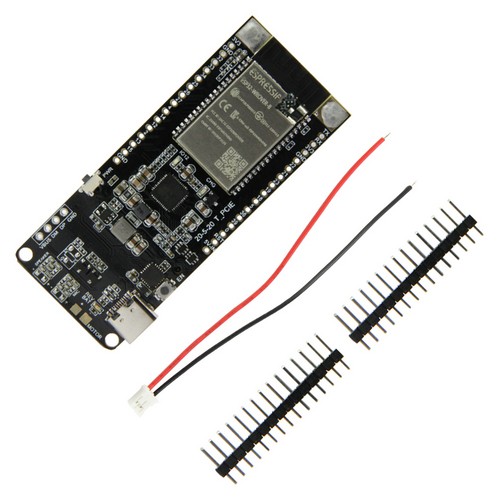

SHIPPING LIST

  • 1 X T-PCIE
  • 1 X Charging Cable
  • 2 X Pin
