TTGO T-Display ESP32 Development Board with 1.14″ IPS LCD

RM83.00

Sorry, will re-stock soon.
  • Free Shipping Total Purchase > RM150
    T&C
  • Cash Back 1% of Total Purchase
    T&C
Services:
  • 30 Days Return Policy
  • 1 Year Warranty
  • Refund Policy
Highlights:
  • ESP32 WiFi & Bluetooth
  • 1.14″ IPS LCD
  • USB Type-C
Compare
Description

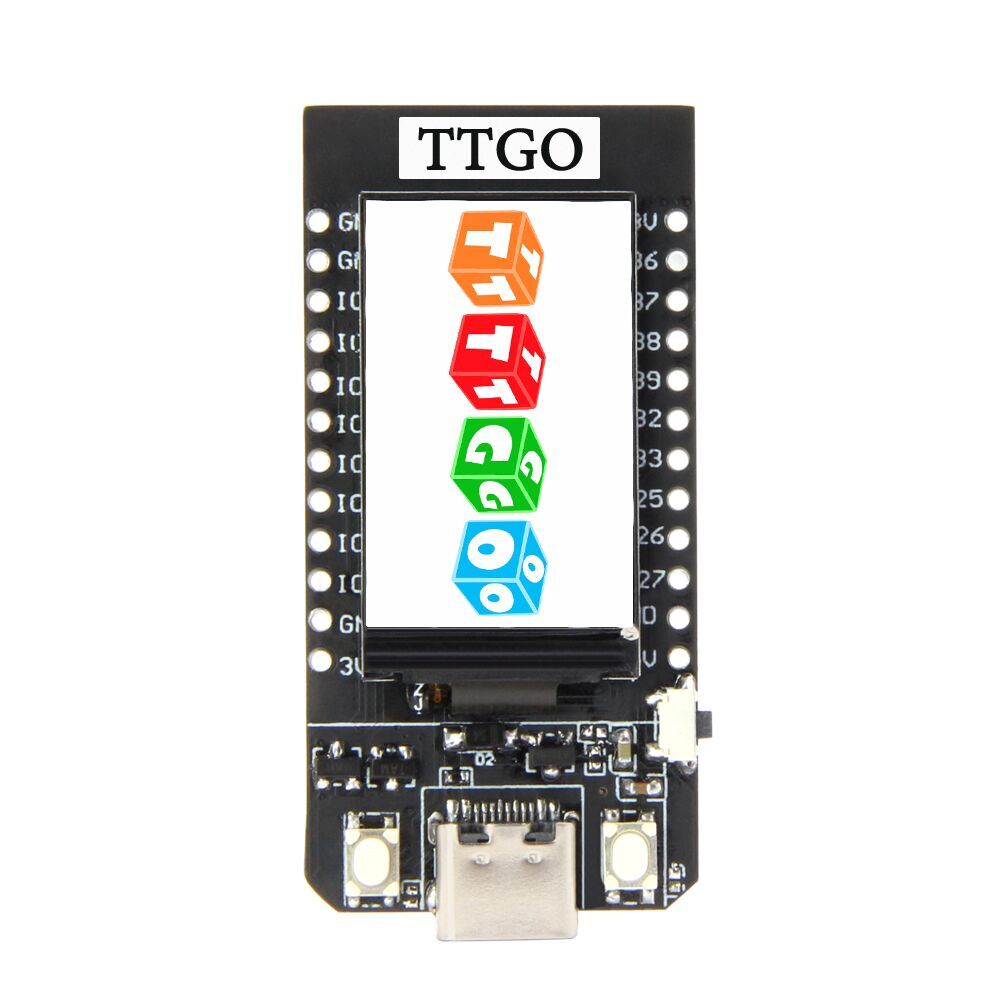

TTGO T-Display is an ESP32 development board readily interfaced with beautiful 1.14″ IPS LCD 65K rich colour display, clear 135X240 resolution. The on-board IPS display makes our development faster to display or visualize any information from the controller or from the sensors.

You can use 3.7V LiPo battery to power up the board. When the batteries goes out, no need to use external LiPo battery charger, which the best part is this board comes with on-board charging circuit.

Get to know TTGO T-Display better on the video below, credit to Retro Tech & Electronics YouTube channel.

SPECIFICATIONS

  • Chipset ESPRESSIF-ESP32 240MHz Xtensa® single-/dual-core 32-bit LX6 microprocessor
  • FLASH QSPI flash 4MB
  • SRAM 520 kB SRAM
  • Button Reset
  • USB to TTL Silicon Labs CP2104
  • Modular interface UART, SPI, SDIO, I2C, LED PWM, TV PWM, I2S, IRGPIO, ADC, Capacitive Touch Sensor, DACLNA Pre-Amplifier
  • Display IPS ST7789V 1.14 Inch
  • Working voltage 2.7V-4.2V
  • Working current About 67MA
  • Sleep current About 350uA
  • Working temperature range -40℃ ~ +85℃
  • Size & Weight 51.49mmx25.09mm (7.81g)
  • Power Supply Specifications
  • Power Supply USB 5V/1A
  • Charging current 500mA
  • Battery 3.7V lithium battery
  • JST Connector 2Pin 1.25mm
  • USB Type-C

Wi-Fi

  • Standard FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC(ESP32 chip)
  • Protocol 802.11 b/g/n (802.11n,speed up to150Mbps) A-MPDU and A-MSDU polymerization,support 0.4μS Protection interval
  • Frequency range 2.4GHz~2.5GHz(2400M~2483.5M)
  • Transmit Power 22dBm
  • Communication distance approximately 300m

Bluetooth

  • Protocol Meet bluetooth v4.2BR/EDR and BLE standard
  • Radio frequency With -97dBm sensitivity NZIF receiver Class-1, Class-2 & Class-3 emitter AFH Audio frequency CVSD&SBC audio frequency

Software Specifications

  • Wi-Fi Mode Station/SoftAP/SoftAP+Station/P2P
  • Security mechanism WPA/WPA2/WPA2-Enterprise/WPS
  • Encryption Type AES/RSA/ECC/SHA
  • Firmware upgrade UART download/OTA(Through network/host to download and write firmware)
  • Software Development Support cloud server development /SDK for user firmware development
  • Networking protocol IPv4, IPv6, SSL, TCP/UDP/HTTP/FTP/MQTT
  • User Configuration AT + Instruction set, cloud server, android/iOSapp
  • OS FreeRTOS

Board Pin Diagram

enter image description here

Board Dimension

enter image description here

DOCUMENTATIONS

SHIPPING LIST

  • 1x TTGO T-Display ESP32 Development Board with 1.14″ IPS LCD
