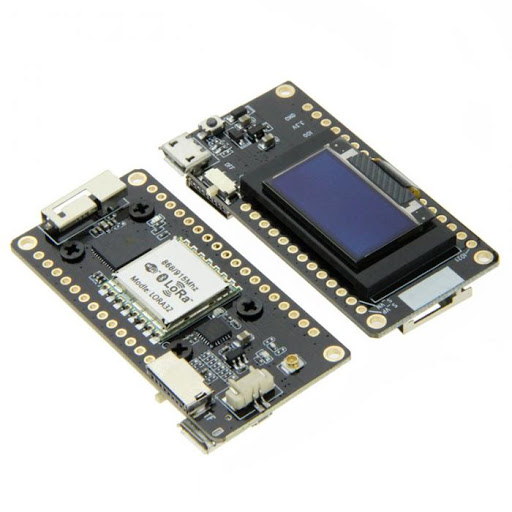

TTGO LORA32 ESP32 LoRa 915MHz SX1276 Development Board with 0.96″ OLED and microSD Card Slot

SPECIFICATIONS

• Working voltage: 1.8~3.7v
• Acceptable current: 10~14mA
• Transmit current:
  • 120mA@+20dBm
  •  90mA@+17dBm
  • 29mA@+13dBm
• Operating frequency: 433/470MHz(433HMz version) / 868M/915M(868MHz Version)
• Transmit power: +20dBm
• Receive sensitivity:
  • -139dBm@LoRa &62.5Khz&SF=12&146bps
  • -136dBm@LoRa &125Khz&SF=12&293bps
  • -118dBm@LoRa &125Khz&SF=6&9380bps
  • -123dBm@FSK&5Khz&1.2Kbps
• Frequency error：+/-15KHz
• FIFO space: 64Byte
• Data rate:
  • 1.2K~300Kbps@FSK
  • 0.018K~37.5Kbps@LoRa
• Modulation Mode: FSK,GFSK,MSK,GMSK,LoRa TM，OOK
• Interface form: SPI
• Sleep current:
  • 0.2uA@SLEEP
  • 1.5uA@IDLE
• Operating temperature: -40℃- +85℃
• Digital RSSI function
• Automatic frequency correction
• Automatic gain control
• RF wake-up function
• Fast wake-up and frequency hopping
• Highly configurable data packet handler

PIN DIAGRAM

DOCUMENTATIONS

• Github
• Github

SHIPPING LIST

• 1 x TTGO LORA32 ESP32 LoRa 915MHz Development Board with 0.96″ OLED and microSD Card Slot
• 1 x 915MHz Antenna
