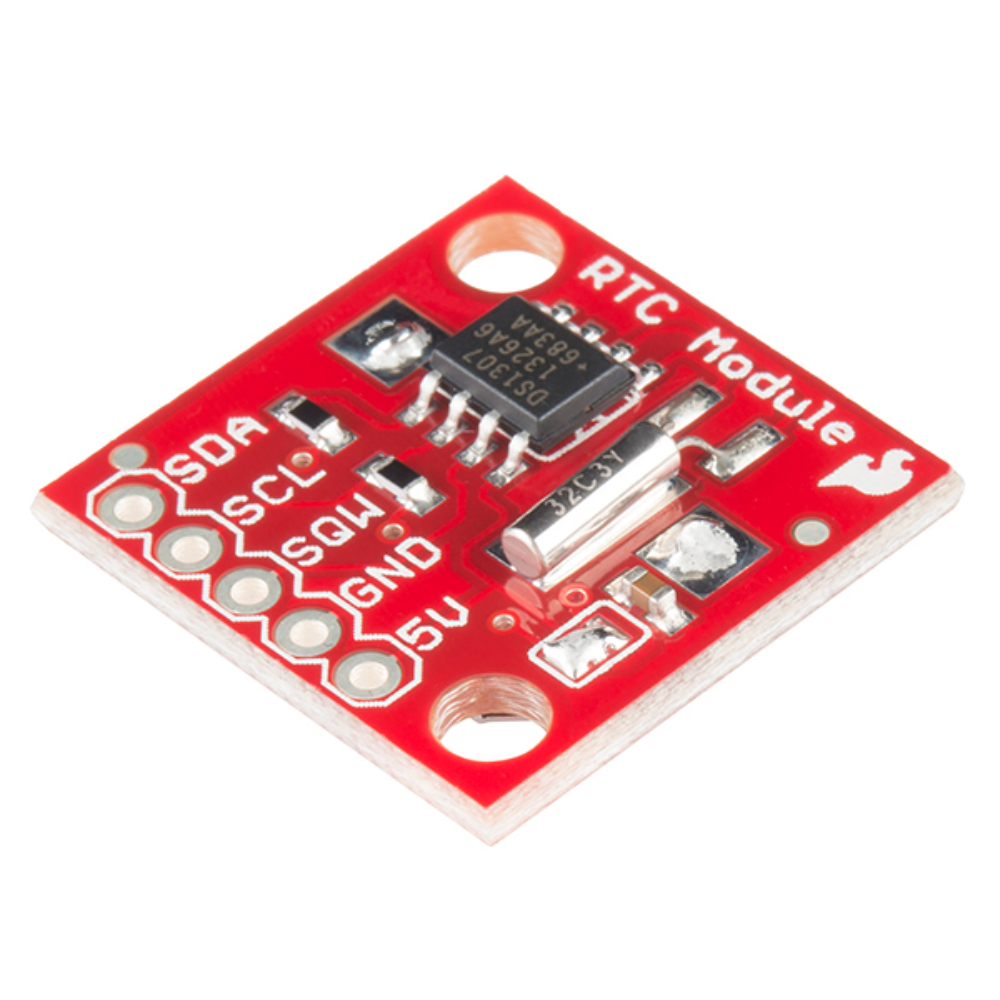

Real Time Clock Module

This a custom designed module for the DS1307 Real Time Clock. The module comes fully assembled and pre-programmed with the current time (ok, so it’s our current time – MST). The included Lithium coin cell battery (CR1225 41mAh) will run the module for a minimum of 9 years (17 years typical) without external 5V power. The DS1307 is accessed via the I2C protocol. We’ve written a test-bed to program the modules. This test-bed code should give you some insight on how to interface the module to any microcontroller using our example software I2C and BCD routines.

SPECIFICATIONS

• Two wire I2C interface
• Hour : Minutes : Seconds AM/PM
• Day Month, Date – Year
• Leap year compensation
• Accurate calendar up to year 2100
• Battery backup included
• 1Hz output pin
• 56 Bytes of Non-volatile memory available to user
• Dimensions: 0.75×0.75″ (20x20mm)

DOCUMENTATIONS

• RTC Module Schematic
• RTC Module Dimensional Drawing
• DS1307 Datasheet
• Wiring Example

SOFTWARE

• Example 16F88 code
• Arduino Tutorial
• Bildr Tutorial

SHIPPING LIST

• 1 x Real Time Clock Module
