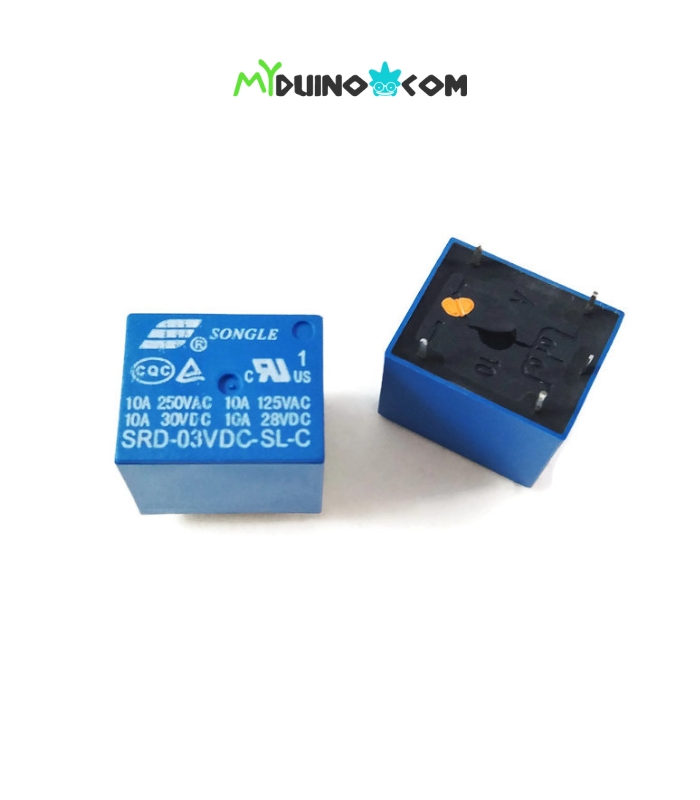

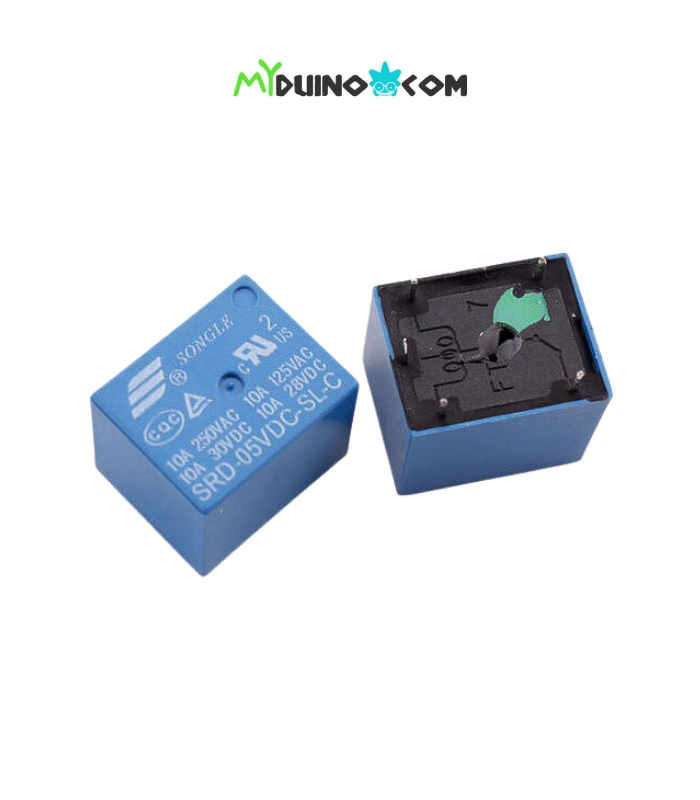

A 3V/5V SPDT Relay, rated for 250VAC and 10A, is an electrical switch capable of controlling high-voltage and high-current loads with the convenience of low-voltage input control. This Single Pole Double Throw (SPDT) relay offers a flexible, single-circuit switching solution. It can be triggered by a 3V or 5V signal, making it suitable for various electronic applications, from home automation to industrial systems, where it can efficiently control and switch between two different electrical paths. The 250VAC and 10A ratings indicate its capacity to handle up to 250 volts of alternating current at a maximum of 10 amperes, making it a versatile component for a wide range of projects requiring robust switching capabilities.

SPECIFICATIONS

• Type: Electromagnetic Relay
• Protect Feature: Sealed
• Power Source: DC
• Contact Load: Low Power
• Coil Rated Voltage: 3VDC / 5VDC
• Coil Rated Power: 720mW
• Contact Rated AC Voltage: 250VAC
• Contact Rated DC Voltage: 30VDC
• Contact Rated Current: 10A
• Minimum Recommended Contact Load: 100mA
• Coil Current: 120mA (3V), 71.4mA (5V)
• Initial Contact Resistance: 100mOhm at 1A, 6VDC
• Contact Material: AgSnO
• Dimension: 19.2mm x 15.4mm x 19.2mm

• 1 x 3V/5V SPDT Relay 250VAC 10A
