Milesight VS121, is an AI workplace sensor designed to monitor occupancy and utilization in modern workspace, which can reach up to 98% recognition rate based on its AI algorithm. Milesight VS121 has dual versions transmitting data through LoRaWAN® or Ethernet for different applications.
Based on standard LoRaWAN® protocol, VS121 can work with Milesight LoRaWAN® gateway and mainstream LoRaWAN® network servers. They are equipped with Wi-Fi for easy configuration without any configuration tools.
With Ethernet transmission, VS121-P is available to provide more applications. Rich serial interfaces such as DI, DO, and RS485 are provided in VS121-P for various scenarios. VS121-P supports data push via HTTP for easily integration and allows for remote management via Milesight DeviceHub.
- Recognition rate is up to 98% based on advanced AI identification and analysis technologies
- Support both region people counting and region occupancy detection
- Support up to 16 mapped regions for detection
- Allow for bi-directional line-crossing people counting
- Smart U-turn counting to filter redundant counting of people wandering around the area
- Support normal or blur mode and privacy masks up to 8 regions
LoRaWAN® Version Only
- Compliant with GDPR without images collected, free from privacy concerns
- Equipped with Wi-Fi for web GUI configuration
- Support Milesight D2D protocol to enable ultra-low latency and directly control without gateway
- Function well with standard LoRaWAN® gateways and network server
PoE Version Only
- Support scheduled detection
- Support Milesight DeviceHub management remotely
- Adapt to more applications with rich industrial interfaces
- DC or PoE power supply optional
- Support transmitting people counting and occupancy data via HTTP Post
LoRaWAN® and PoE Versions, Flexible and Broad Applications
- Ideal for privacy demanding scenarios
- Low power consumption
- Easy and wireless deployment
- Long distance transmission
- Ideal for scenarios requiring rich image
- Ethernet transmission
- PoE power supply
- Schedule setting
- Low power consumption
- Strong penetrating capacity
- Easy configuration via Wi-Fi
- Rich information display
- Long distance monitoring
- Easy configuration via Ethernet
100% Anonymous Detection
- Compliant with GDPR
- No PII information with only data transmission
User-Friendly Privacy Performance
- Versatile user-friendly privacy modes
- Real-time video stream for more applications
Higher Ceiling Mount

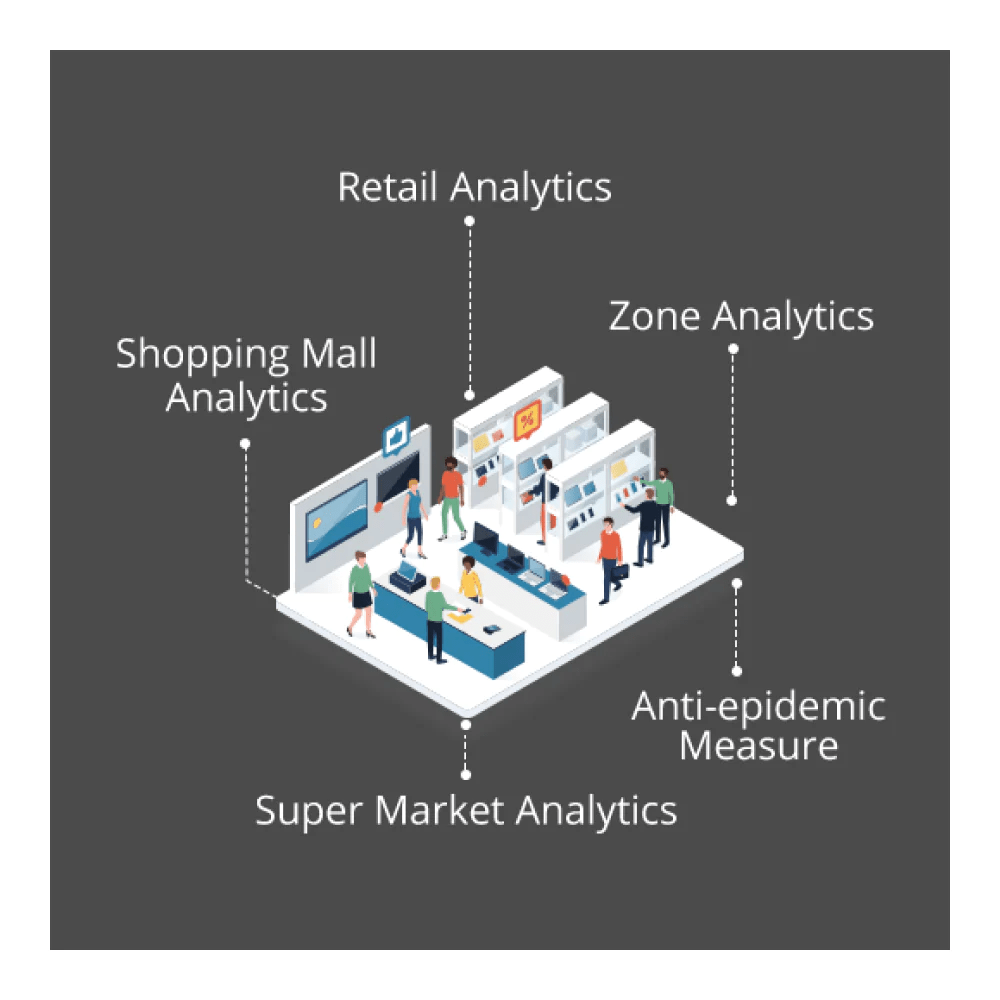

Breaking the barrier of the limited installation, the optional higher ceiling mount version is available to be deployed in a height of up to 7m. It is ideal for high ceiling applications like retail stores and shopping centers, bringing flexible scenario-adaptability to enhance practicability.
Up to 98% High Accuracy
Embedded AI algorithm, AI Workplace Occupancy Sensor is able to accurately realize counting. The accuracy gets enhanced with continuous deep learning.
Smart U-Turn Detection
By detecting the U-shape tracks of people flow, the sensor’s accuracy is guaranteed to avoid unnecessary people counting. For example, it filters out redundant counting of people wandering the area, especially in retail stores or buildings, to differentiate people who don’t truly enter retail stores or buildings.
Large Detection Area
Installed at the recommended 3 meters height, the sensor covers a wide area of 78 square meters. It is on top of the workplaces for not letting any place hide away.
16 Custom Detection Regions
Up to 16 customized regions can be set for precise detection. Every region is independent. They are able to detect and trigger alarms individually, which satisfies specific application demands to truly accomplish customization. Moreover, the schedule can be set for more flexible and tailored performance.
Line Crossing People Counting
The line crossing people counting is added for conspicuous performance. Supporting bi-directional counting, the sensor with ultra-high 98% recognition rate gets more accurate and objective information.
Both VS121 and VS121-P are flexible for remote and wider application managements and have great extensibility to be opened to third platforms.
- Long distance management on DeviceHub (VS121-P)
- User-friendly Milesight IoT Cloud management (VS121)
Milesight D2D Communication
The exclusive Milesight LoRa®-based protocol allows VS121 to easily communicate with other Milesight LoRaWAN® devices without the involvement of network infrastructures within 1 second. The facilities like lights can be intelligently switched through the linkage to realize accurate, timely and automatic responses, saving energy for management staff.
Flexible 2 Colors Choices

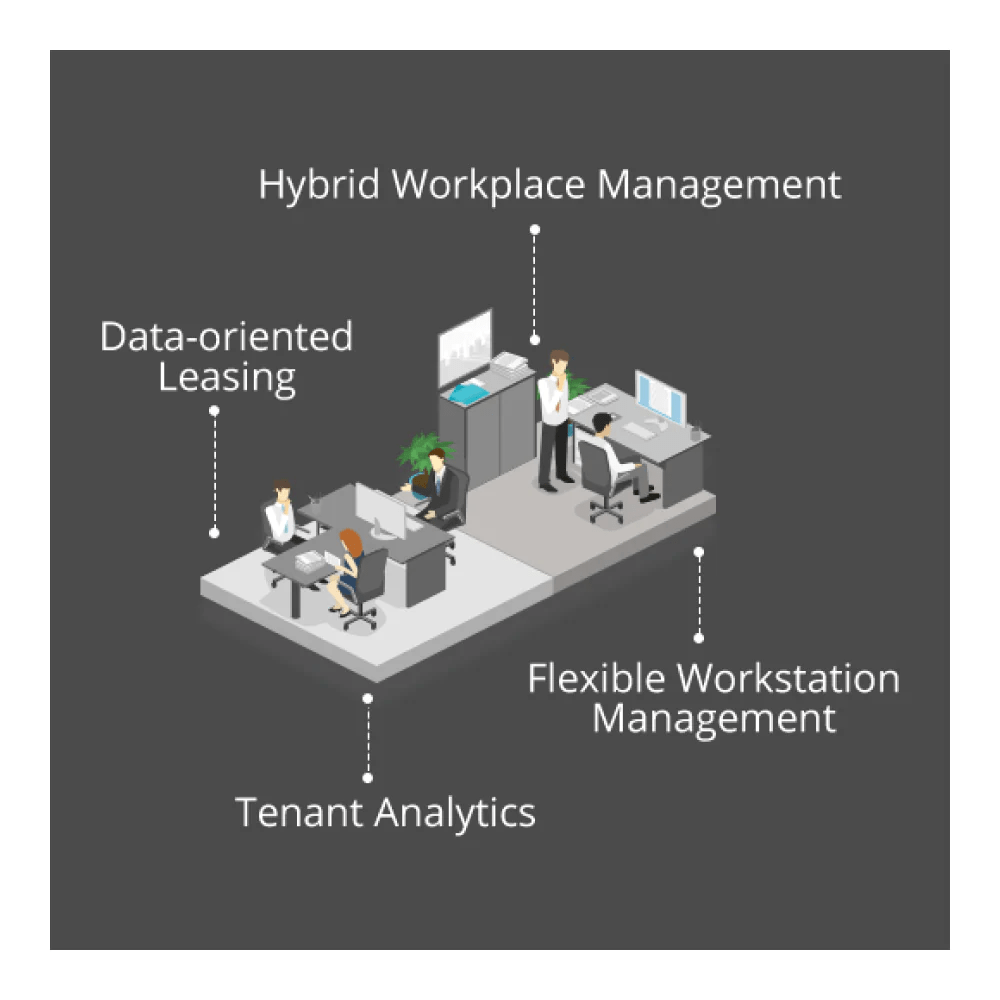

CoWork Solution for Smart Office
Explore the potential of workplace
It provides a series of compelling user
experiences that help people to “interact”
with their workspace in ways that help
them to be more productive and comfortable.
|People Counting||Field of View||Standard Version: 190 ° Horizontal, 112 ° Vertical
High Ceiling Mount Version: 129.4 ° Horizontal, 68.4 ° Vertical
|Recognition Range||Standard Version: a Radius of 5 Meters, At the Height of 3m
High Ceiling Mount Version:18m × 7m, At the Height of 7m
|Installation Height||Standard Version: 2.5m to 4m
High Ceiling Mount Version: 5m to 7m
|Recognition Rate||Region Counting: Up to 95%
Line Crossing Counting: Up to 98%
|Advanced Feature||Mapped Detection Region Customization, Filter U-Turns, Privacy Mask|
|LoRaWAN® Transmission||Protocol||LoRaWAN®, Milesight D2D||—|
|Tx Power||16 dBm (868 MHz)/20 dBm (915 MHz)/19 dBm (470 MHz)||—|
|Sensitivity||-137 dBm @300bps||—|
|Mode||OTAA/ABP Class C||—|
|Ethernet Transmission||Ethernet Port||—||1 × RJ45 10/100 Mbps (PoE PD)|
|Network Protocol||—||HTTP, RTSP, NTP, SSH,etc.|
|Other Interfaces||Wi-Fi||IEEE 802.11 b/g/n, 2.4GHz
(AP Mode for configuration)
|Serial Interface||—||1 × RS485|
|Button||1 × Reset Button,1 × Wi-Fi Button||1 × Reset Button|
|LED Indicators||1 × Wi-Fi||1 × Status|
|Power Input||—||2-pin 3.5 mm Terminal Block|
|Physical Characteristics||Power Supply||5VDC / 1.5A by Type-C Port||1.5VDC / 2A by Terminal Block
|Operating Temperature||-5°C ~ +55°C|
|Storage Temperature||-20°C ~ +60°C|
|Relative Humidity||0 ~ 95% (Non-condensing)|
|Color&Weight||White/Black (Optional), 126.9g||White, 186g|
|Dimension||85 × 85 × 20 mm
(3.35 × 3.35 × 0.79 in)
|85 × 85 × 30 mm
(3.35 × 3.35 × 1.18 in)
|Approvals||Regulatory||CE, FCC, RoHS|
