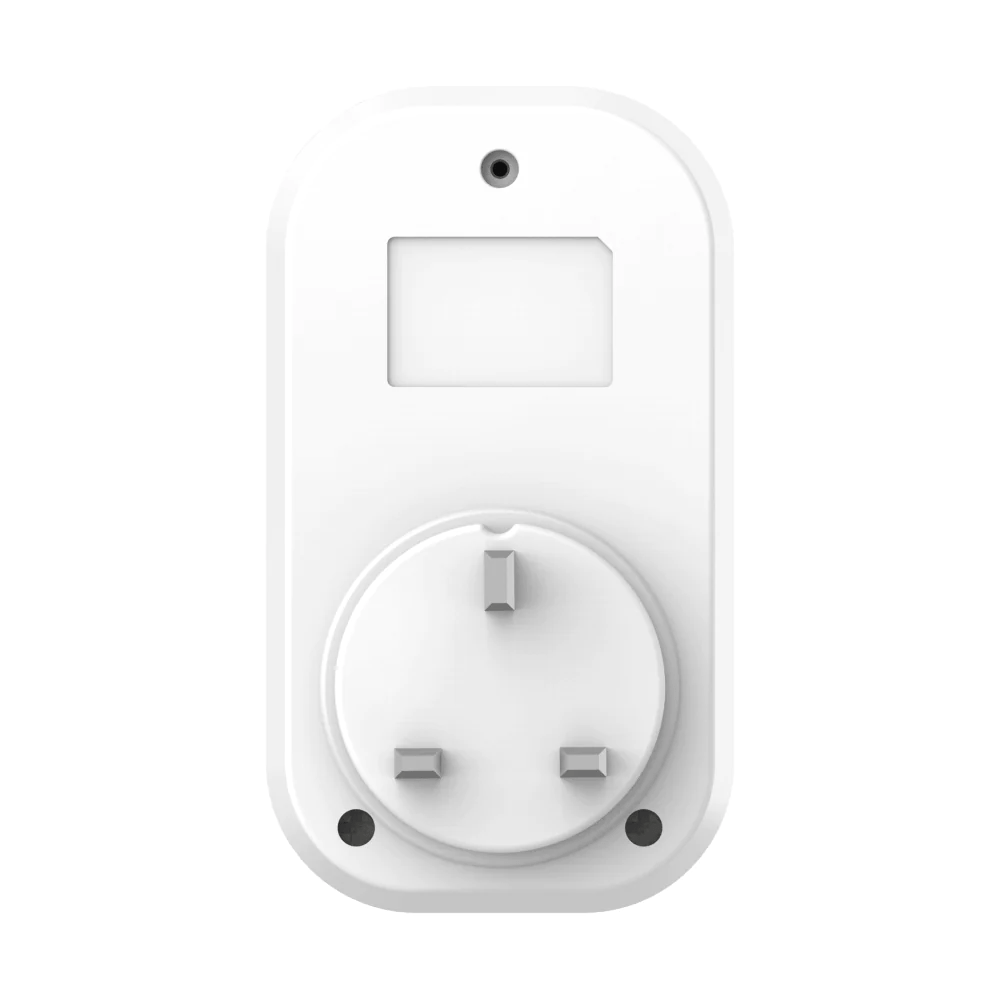

WS523 is a LoRaWAN® smart portable socket for the monitoring and control of electrical appliances. Adopting most of international socket types, WS523 can be used for turning on or off the electrical devices locally or remotely and measuring power consumption data plugged on it and even sending over current alarms. Compliant with Milesight LoRaWAN® gateway and Milesight IoT Cloud solution, WS523 can be monitored and controlled via webpage or mobile App remotely and triggered by other Milesight sensors.
WS523 can be widely used for wireless control of indoor lights, fans, heaters, machines, etc.
Main Features
- Plug and play without any wirings, adopt most of international socket standards
- Turn on/off devices and create timing switch-on/off schedules remotely
- Collect current, voltage, power, electrical consumption and support overload protection
- Equipped with capacitor for power outage alert
- Ultra-wide-distance wireless transmission up to line of sight of 15 km
- Equipped with NFC for one touch configuration, support card emulation mode
- Function well with standard LoRaWAN® gateways and network servers
- Compliant with Milesight IoT Cloud
- Support Milesight D2D protocol to enable ultra-low latency control without gateway
Automate Traditional Electrical Appliances with Ease
Remote ON/OFF
Remotely turn on/off the electrical appliance from your mobile phone
Time-Based ON/OFF
Create schedules to turn the remote appliances on/off automatically
Power Consumption Measurement
The power consumption measurement and flexible schedule settings would help to save power and lower electric bills
Overload Protection
The overload protection prevents connected appliances, safety fuse and the smart socket itself from damage of overcurrent
LoRaWAN®
- Milesight Smart LoRaWAN Portable Socket is compatible with industry-standard LoRaWAN® gateways
- With a range of up to 15 km in rural areas and 2 km in urban areas
Easy to Use
Switching on/off and configuring the device via NFC technology from mobile phone or PC
Specifications
| Wireless Transmission | Technology | LoRaWAN® |
| Frequency | AS923 | |
| Tx Power | 16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz) | |
| Sensitivity | -137 dBm | |
| Mode | OTAA/ABP Class C | |
| Electrical | Socket Type | US/EU/AU/CN, etc. |
| Operating Voltage | 100~250 VAC, 50~60 Hz | |
| Max Load Capacity | 10~16 A (Optional), 250 VAC | |
| Measurement | Voltage (VAC), Current (A), Power Factor (%), Power Meter (kWh) | |
| Software | Configuration | NFC |
| Power Control | Button or Remote Control | |
| Advanced Features | Schedule Switch, Button Lock, Overcurrent Protection/Alarm | |
| Others | LED Indicator | 1 |
| Button | ON/OFF, Reset | |
| Physical Characteristics | Material | Polycarbonate |
| Color | White | |
| Operating Temperature | -10°C to +60°C (14℉ to +140℉) | |
| Relative Humidity | 10% to 90% (non-condensing) | |
| Dimensions | 110 × 62 × 35 mm (4.33 × 2.44 × 1.38 in) |
