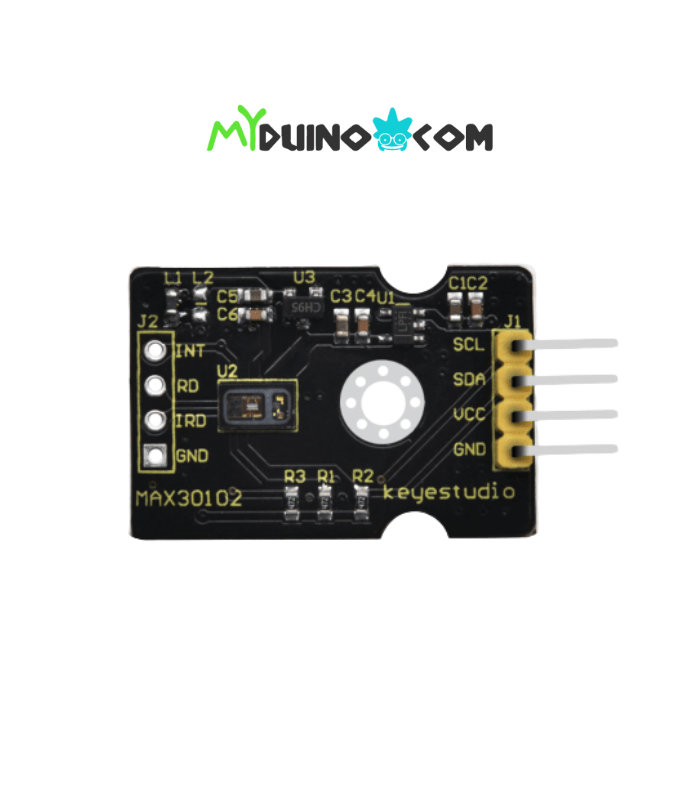

The Keyestudio MAX30102 heart rate sensor integrates a pulse oximeter and a heart rate monitor, and mainly uses the MAX30102EFD component.
It integrates an infrared LED, photodetector, optical components, and low-noise electronic circuitry with ambient light suppression.

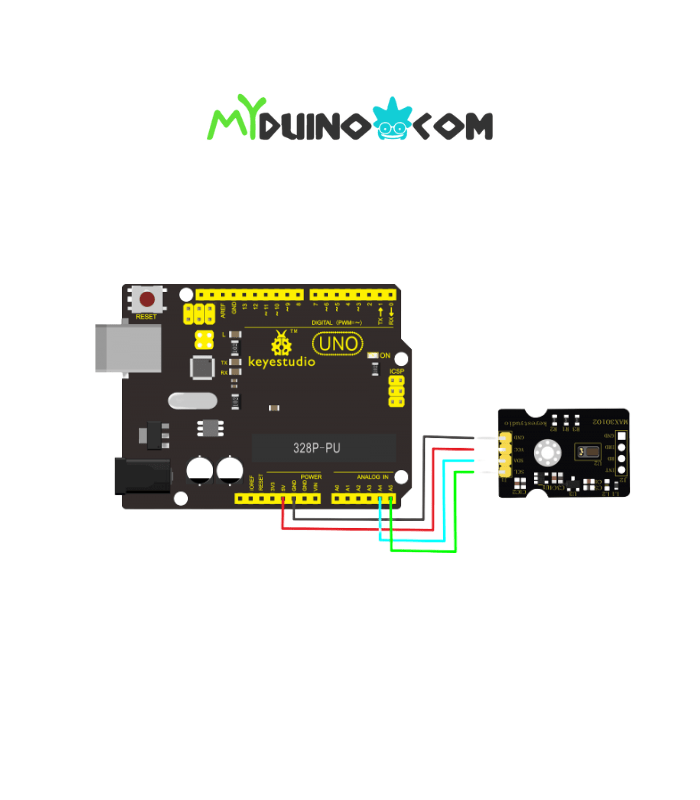

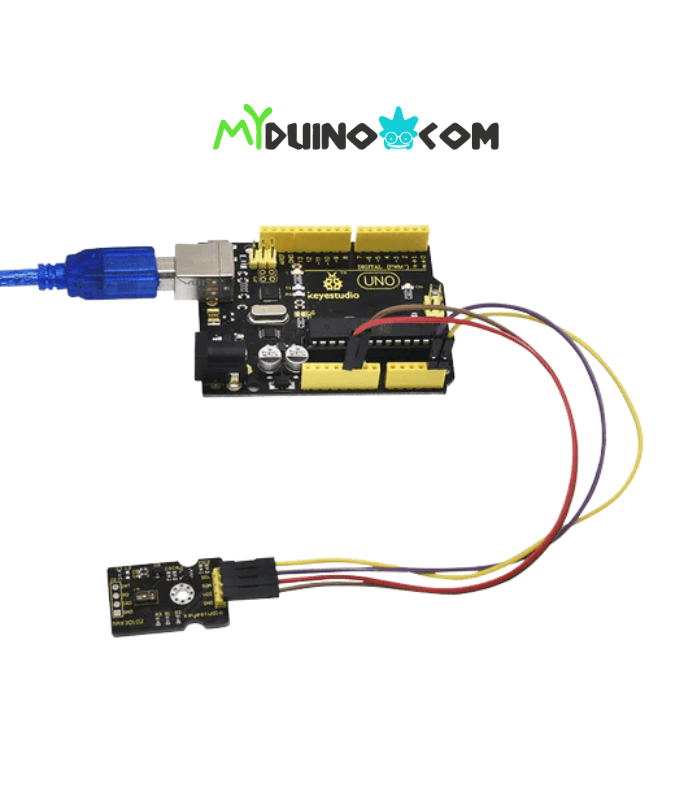

The sensor contains an I2C communication interface.When using it, we use the communication interface to transmit the collected data to the MCU with I2C communication interface, and then calculate the heart rate and blood oxygen.
In order to facilitate the connection of the sensor to other devices, the sensor also comes with a 3mm diameter fixing hole.
It integrates an infrared LED, photodetector, optical components, and low-noise electronic circuitry with ambient light suppression.
The sensor contains an I2C communication interface.When using it, we use the communication interface to transmit the collected data to the MCU with I2C communication interface, and then calculate the heart rate and blood oxygen.
In order to facilitate the connection of the sensor to other devices, the sensor also comes with a 3mm diameter fixing hole.
SPECIFICATIONS
- Working voltage: DC 5V
- Working current: 60mA
- Maximum power: 0.3W
- Operating temperature range: -25°C to +65°C
- Communication interface: I2C communication (4pin pitch is 2.54mm pin)
- Size: 20*36*7mm
- Weight: 2.5g
- Environmental attributes: ROHS
DOCUMENTATIONS
SHIPPING LIST
- 1 x MAX30102 Heart Rate Sensor
