Description

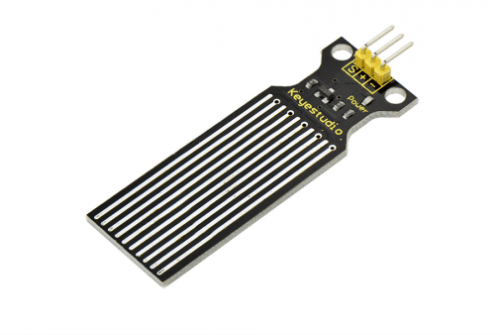

Our water sensor is easy- to-use, portable and cost-effective, designed to identify and detect water level and water drop. This sensor measures the volume of water drop and water quantity through an array of traces of exposed parallel wires. This sensor is not only smaller and smarter but also ingeniously equipped with following features:

  • smooth conversion between water quantity and analog quantity
  • strong flexibility; this sensor outputs basic analog value
  • low power consumption and high sensitivity
  • directly connected to microprocessor or other logic circuits, suitable for a variety of development boards and controllers such as Arduino controller, single-chip microcomputer, etc.

SPECIFICATION

  • Operating voltage: DC5V
  • Operating current: ﹤20mA
  • Sensor type: Analog
  • Detection area: 40mm x16mm
  • Production process: FR4 double-side tinned
  • Humanized design: Anti-slippery semi-lunar recess
  • Working Temperature: 10℃-30℃
  • Working Humidity: 10%-90% without condensation

DOCUMENTATIONS

SHIPPING LIST

  • 1 x Water Sensor for Arduino
