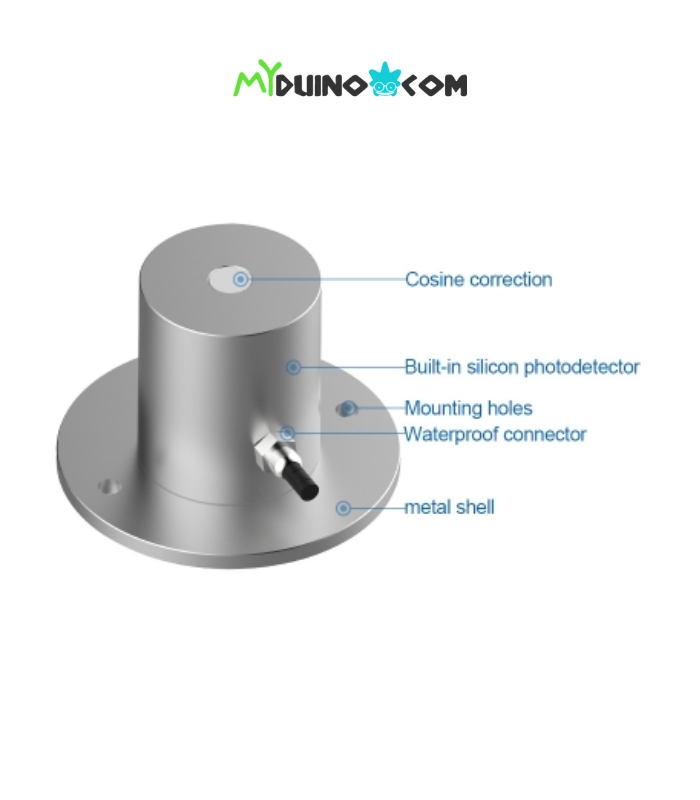

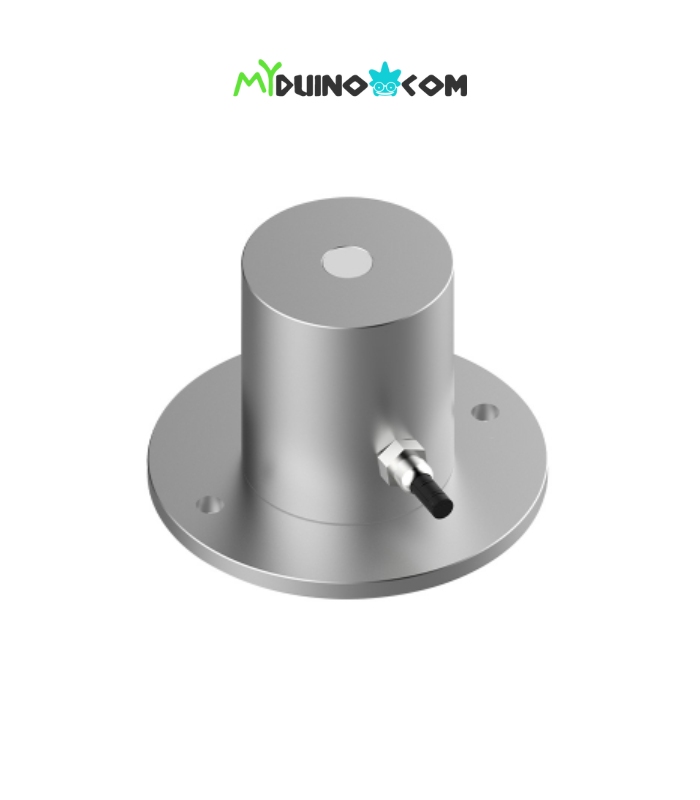

RS485 Photosynthetically Active Radiation Sensor Output

RM850.00

Hurry, only 2 left.
Compare
SKU: MYP-JXC-018 Categories: , ,
Description

The primary purpose of a photosynthetically active radiation (PAR) sensor is to measure solar radiation at wavelengths between 400 and 700 nm. It is simple to install and capable of operating constantly in any weather. extensively utilized in fields such as crop growth studies, agricultural meteorology, and others.

 FEATURES

  • Metal construction
  • Harsh environment workable
  • High sensitivity
  • No power supply measurement
  • Compact size for easy use

SPECIFICATION

Power supply 9-24V DC
Power ≤0.15W
Range 0-2000W/m2
Spectral range 400-700nm
Resolution 1W/m2
Output singal RS485/4-20mA/0-5V/0-10V
Working environment -45℃~85℃  0~100%RH
Response time ≤5s
Cosine correction Up to 80° Angle of incidence

JXCT-IoT

JXCT-IoT

WIRING INSTRUCTION

SHIPPING LIST

  • 1 x RS485 Photosynthetically Active Radiation Sensor Output
