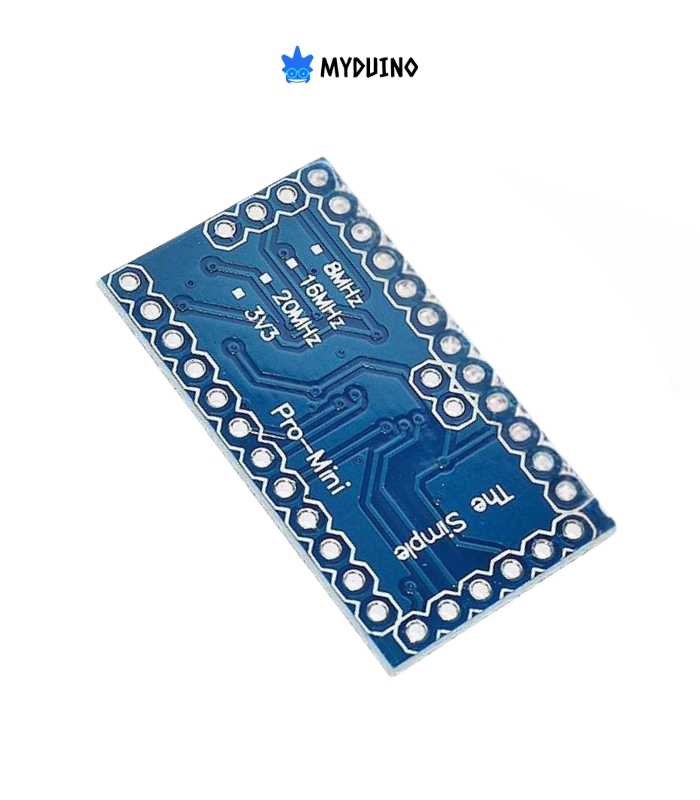

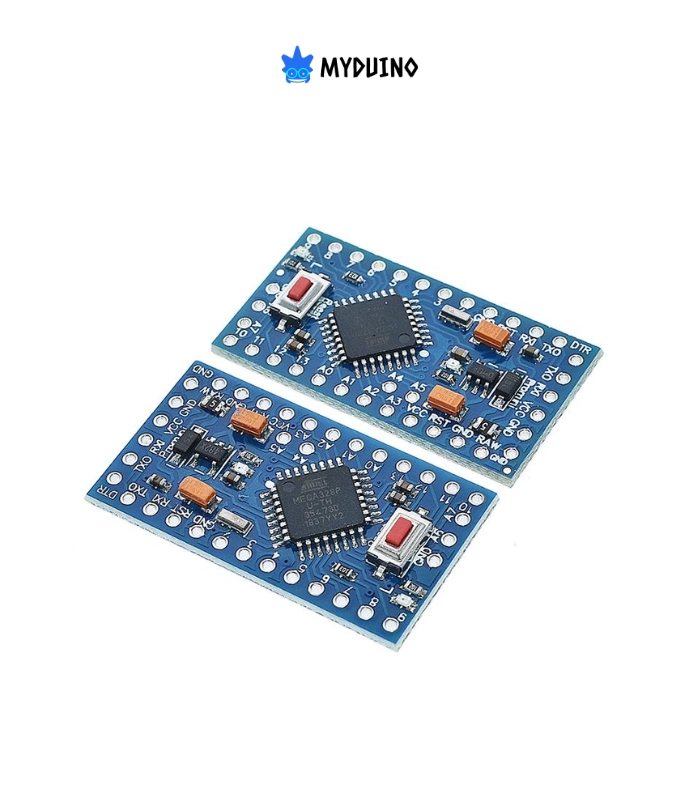

The Arduino Pro Mini is a microcontroller board based on the ATmega328p. It has 14 digital input/output pins (6 can be used as PWM outputs), 6 analogue inputs, an on-board resonator, a reset button, and holes for mounting pin headers. A six-pin header can be connected to a USB to serial adapter to provide USB power and communication to the board.

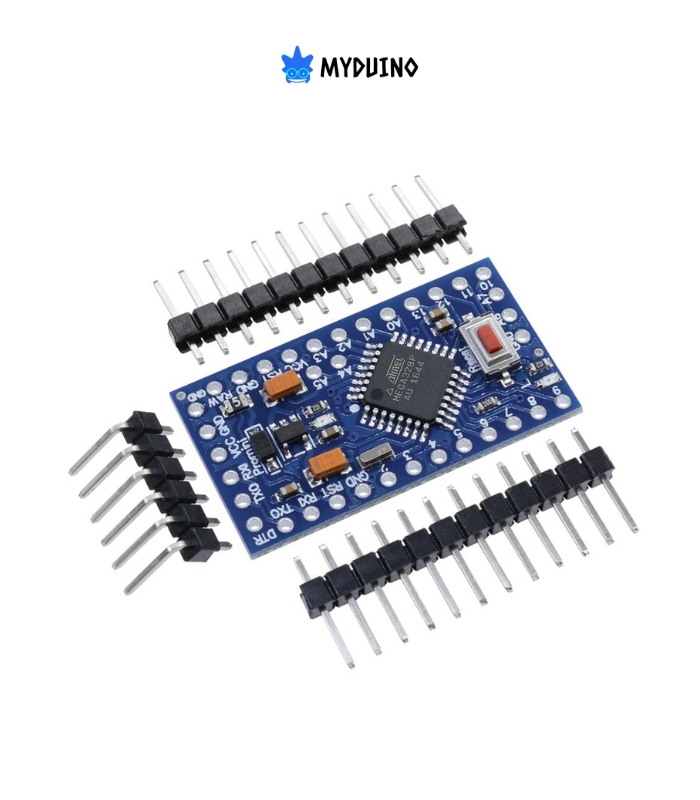

The Arduino Pro Mini is intended for semi-permanent installation in objects or exhibitions. The board comes without pre-mounted headers, allowing the use of various types of connectors or direct soldering of wires. The pin layout is compatible with the Arduino Mini.
SPECIFICATIONS
- Microcontroller: ATmega328
- Logic voltage: 3.3V
- Clock speed: 8MHz or 16Mhz (depending on version)
- Supports auto-reset
- 5V regulator
- Max 150mA output
- Over current protected
- DC input 5V up to 12V
- Onboard Power and Status LEDs
- Analog Pins: 8
- Digital I/Os: 14
DOCUMENT
SHIPPING LIST
- 1 x Arduino Pro Mini ATMEGA328P 3.3v 8mhz
