High Accuracy I2C DS3231 Real Time Clock Module with 32Kbit EEPROM and built-in 10-bit temperature sensor having a resolution of 0.25C. The DS3231 is a low-cost, extremely accurate I²C real-time clock (RTC) with an integrated temperature-compensated crystal oscillator (TCXO) and crystal. The device incorporates a battery input and maintains accurate timekeeping when the main power to the device is interrupted. The integration of the crystal resonator enhances the long-term accuracy of the device as well as reduces the piece-part count in a manufacturing line. The DS3231 is available in commercial and industrial temperature ranges and is offered in a 16-pin, 300-mil SO package.
APPLICATIONS
- Telematics
- Servers
- Global Positioning Systems (GPS)
- Utility Power Meters
SPECIFICATIONS
- I2C interface : Fast (400kHz) I2C Interface
- EEPROM: AT24C32 32Kbit Serial I2C
- Digital Temp Sensor Output: 10 bit, ±3°C Accuracy and 0.25C resolution
- Time Format: HH:MM: SS (12/24 hr)
- Date Format: YY-MM-DD-dd
- Accuracy ±2ppm from 0°C to +40°C
- Accuracy ±3.5ppm from -40°C to +85°C
- 1Hz output pin SQW
- 32KHz output pin 32K
- Voltage Supply Battery: 2.2V – 5.5V (for RTC)
- Operating Voltage: (VCC): 2.7V – 5.5V (including 24C32)
- Operating Temperature Ranges: Commercial (0°C to +70°C) and Industrial (-40°C to +85°C)
- Battery Holder: 2032 Coin Battery
- Weight:8g (including Battery)
DOCUMENTS
SHIPPING LIST

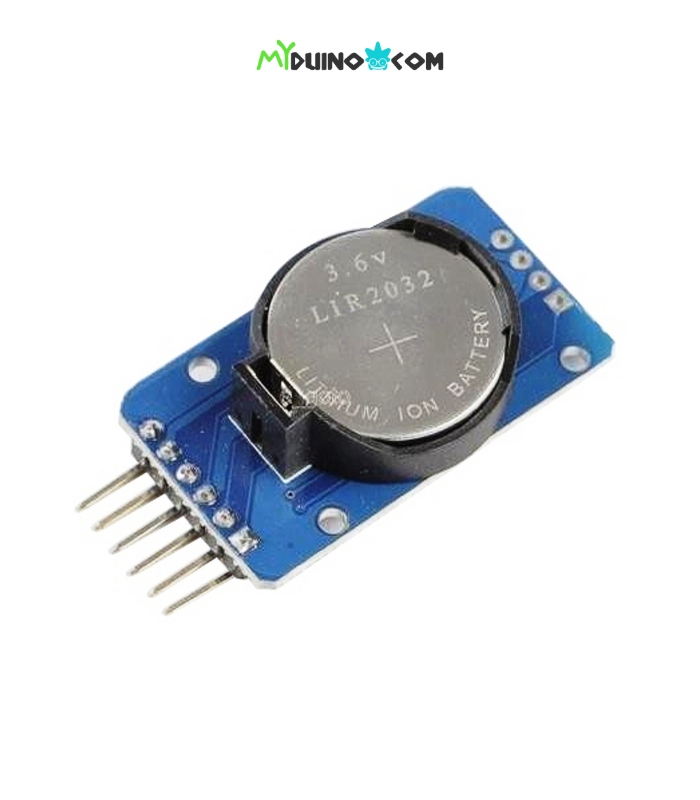

- 1 x DS3231 AT24C32 IIC Module Precision Clock Module With Battery
