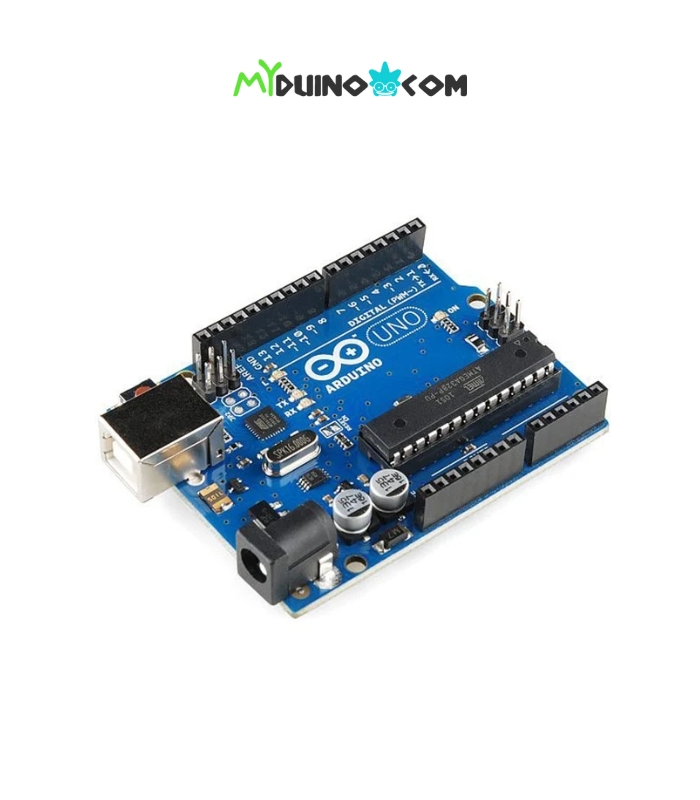

The Arduino Uno is a microcontroller board with 14 digital input/output pins (6 of which can produce PWM), 6 analogue inputs, and a USB connection. It is compatible with the original UNO R3 and can be directly replaced. It uses the Atmega16U2 chip, which is programmed as a USB-to-serial converter, and has a stronger RESET circuit. Additionally, the board has two new pins, the IOREF pins, which allow the shields to adapt to the voltage provided by the board.

SPECIFICATIONS

• Operating Voltage: 5V
• Input Voltage (recommended): 7-12V
• Input Voltage (limits): 6-20V
• Digital I/O Pins: 14 (of which 6 provide PWM output)
• Analog Input Pins: 6
• DC Current per I/O Pin: 40 mA
• DC Current for 3.3V Pin: 50 mA
• Flash Memory: 32 KB (ATmega328) of which 0.5 KB is used by the bootloader
• SRAM: 2 KB (ATmega328)
• EEPROM: 1 KB (ATmega328)
• Clock Speed: 16 MHz

PINOUT

DOCUMENT

• Tutorial

DOWNLOADS

• Download Arduino IDE

SHIPPING LIST

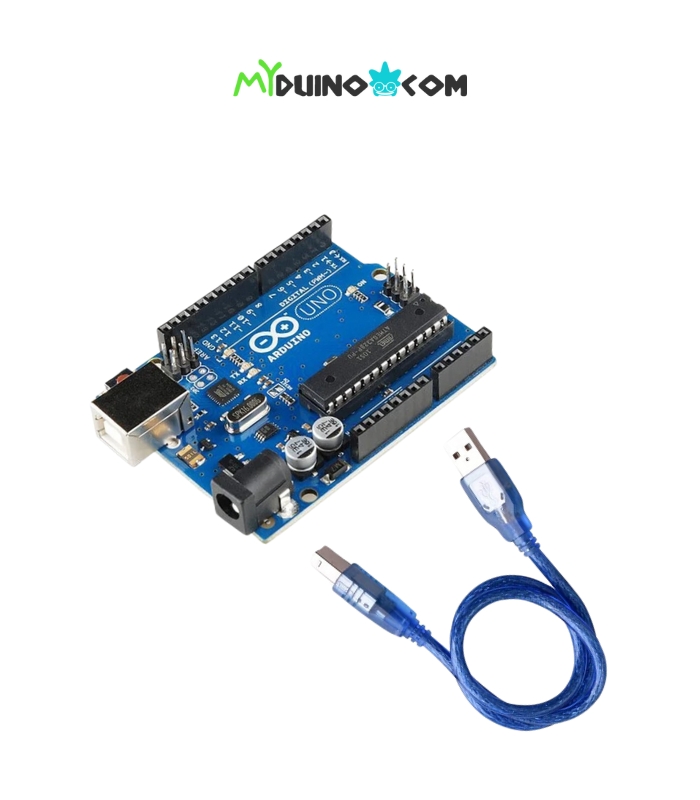

• 1 x Arduino UNO Compatible board
• 1 x USB B type USB cable (1m)
