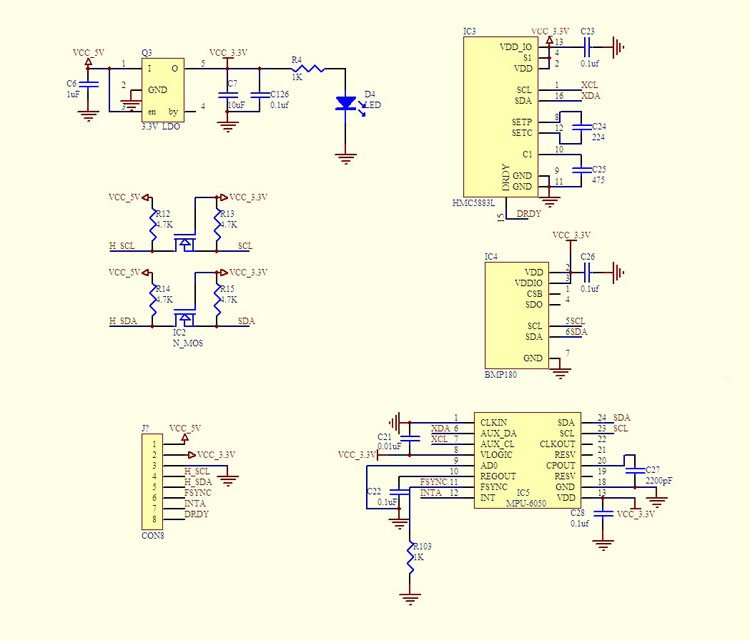

The HW-290/GY-87 10DOF MPU6050+HMC5883L+BMP180 3-axis Gyro + 3-axis Acceleration + 3-axis Magnetic Field + Air Pressure Sensor combines three sensors into one: the MPU6050 3x Axis Accelerometer and 3x Axis Gyroscope sensor, the HMC5883L Triple Axis Magnetometer, and the BMP180 Barometric Pressure Sensor. It has an ultra-low noise linear LDO voltage regulator built in, as well as onboard filters that decrease noise from the motor and other high-current electronics. All sensors are linked to the 12C bus, and you may simply pick two 12C addresses for the MPU6050 using a soldered jumper, a power LED, and a logic level converter for 12C.
APPLICATIONS
- FPV, RC, and Robots systems
- GPS navigation systems
- Impact recognition and logging
- Gaming and virtual reality input devices
- Motion-activated functions
- Intelligent power saving for handheld devices
- Vibration monitoring and compensation
- Free-fall detection
- 6D-orientation detection
FEATURES
- 3-axis magnetic electronic compass
- Precise heading information
- Fits into small projects easily
- 12C communication
- HMC5883L chip
- Operating Voltage: 3V-5V DC
- Chipset HMC5883L
- Communication: 12C protocol
- Measuring range: ± 1.3-8 Gauss
SPECIFICATION
- Type: GY-87
- Driver IC: MPU6050+HMC5883L+BMP180
- Operating Voltage (VDC): 3~5
- Gyro range(°/s): 250, 500, 1000, 2000
- Acceleration range(g): ±2±4±8 ± 16
- Communication: I2C Protocol
- Length (mm): 22
- Width (mm): 17
- Weight (gm): 5
- Shipment Weight: 0.01 kg
- Shipment Dimensions: 3.5 x 3 x 1.5 cm
DOCUMENTATIONS
SHIPPING LIST
- 1 x GY-87 10DOF MPU6050 HMC5883L BMP180 Sensor
- 1 x Straight-pin Male header
- 1 x Curved pin Male header.
