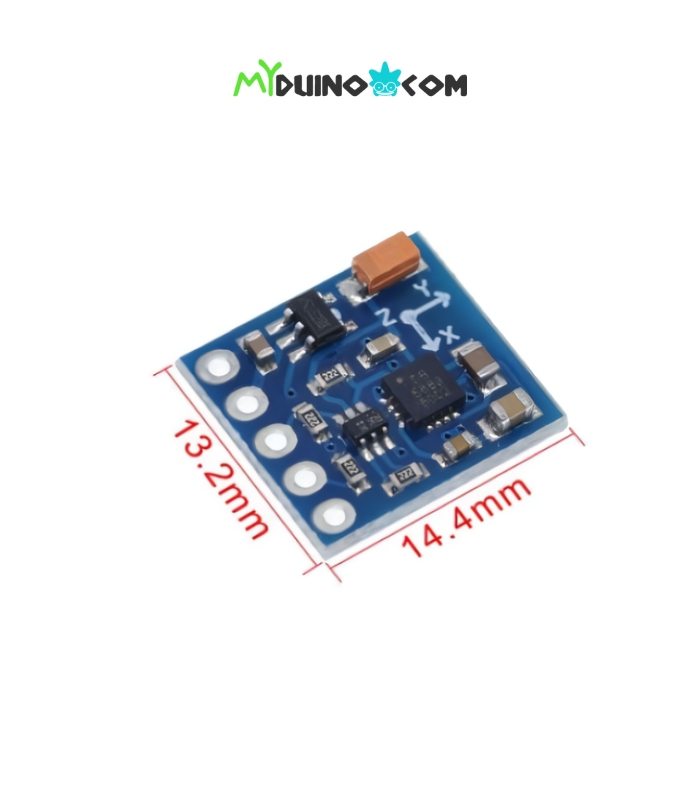

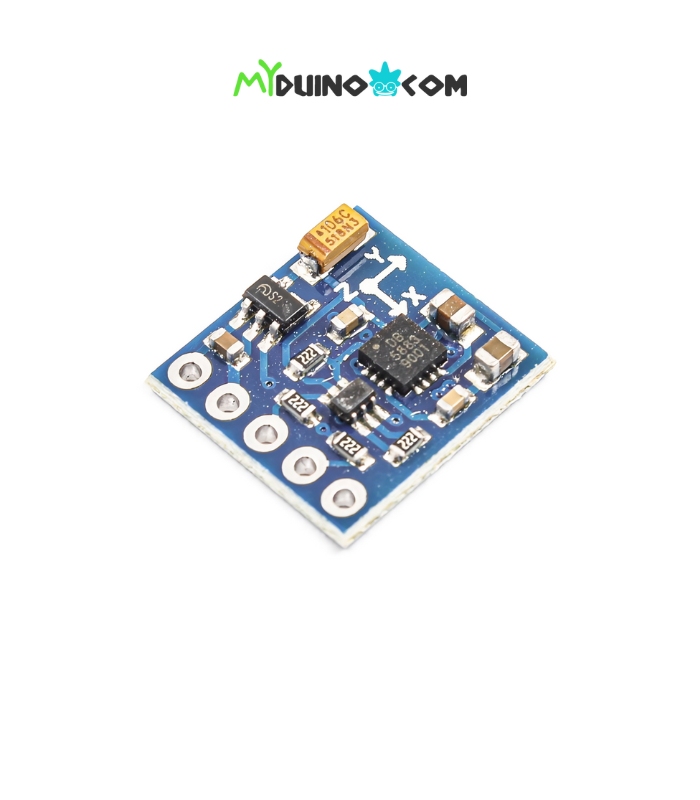

The HMC5883L is a three-axis digital compass used for two primary purposes: measuring the magnetization of a magnetic substance, such as a ferromagnet, or measuring the strength and, in certain situations, the direction of a magnetic field at a point in space. Communication with the HMC5883L is straightforward and takes place via an I2C interface. There is a regulator on board. The HMC5883L sensor and all filtering capacitors are included on the breakout board. All of the power and 2-wire interface pins are routed to a 0.1″ pitch header. The well-known HMC5883L magnetometer chip is used. I2C SCL and SDA pins support IO levels ranging from 3.0V to 5.0V.
SPECIFICATIONS
- 3-axis magnetic electronic compass
- Precise heading information
- Fits into small projects easily
- 12C communication
- HMC5883L chip
- Operating Voltage: 3V-5V DC
- Chipset HMC5883L
- Communication: 12C protocol
- Measuring range: ± 1.3-8 Gauss
DOCUMENTATIONS
SHIPPING LIST
- 1 x GY-271 QMC5883L Electronic Compass Module
