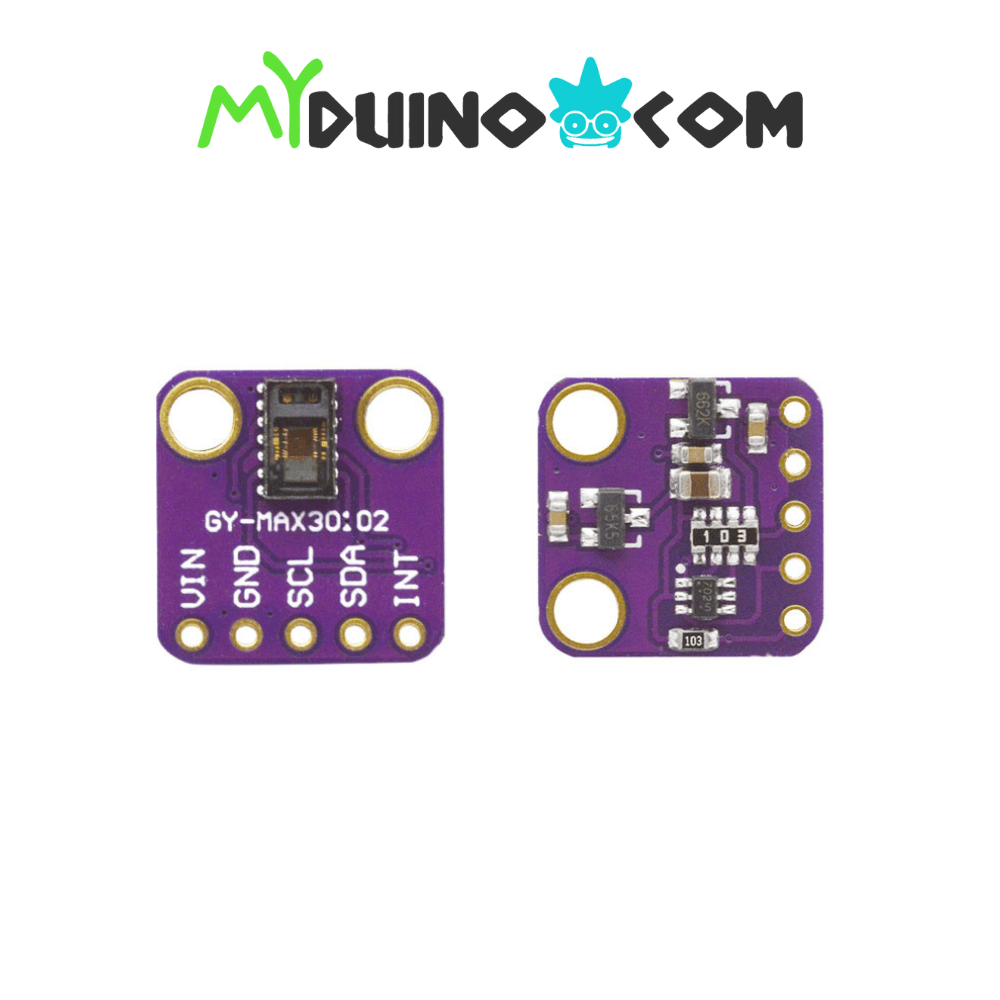

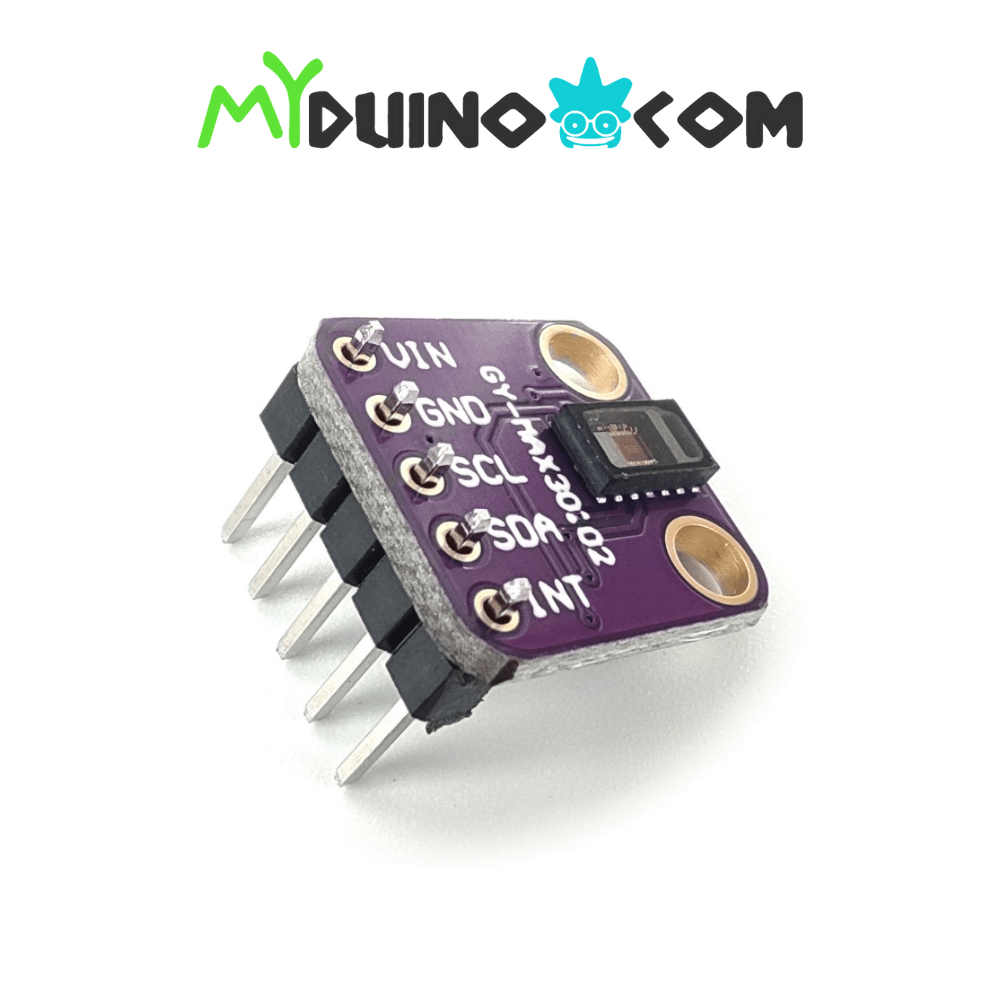

MAX30102 Heart Rate Pulse Sensor & Oximeter Module

This is a tiny MAX30102 Oximeter and Heart Rate Sensor Module that you may experiment with!

The MAX30102 chip powers the module, which communicates over the I2C interface. MAX30102 is a complete system solution that aids in the creation of mobile and wearable devices. The MAX30102 is a pulse oximetry and heart rate monitor module in one. Internal LEDs, photodetectors, optical components, and low-noise circuitry with ambient light rejection are included.

A single 1.8V supply and a separate 3.3V supply for the internal LEDs power the MAX30102. A standard I2C-compatible interface is used for communication. The module may be shut down with 0% standby current using software, allowing the power rails to remain powered at all times.

FEATURES

• Integrated cover glass for optimal, reliable performance
• Work with very low power consumption for mobile devices
• Programmable sample rate and LED current to save energy
• The ability to quickly transfer data
• High sampling rates
• Solid immunity to movement artifacts
• High SNR
• Power supply 3,3V-5V
• Operating temperature: -40°C to 85°C

DOCUMENTATION

• Datasheet – MAX30102
• Tutorial

SHIPPING LIST

• 1 x MAX30102 Heart Rate Pulse Sensor & Oximeter Module
