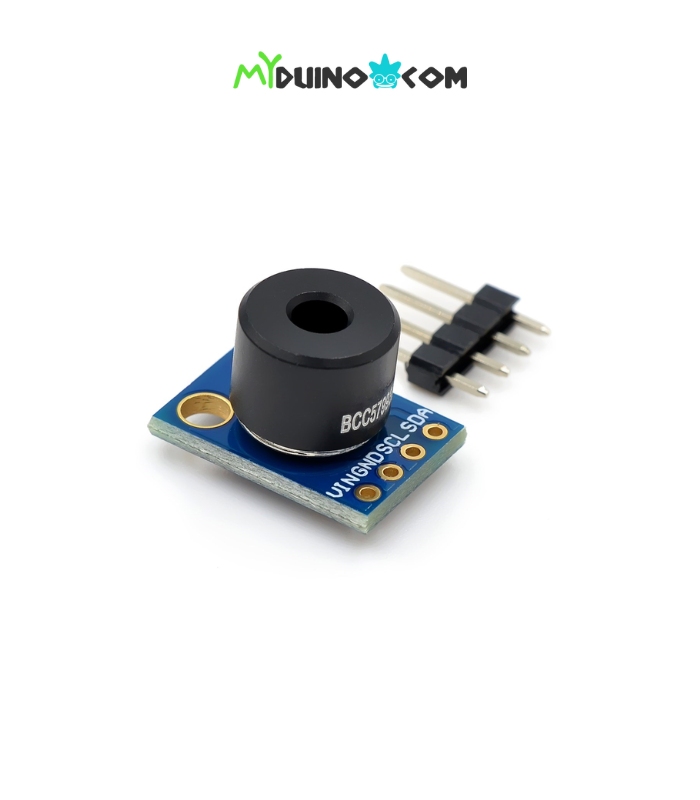

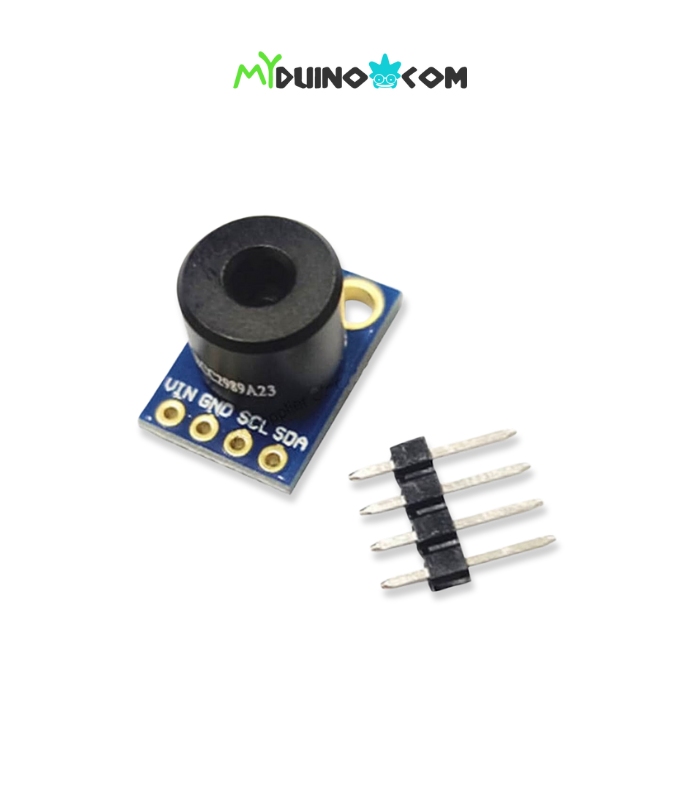

The MLX90614 is a Contactless Infrared (IR) Digital Temperature Sensor that can measure the temperature of a specific item between -70° C and 382.2° C. The sensor measures the temperature of the item using infrared rays and interacts with the microcontroller via the I2C protocol.
PINOUT
|
Pin No. |
Pin Name |
Description |
|
1 |
Vdd (Power supply) |
Vdd can be used to power the sensor, typically using 5V |
|
2 |
Ground |
The metal can also act as ground |
|
3 |
SDA – Serial Data |
Serial data pin used for I2C Communication |
|
4 |
SCL – Serial Clock |
Serial Clock Pin used for I2C Communication |
FEATURES
- Small size, low cost
- Mounted on a breakout board with two types of pins
- 10k Pull up resistors for the I2C interface with optional solder jumpers
- Easy to integrate
- Factory calibrated in a wide temperature range:
- 40°C to +125°C for sensor temperature and
- 70°C to +380°C for object temperature.
- High accuracy of 0.5°C over wide temperature range
- (0°C to +50°C for both Ta and To) High (medical) accuracy calibration
- Measurement resolution of 0.02°C
- Single and dual-zone versions
- SMBus-compatible digital interface
- Customizable PWM output for continuous reading
- Simple adaptation for 816V applications
- Sleep mode for reduced power consumption
- Different package options for applications and measurements versatility
- Automotive grade
SPECIFICATIONS
- Model: GY-906-BAA
- Chipset: MLX90614ESF-BAA
- Sensing Distance: 2CM
- Power Supply: 3-5V
- Communication Method: Standard IIC Communication Protocol
- Dimension (L*W*H): 16.8mm*11.46mm*6.2mm
- Detector Diameter: 8.2mm
DOCUMENT
SHIPPING LIST
- 1 x MLX90614ESF Infrared Temperature Sensor
