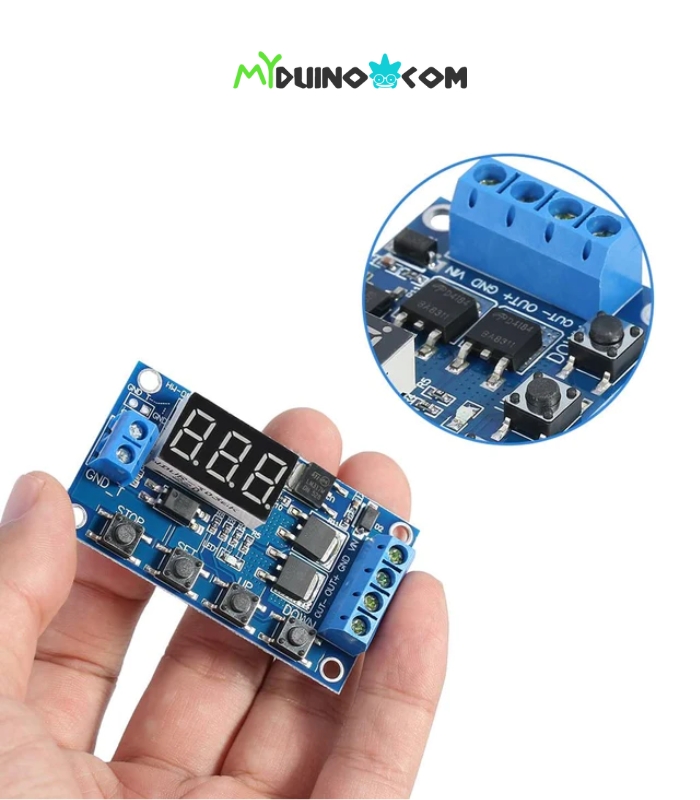

This module is designed to provide precise timing control for turning devices on and off. It supports a wide voltage range, making it versatile for various applications, and features an LED display for easy monitoring.
FEATURES
- Fast and Silent Switching: Quickly turns on and off without noise, sparks, or interference.
- Longevity: Offers a longer service life compared to regular relays.
- Dual-MOS Output: Handles high current (up to 15A) and power (up to 400W).
- Wide Voltage Range: Works with 5V to 36V inputs, suitable for various devices like motors and lights.
- Emergency Stop: Includes a “STOP” button for immediate shutdown.
- Reverse Input Protection: Guards against reverse input.
- Energy-Efficient: Automatically enters sleep mode after 5 minutes of inactivity, and wakes up with any button press.
- Customizable Parameters: Allows you to set different operating parameters, saved even in power loss.
SPECIFICATIONS
- Voltage: DC 5V~36V.

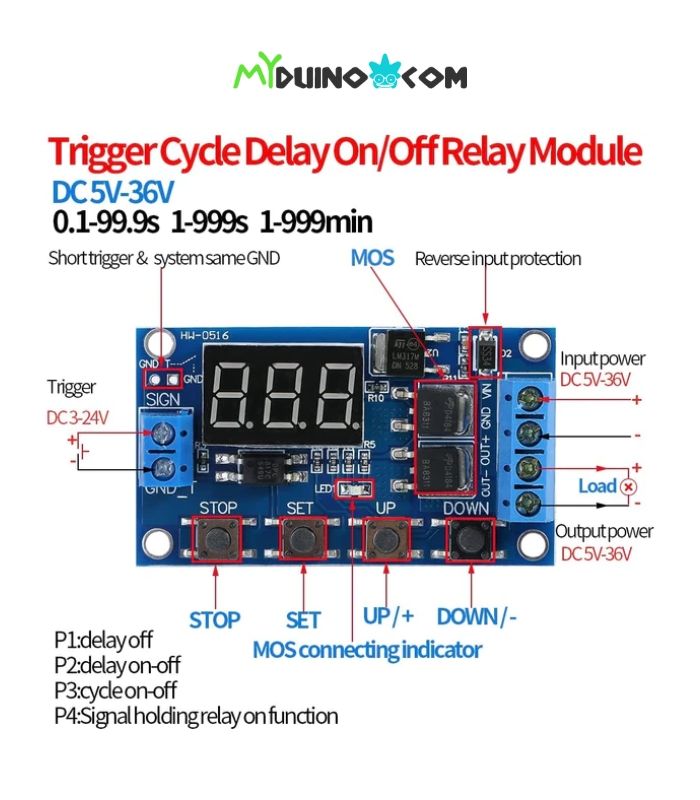

- Trigger Signal Source: High voltage level trigger (3.0V~24V), signal ground, and system ground are not on common ground to improve the system’s anti-jamming capability (you can also connect them on common ground).
- Output Capacity: DC 5V~36V, at room temperature, continuous current is 15A, power 400W. With enhanced heat dissipation, the current can be up to 30A.
- Quiescent Current: 20mA
- Operating Current: 50mA
- Working Temperature: -40~85
- Clocking (Time Delay) Range: 0.1seconds to 999minutes

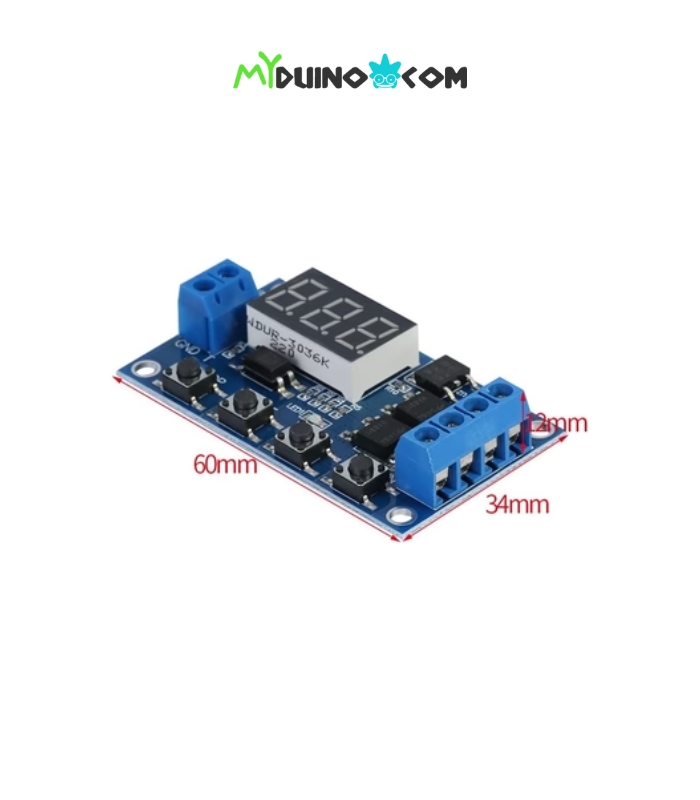

- Size: 60*34*12mm / 2.36*1.33*0.47″
DOCUMENT
SHIPPING LIST
- 1 x DC 5V Real-Time Delay Relay Module
