These screw terminal connectors are built of high-quality, long-lasting materials. The terminal block is resistant to corrosion and may be utilized in a range of demanding settings. The screw terminal block is resistant to abrasion and corrosion and has a high-pressure strength. The terminal blocks are securely bonded with high hardness, such as strong lines, and may give improved product surface control. The corners are ubiquitous, strong, and long-lasting.

DIMENSION

SPECIFICATIONS

• Pitch: 5.0 mm.
• Pins: 3P.
• Screw: M2.5 / steel / galvanized or brass.
• Wire cage: galvanized steel or nickel-plated brass.
• Pin header: brass/tin-plated.
• Housing: PA66 UL94V-0.
• Rated voltage: 300 V.
• Nominal current: 10 A.
• Dielectric strength: AC 2000 V / 1 min.
• Conductor Range: 22-12AWG
• Temperature range: -40 °C to +105 °C.
• Maximum soldering: + 250 °C for 5 seconds.
• Torque: 0.4 Nm (3.5 lb. in)
• Stripping length: 6-7 mm

SHIPPING LIST

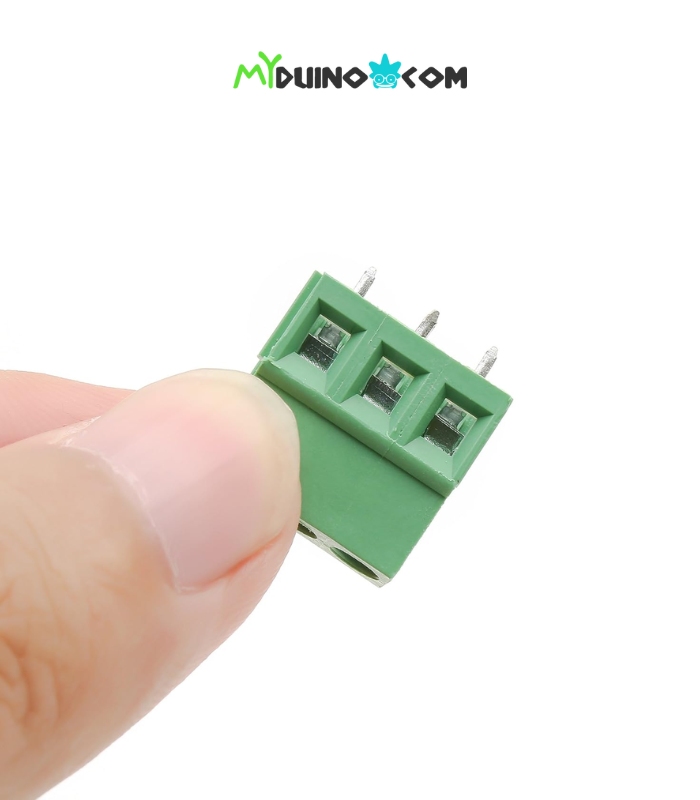

• 1 x KF128 5.0mm 3P Screw Type Terminal Block
