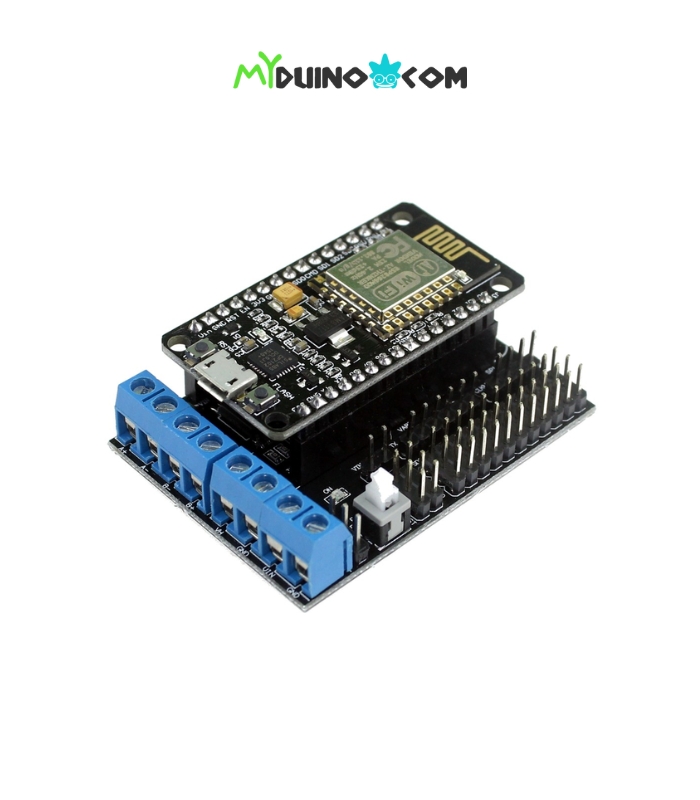

The L293D ESP8266 Motor Driver is an add-on module designed to work alongside the ESP8266 CP2102 V1 V2 development board. This module enhances the functionality by offering motor control capabilities, allowing users to control two motors using the ESP8266 CP2102 V1 V2 board. This combination is particularly useful for crafting projects like WiFi-controlled smart cars or any application that demands wireless motor control. The image provided demonstrates the NodeMcu V1 V2 Electronic Board mounted onto the L293D ESP8266 Motor Driver, showcasing the integration between the two components.
FEATURES
- L293D-type motorcycle driver chips
- Direct connection to 2 DC motor parts
- 1A maximum current for each DC motor
- Power switch
- Motor Operating Voltage (VM): 4.5V – 36V
- ESP8266 Operating Voltage (VIN): 4.5V – 9V
- Users can connect the two power supplies by connecting the VM and VIN pins on the board
- Provides SPI, UART, GPIO, and power pin connections
DOCUMENT
SHIPPING LIST
- 1 x L293D Shield ESP8266 Motor Driver For NODEMCU V2
