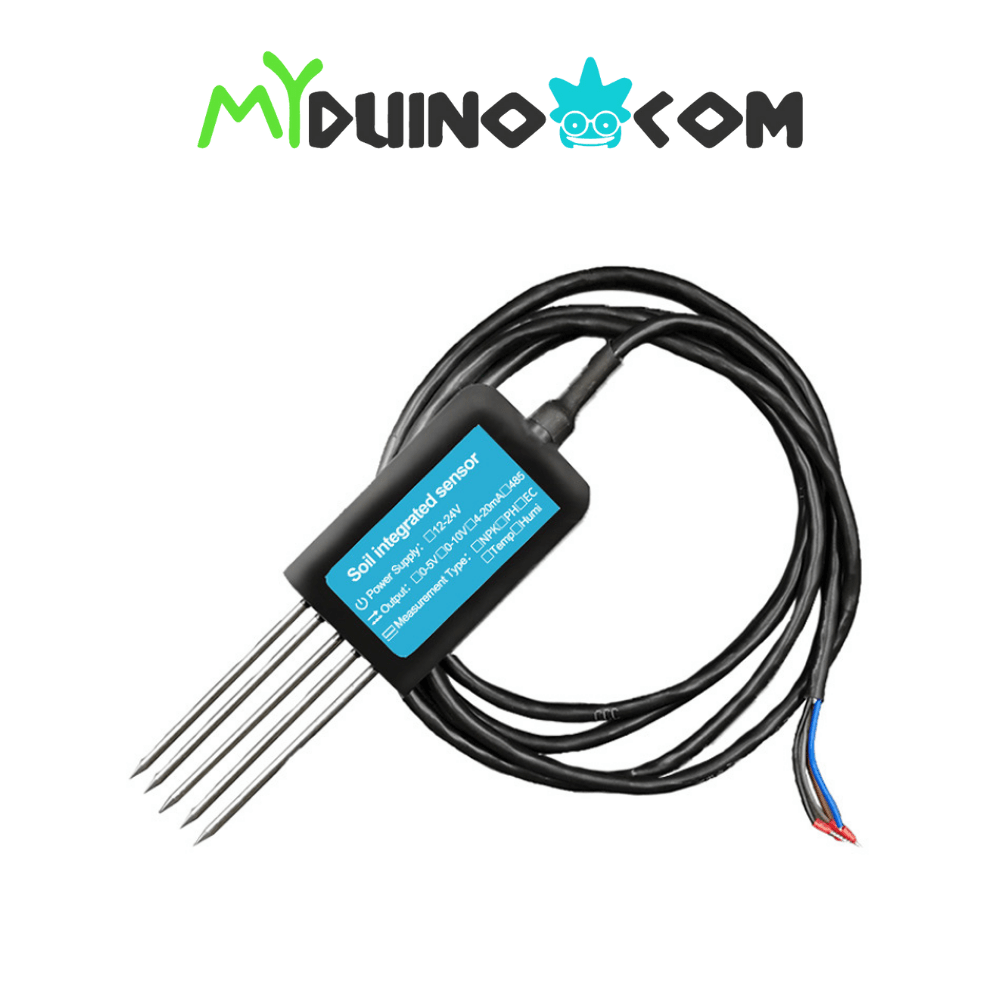

RS485 7-in-1 Soil Temperature Moisture EC pH NPK Sensor

RM590.00

Hurry, only 1 left.
Compare
SKU: MYP-JHS-268 Categories: , ,
Description

Are you in the midst of digitalizing your farms and looking for an industrial-grade sensor, yet the price is extremely high beyond your expectations? Fret not, we have the solution. Introducing RS485 7-in-1 Soil Sensor Temperature, Moisture, Electrical Conductivity, pH and NPK Measurement. Measure multi-parameters of soil including Temperature, Moisture, pH, Nitrogen, Phosphorus, and Potassium. The output signal is RS485 and can be operated with a broad range of voltage from 5-30 V.

SENSOR SPECIFICATIONS

  • Waterproof Soil Multi Parameters Sensor
  • Protection Grade: IP68
  • Probe Material: Anti-corrosion Special Electrode
  • Sealing Material: Black Flame-Retardant Epoxy Resin
  • Operating Voltage: 5.0 V – 30.0 V
  • Interface Output: RS485
  • Baud Rate: 4800 bps
  • Moisture
    • Range: 0-100 %
    • Accuracy: 0-50 % ≤ 2 %, 50-100 % ≤ 3 %
    • Resolution: 0.1 %
  • Temperature
    • Range: -40~80 ℃
    • Accuracy: ±0.5 ℃ (25 ℃)
    • Resolution: 0.1 ℃
  • Electrical Conductivity
    • Range: 0-20000 us/cm
    • Accuracy: 0-10000 us/cm ≤ ±3 %FS, 10000-20000 us/cm ≤ ±5 %FS
    • Resolution: 1 us/cm
  • PH
    • Range: 3~9
    • Accuracy: ±0.3
    • Resolution: 0.1
  • NPK
    • Range: 1-1999 mg/kg(mg/L)
    • Accuracy: ±2 %FS
    • Resolution: 1 mg/kg(mg/L)

SHIPPING LIST

  • Multi-parameter Soil Sensor – Moisture, Temperature, Electrical Conductivity, pH, & NPK (Nitrogen, Phosphorus, Potassium)

REFERENCES

Additional information
Weight 0.35 kg
Dimensions 15.5 × 14 × 6.5 cm
