ESP32-CAM-MB CH340 USB Programmer

RM8.90

In Stock
  • Free Shipping Total Purchase > RM150
    T&C
  • Cash Back 1% of Total Purchase
    T&C
Services:
  • 30 Days Return Policy
  • 1 Year Warranty
  • Refund Policy
Compare
Description



Using the FTDI Adapter to program the ESP32-CAM is a bit of a hassle. This is why many vendors now sell the ESP32-CAM board along with a small add-on daughterboard called the ESP32-CAM-MB. You stack the ESP32-CAM on the daughterboard, attach a micro USB cable, and click the Upload button to program your board. It’s that simple.

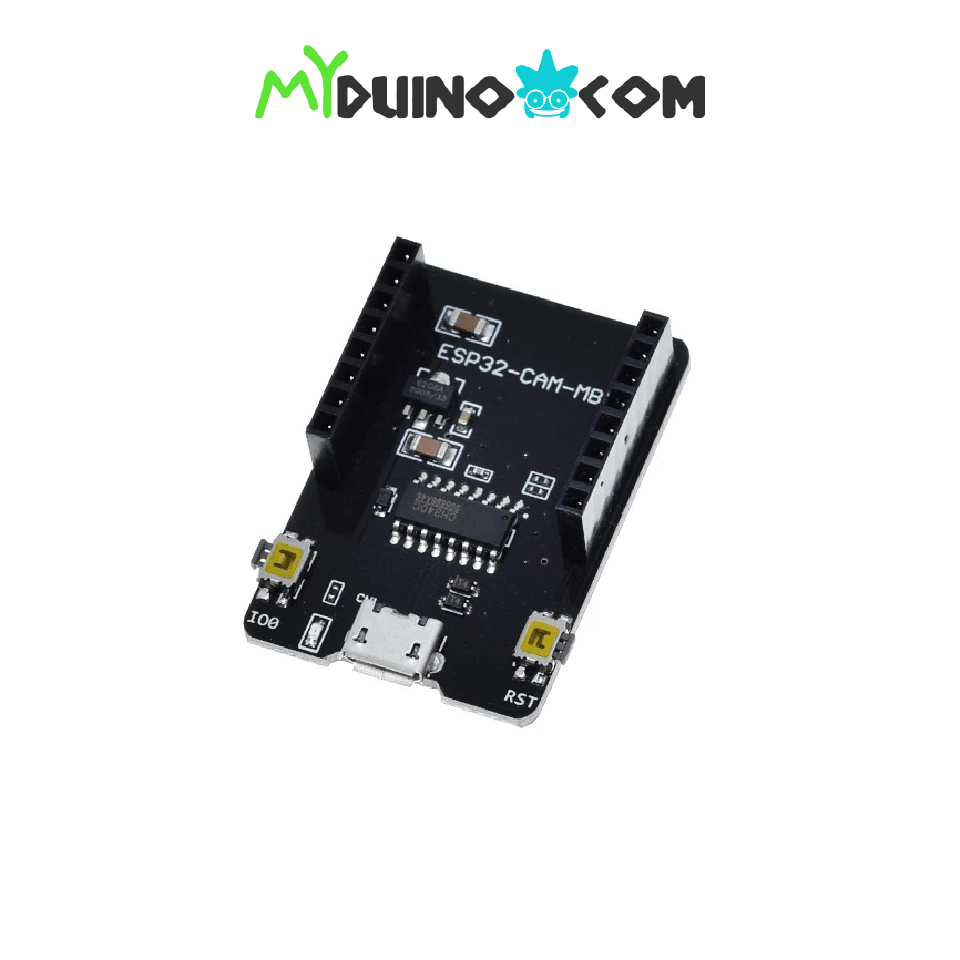

esp32 cam mb programmer hardware overview

The highlight of this board is the CH340G USB-to-Serial converter. That’s what translates data between your computer and the ESP32-CAM. There’s also a RESET button, a BOOT button, a power indicator LED, and a voltage regulator to supply the ESP32-CAM with plenty of power.

The ESP32-CAM AI-Thinker MB programmer is a shield that you attach to your ESP32-CAM board GPIOs. The following image shows the programmer and the ESP32-CAM side by side.

ESP32-CAM-MB Micro USB Programmer CH340G Serial Chip for OV2640

The programmer comes with the CH340C USB to serial chip.

ESP32-CAM-MB CH340G Serial Chip USB Converter

This allows you to program the ESP32-CAM using the USB port on the shield.
ESP32-CAM-MB CH340G Serial Chip Micro USB Port Programmer
Additionally, the shield also comes with a RESET and a BOOT (IO0) buttons. This may be useful to easily reset the ESP32-CAM or put it into flashing mode.



SPECIFICATION

  • Type: Voltage Regulator
  • Number: ESP32-CAM-MB TTL Downloader Module
  • Working voltage: 4.7V-5.3V
  • Working temperature: -40°C~85°C
  • Product size: 40*27*10mm/1.57* 1.06*0.39in

DOCUMENTATION

SHIPPING LIST

  • 1 X ESP32-CAM-MB
