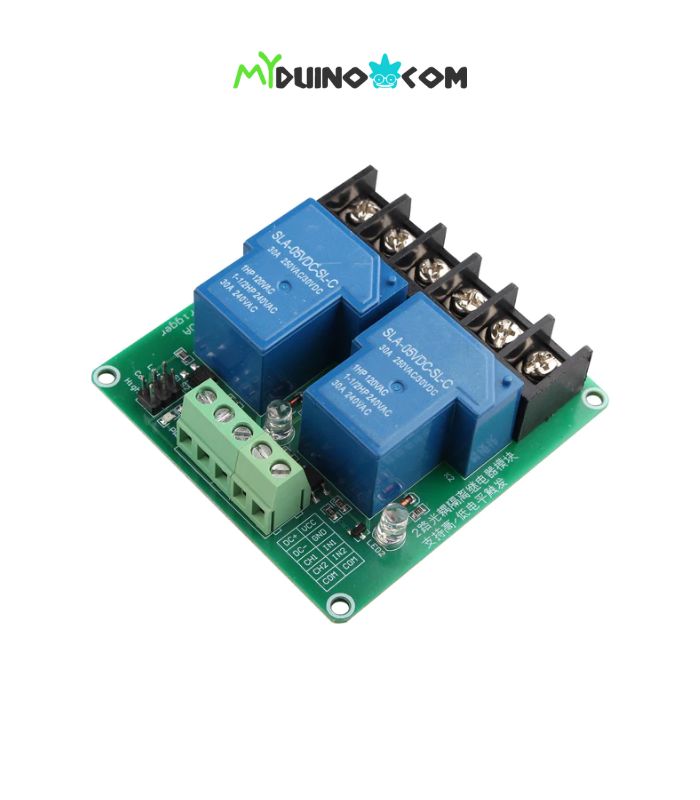

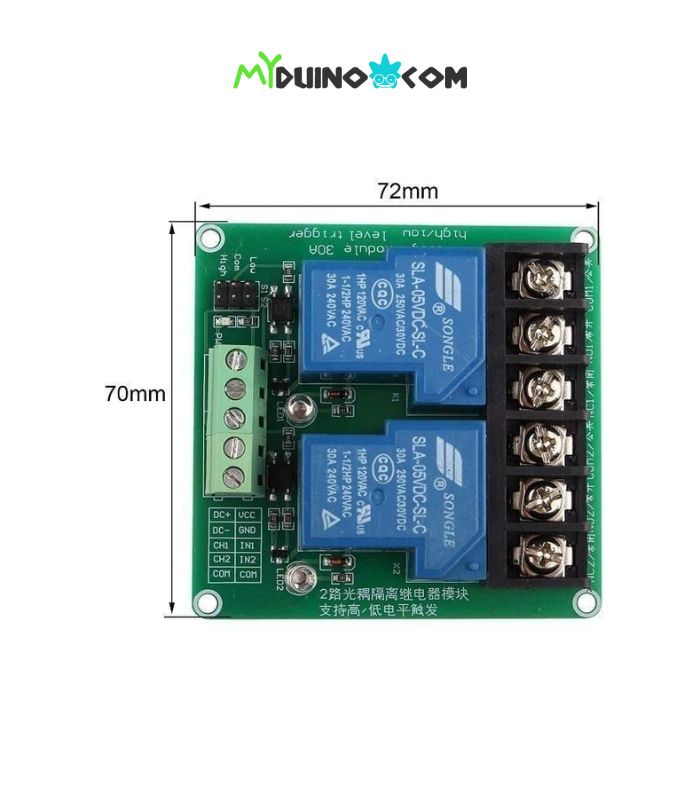

This is a PLC Automation 250VAC/30VDC 30A High Current 5VDC 2-Channel LOW/HIGH-Level Trigger Relay Module. The maximum control load is DC 5V 30A / AC 250V 30A, and it employs a high-power relay. The control and load areas are equipped with isolation holes in accordance with international safety requirements. It has optocoupler isolation and anti-interference capabilities.
- Using a high-power relay, the maximum control load is DC 5V 30A / AC 250V 30A.
- With each optocoupler isolation, anti-interference ability.
- In line with international safety standards, the control area and the load area with isolation slots.
- Each channel has a relay on the LED indication.
- Product Applications: PLC automation equipment control, industrial system control, logistics network control, home intelligent product control, electronic enthusiasts to develop experiments, and all kinds of circuit modification.
- Used to control various appliances and another electronic gadgets with high current.
- Can be interfaced with a microcontroller to switch appliances.
- DC+: 5V
- DC-: GND
- CH1: Signal trigger terminal
- CH2: Signal Trigger terminal
- Supply Voltage: DC 5V
- Quiescent Current: 5mA
- Maximum Operating Current: 190mA
- Trigger Mode: High and low-level trigger
- Load Voltage: DC 30V / AC250
- Load Current: 30A
- Relay Life: more than 100,000 times
- 1 x 250VAC/30VDC 30A High Current 5VDC 2-Channel LOW/HIGH Level Trigger Relay Module
