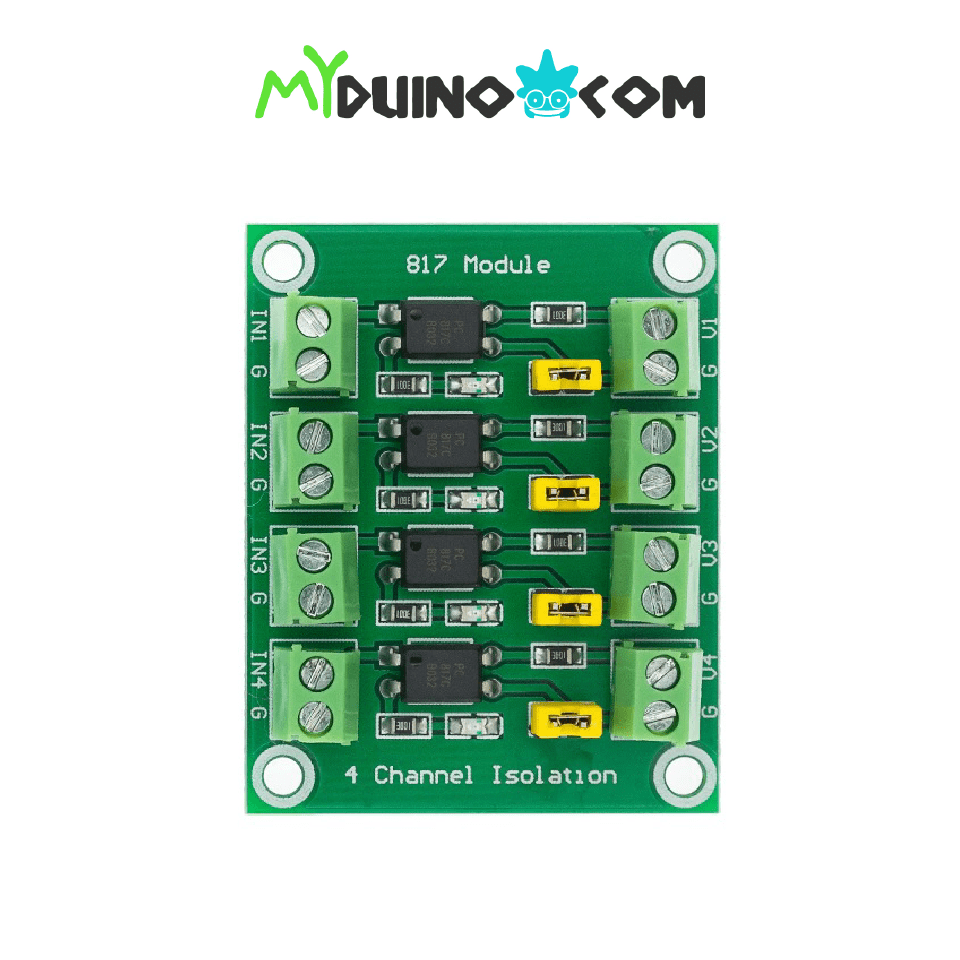

This module is designed for isolating and converting voltages. It uses a 4-way 817 optocoupler to separate control signals and achieve voltage conversion. You can connect it to a microcontroller or other devices’ IO ports for isolated voltage control, supporting voltage ranges from 3.6V to 30V with either 3.3V or 5V control signals.
When you activate the control terminal, the corresponding controlled terminal also activates. You can choose between high or low output using a jumper cap. The four channels on the board with 817 optocouplers work independently, allowing you to control different voltages simultaneously.
This module offers strong interference resistance due to its photoelectric isolation feature. It can handle high-power transistors, MOS tubes, high-voltage applications, and even control low-power 24V relays directly.
SPECIFICATIONS
- Material: Circuit Board, Electronic Components
- Size: 48 x 38mm/1.89 x 1.50in (L x W)
- Hole Distance: Long side: 42mm/1.65in; Wide side: 32mm/1.26in
- Drive Signal Voltage Range: 3.6-24V
- Output Voltage Range: 3.6-30V (Output current depends on the specific situation but not 10MA at most, the total power is inversely proportional to the voltage and current)
- Color: As picture shown
- Input voltage 3.6V to 24V
- Output voltage 3.6V to 30V
- Jumper switches output from high to low
- All four channels are independent and can be used with different voltages at the same time
DOCUMENT
NOTE

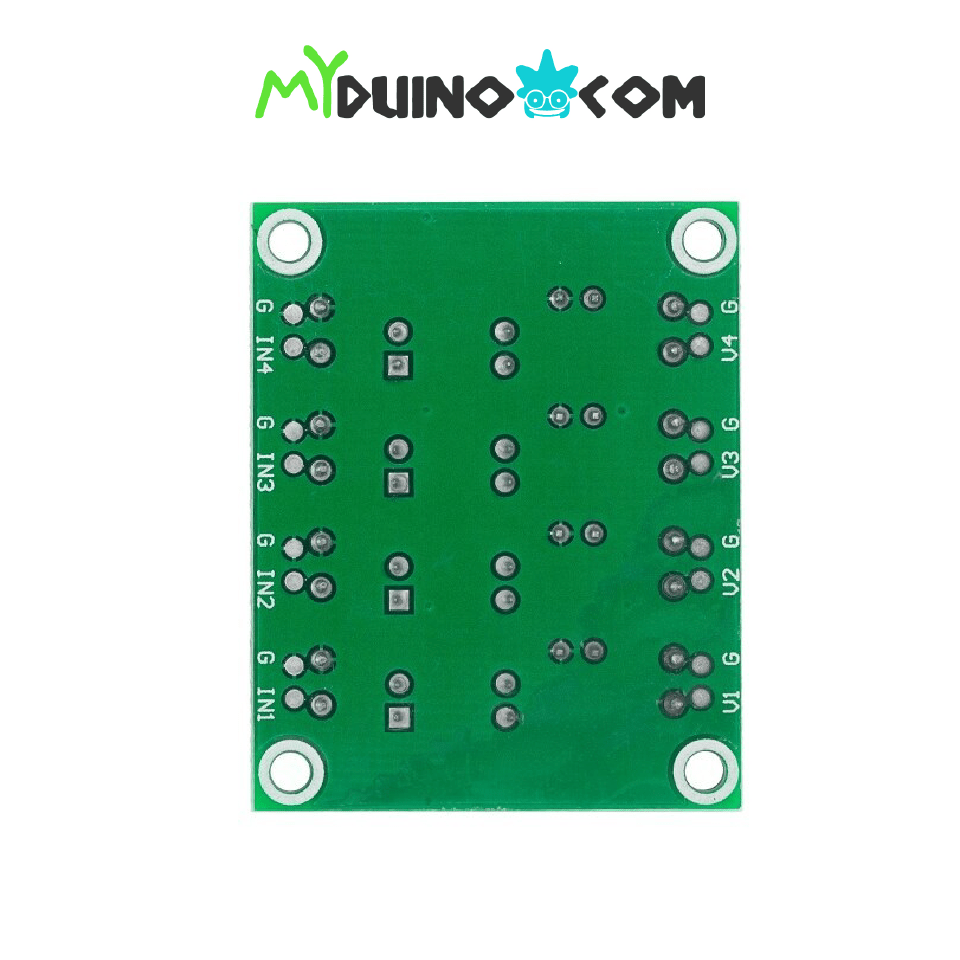

- The input port is shared with GND.
- The output ports are independent of each other.
SHIPPING LIST
- 1 x 4-Channel PC817 3.6-30V Optocoupler Isolation Module
