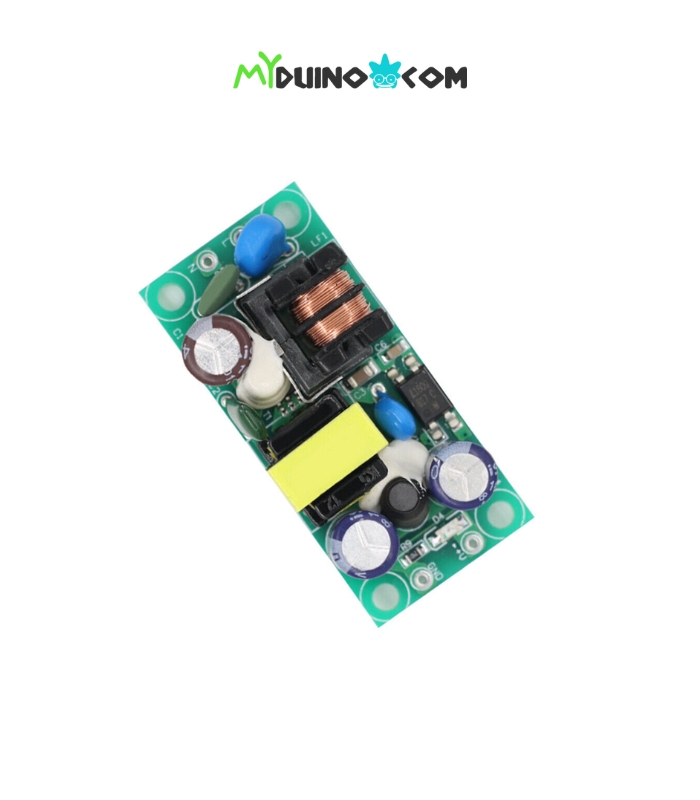

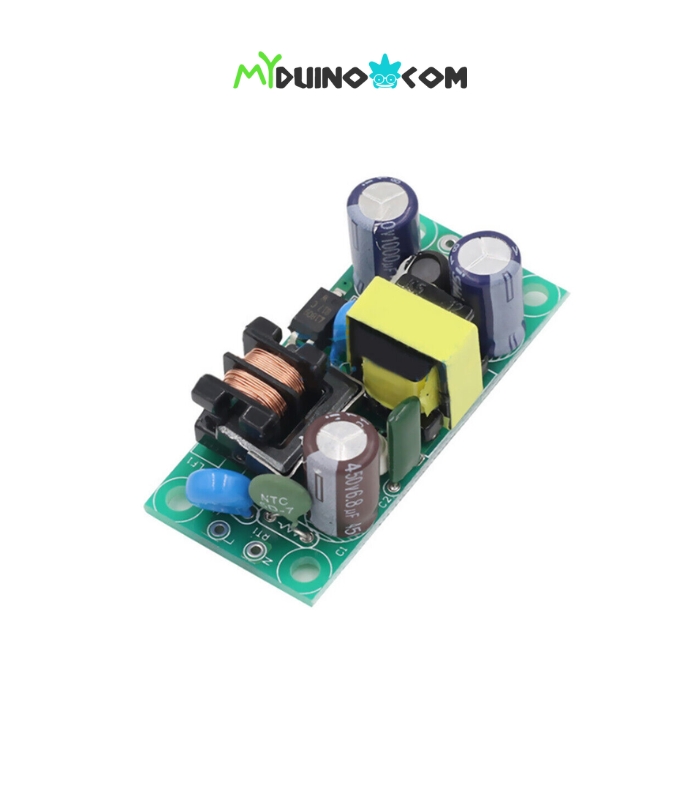

The electronic device is designed to convert high-voltage alternating current (AC) electricity at 240 volts into low-voltage direct current (DC) electricity at 12 volts with a maximum output current capability of 2 amperes (A).

DIMENSION

FEATURES

• The product is easy to install, and the input and output can be used with a VH3.96 terminal or pin.
• There are fixed mounting holes at the four corners to prevent the product from being powered off due to movement/vibration. The fixing holes are straight through 4mm.
• Universal input voltage: 85-264V AC or 110-370V DC.
• High efficiency, high power density, low output ripple noise.
• Input and output are highly isolated.
• Overcurrent protection, short circuit protection, and temperature protection.
• Output built-in filtering, no external filtering circuit is required.

SPECIFICATIONS

SHIPPING LIST

• 1 x 240VAC to 12VDC 2A AC-DC Converter Module
