Infrared IR Wireless Remote Control Kit

Arduino kit of ultra-thin Mini infrared wireless remote control, infrared remote control and 38 KHz infrared receiving module. The Mini ultra-thin remote control has 17 function keys, the infrared emission furthest distance up to 8 meters, suitable for controlling indoor devices of all kinds. Infrared remote control receiving module can receive standard 38 KHz modulation signals, by programming with Arduino, the remote control signal decoding operation can be realized, which can be used in all kinds of remote control robots and interactive work.

SPECIFICATIONS

• Comes with
  • IR transmitter (Remote Control), without CR2025 coin cell battery
  • IR transmitter LED

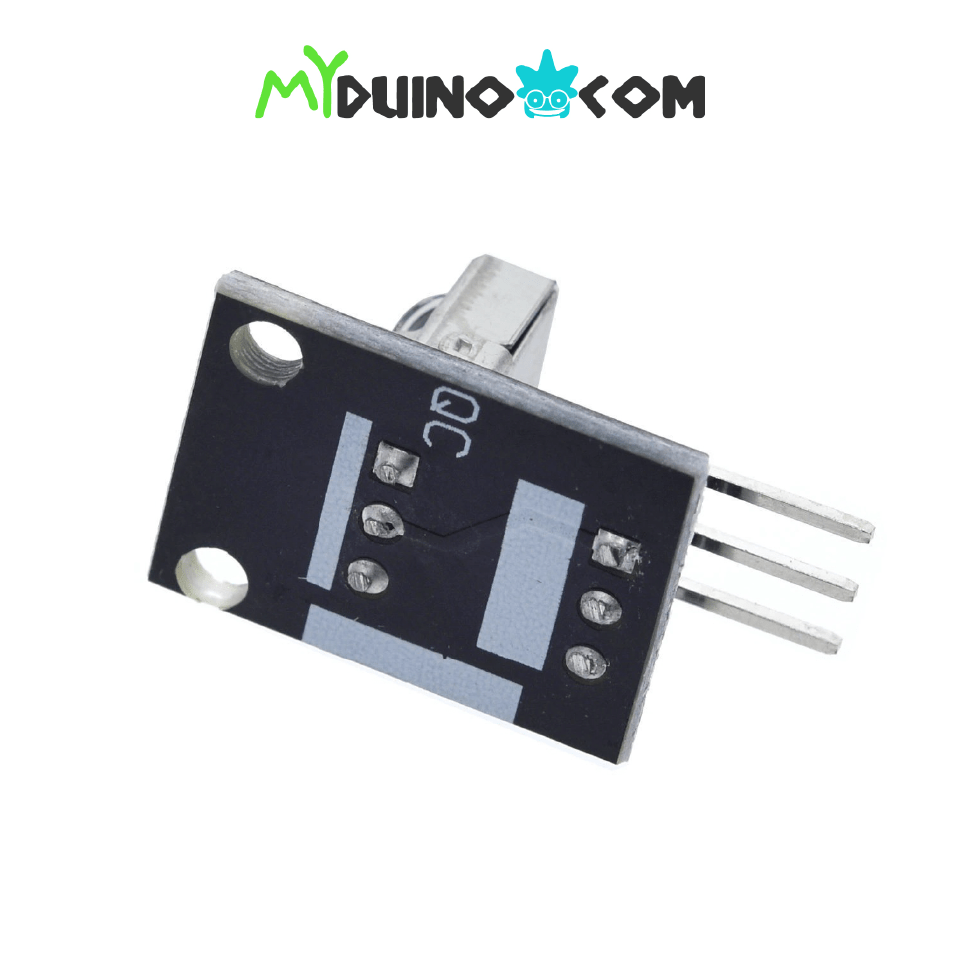

  • IR receiver breakout
  • Jumper wires
• IR transmission distance: 8 meters but must be direct line of sight and the receiver’s sensitivity
• Effective angle: 60 degrees
• Case material: 0.125mm PET
• Estimated usage: 20,000 times
• Quiescent current 3-5uA
• Dynamic current 3-5mA

TUTORIAL

• https://www.circuitbasics.com/arduino-ir-remote-receiver-tutorial/

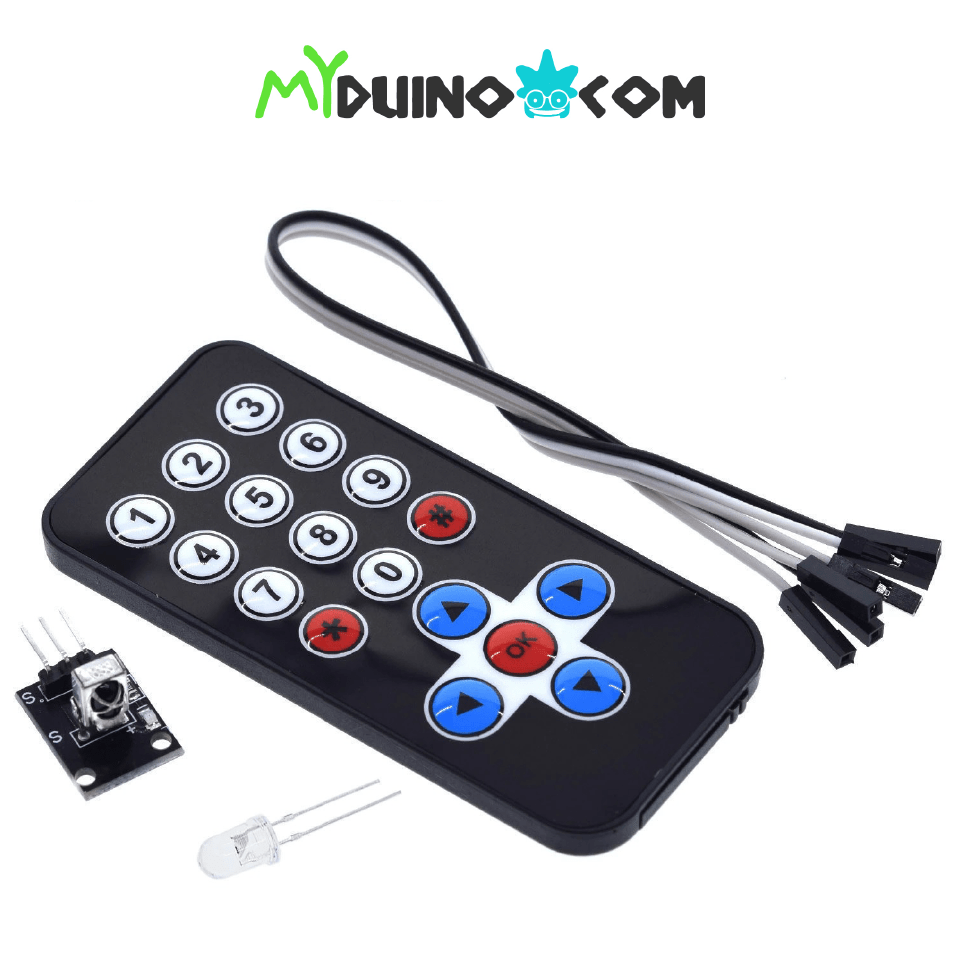

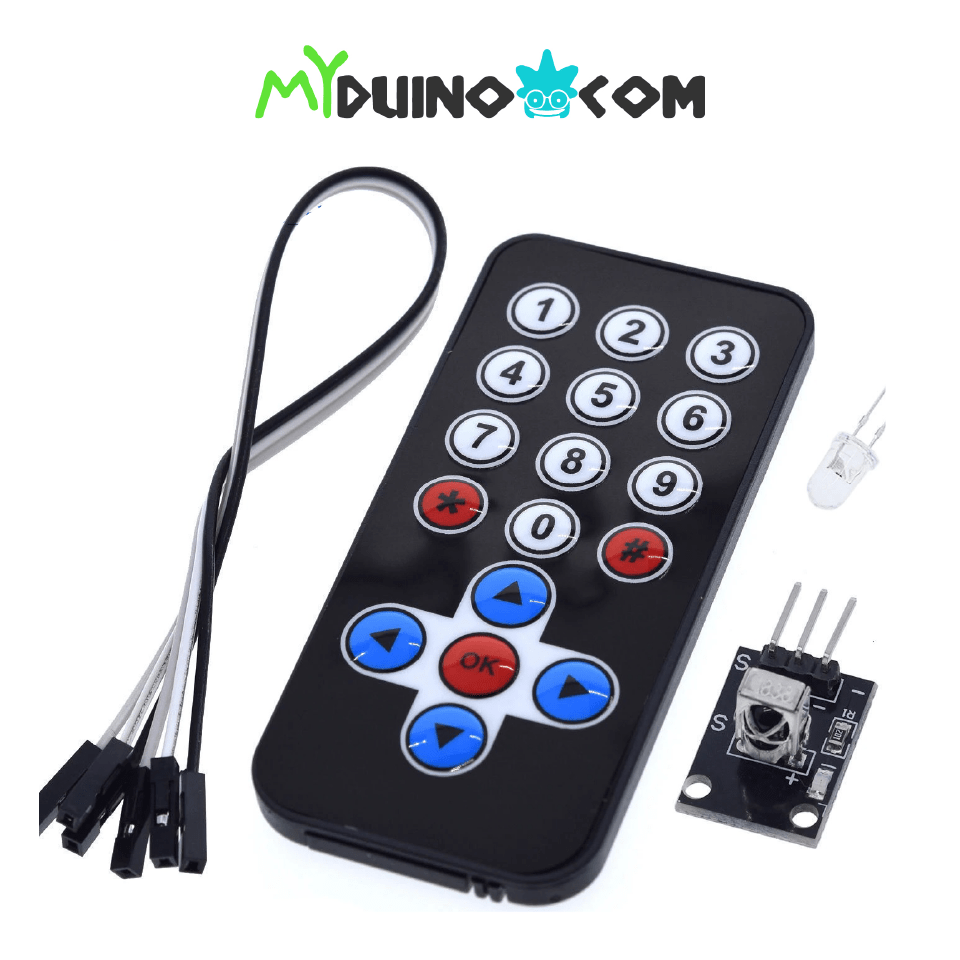

SHIPPING LIST

• 1 x IR Remote Controller
• 1 x IR Receiver Module
• 1 x Digital Cable
