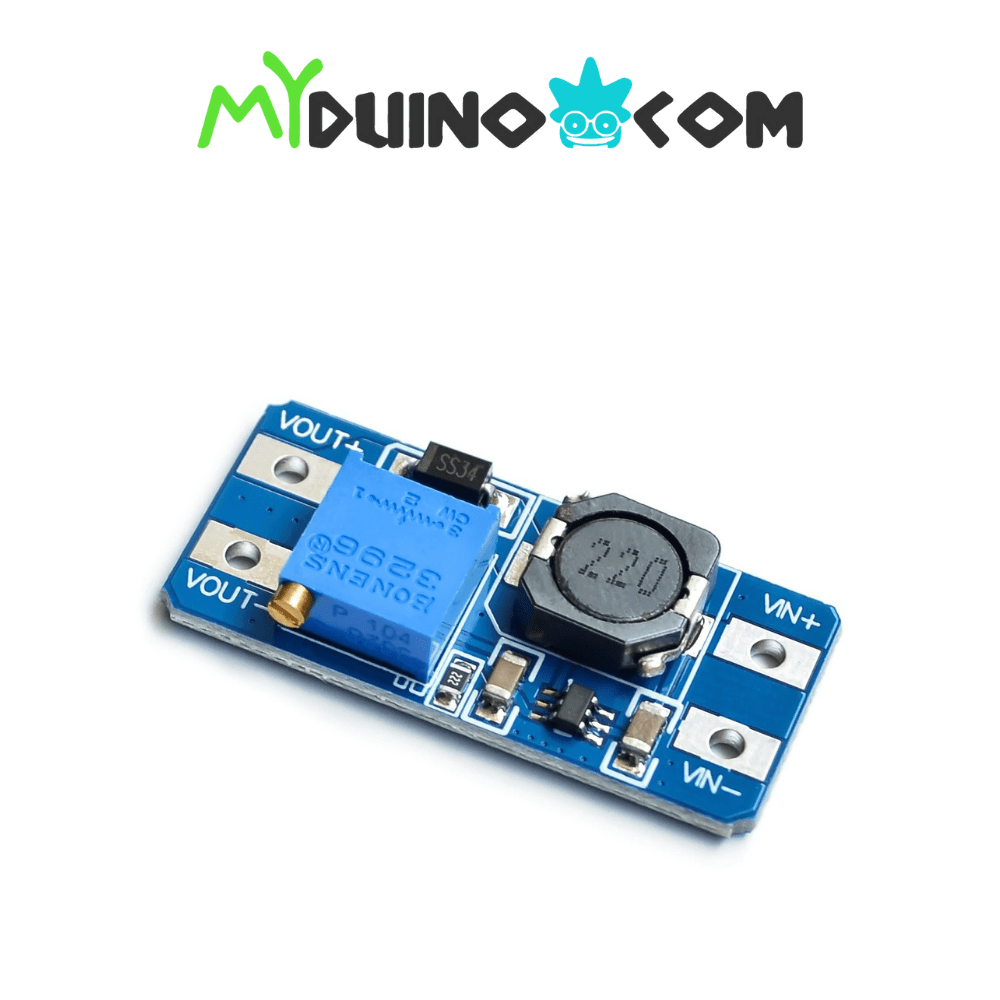

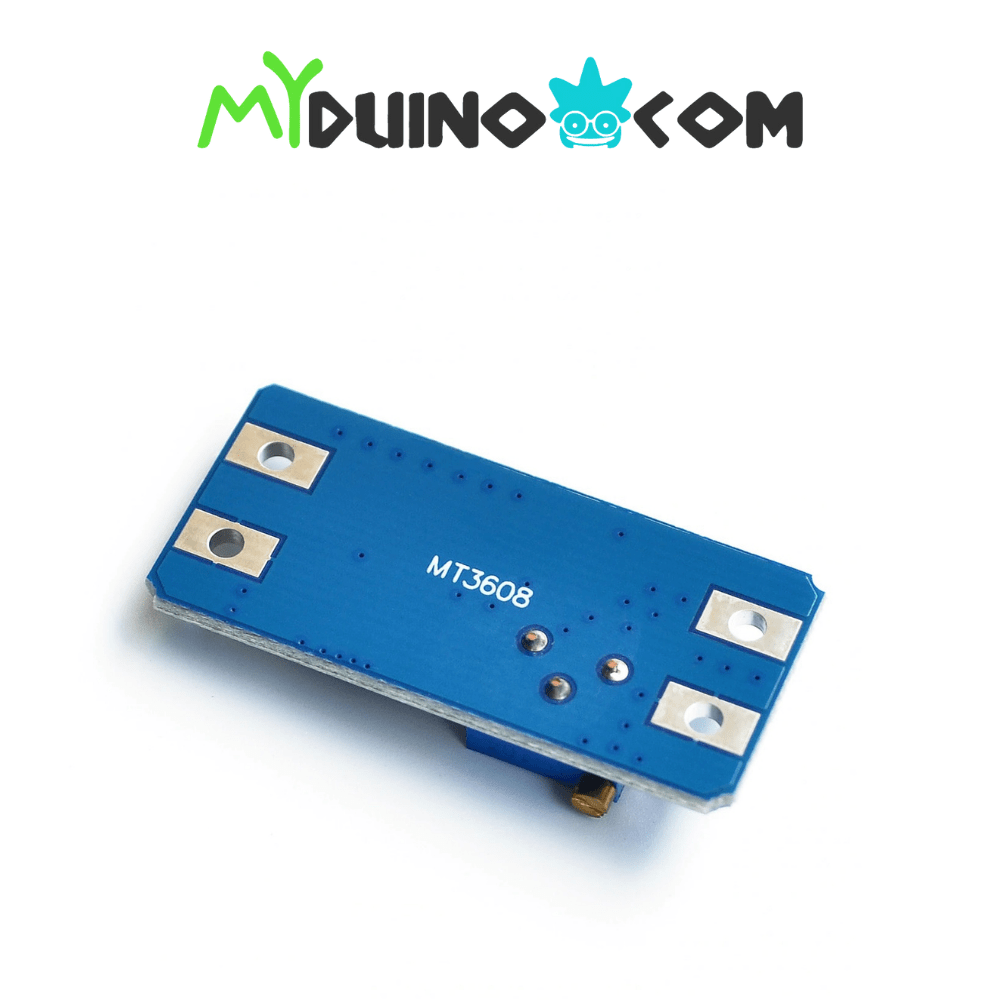

The MT3608 power module is a step-up (Boost) converter module designed for low-power and small-size applications. The module is capable of regulating the output voltage up to 28V and delivering a maximum output current of 2A. The module comprises an MT3608 IC in a 6-Pin SOT23-6 Package that switches at 1.2 MHz, allowing for the usage of small capacitors and inductors, resulting in a compact-sized power boost module.
The circuit above depicts how the connections are made for the operation of the MT3608 step-up module.
DIMENSION

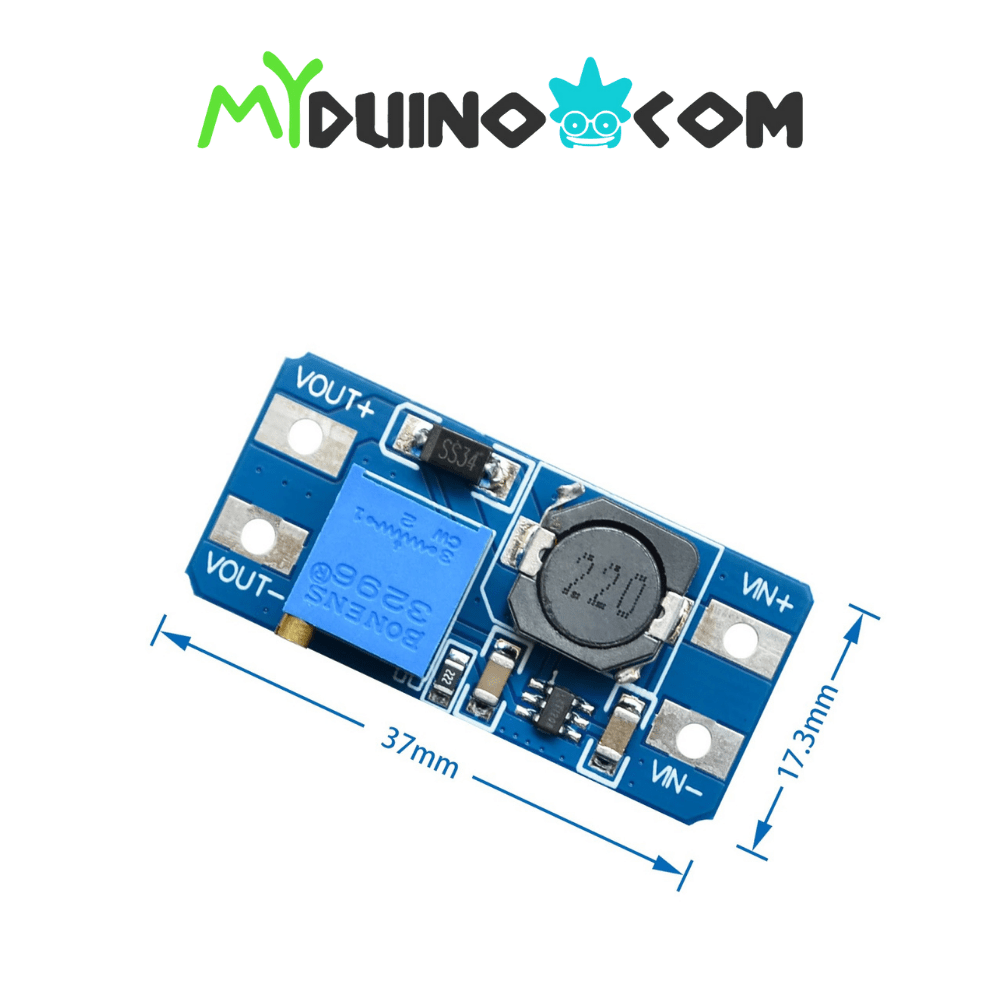

The picture below shows the step-up power module’s 2D model. The measurements specified in millimeters can be utilized to construct bespoke module footprints and used in PCB design and CAD models.
PINOUT
| Pin Type | Description |
| VIN+ | Voltage Input |
| VIN- | Ground |
| VOUT+ | Voltage Output |
| VOUT- | Ground |
APPLICATIONS
- Power amplifiers
- Battery power systems
- Consumer electronics
- DC motor drivers
SPECIFICATIONS
- Input Voltage: 2-24V DC
- Output Voltage: 5-28V DC
- Maximum Output Current: 2A
- Switching Frequency: 1.2Mhz
- Output Ripple: <100mV
- Module Size: 37.2mm x 17.2mm x 14.0mm
- About 93% Efficiency
- Features like an under-voltage lockout, thermal overload protection
