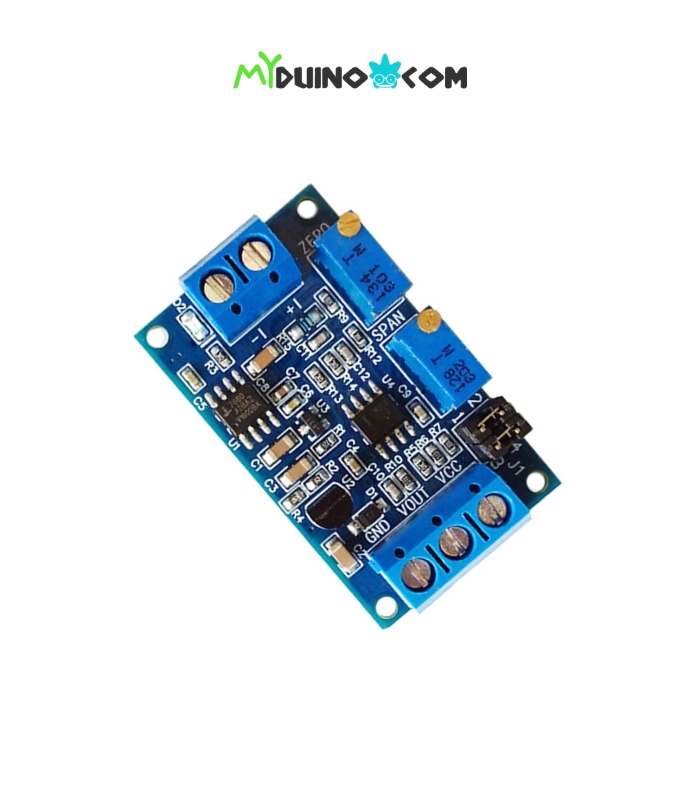

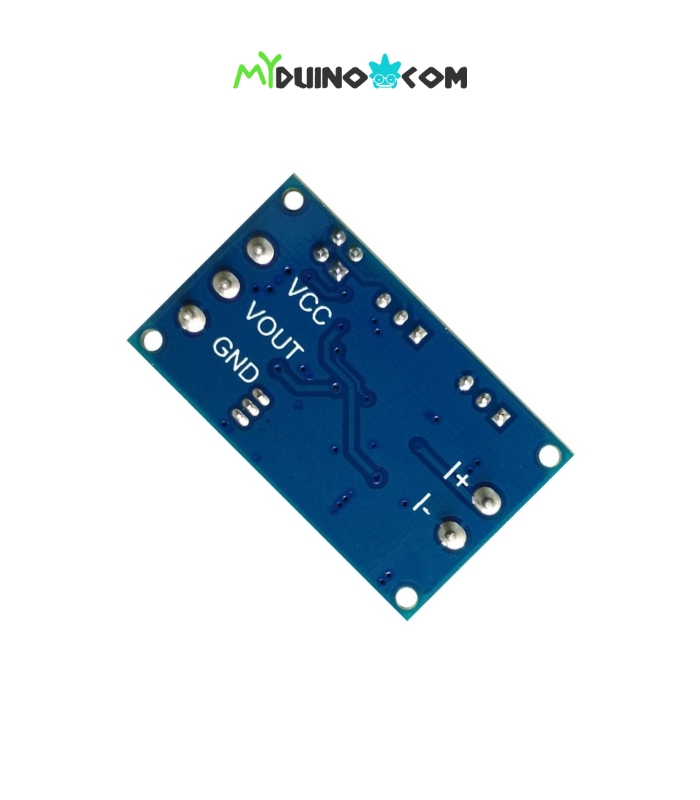

This current-to-voltage module transforms 4-20mA current signals to 0-3V, 0-5V, or 0-10V (Industrial signal) in a linear manner. The current signal output of industrial sensors or devices is typically 4-20 mA. Your main control board can simply read the current signals generated from industrial sensors or devices with this current-to-voltage module.
Jumper Settings for Output Voltage Range Input Signal: 0-20mA:
- 0-3.3V: J1 1,2 pin are short circuit connected; 3, 4 pins are short circuit connected
- 0-5V: J1 1,2 pin is a short circuit connected; 3, 4 pins are short circuit connected
- 0-10V: J1 1,2 pin are short circuit connected; 3, 4 pins are disconnected
Jumper Settings for Output Voltage Range Input Signal: 4-20mA
- 0-2.5V: J1 1,2 pin are short circuit connected; 3, 4 pins are short circuit connected
- 0-3.3V: J1 1,2 pin are disconnected; 3, 4 pins are disconnected
- 0-5V: J1 1,2 pin is a short circuit connected; 3, 4 pins are short circuit connected
- 0-10V: J1 1,2 pin is a short circuit connected; 3, 4 pins are disconnected
APPLICATION
- This Module is used to convert the current signal to voltage Output.
FEATURES
- Wide supply voltage range, the output has multiple voltage ranges

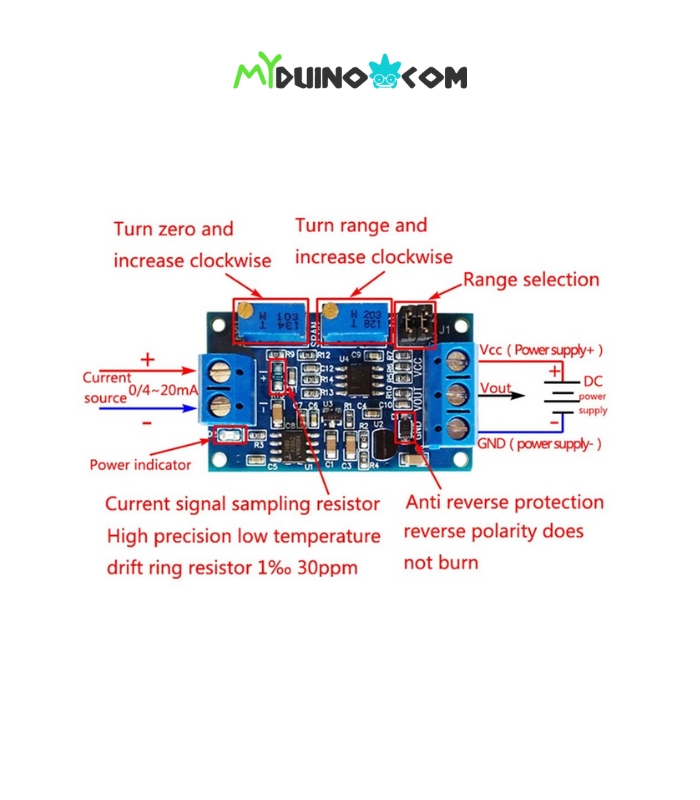

- Zero and range can be adjusted
- High stability, good linearity, industrial-grade
- Current signal sampling resistor with high precision color ring resistance, high precision, temperature drift small, high power
SPECIFICATIONS
- Supply Voltage (VCC): DC 7-36V
- Input current: 4-20mA or 0-20mA
- Output signal voltage: DC 0-3.3V or 0-5.0V or 0-10.0V (Select in jumper setting)

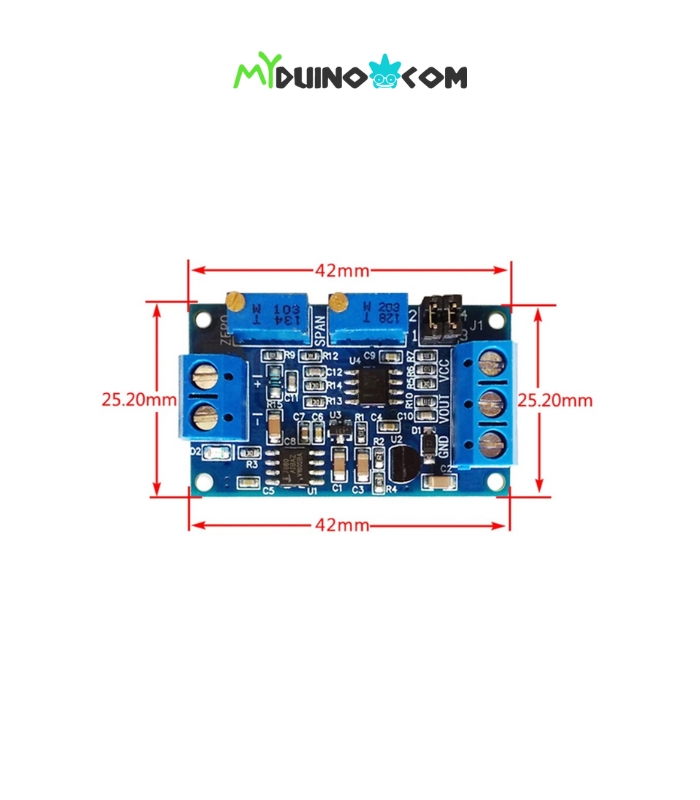

- Size: 42x25x14mm
- Weight: 10g
SHIPPING LIST
- 1 x 4-20mA to 0-3.3V 0-5V 0-10V Current to Voltage Converter Module
