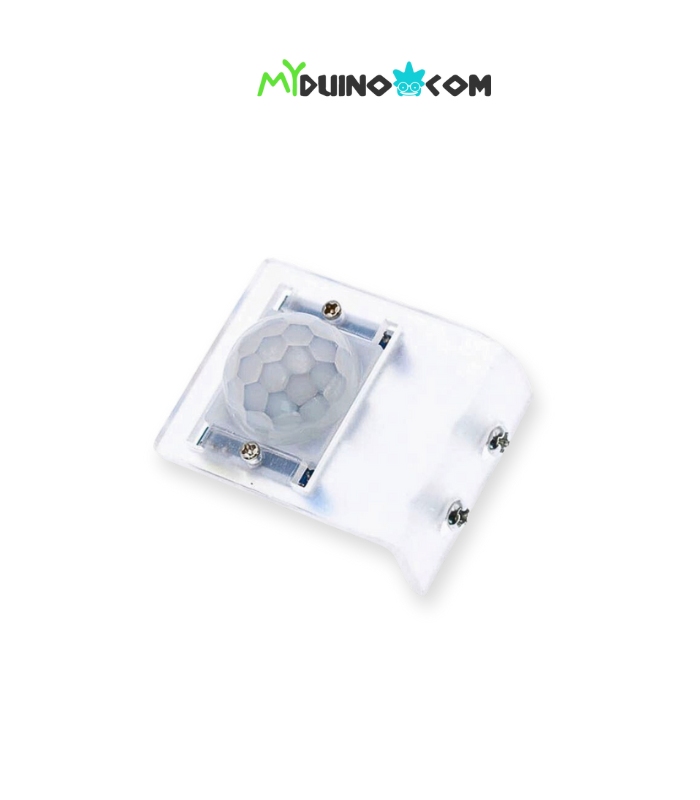

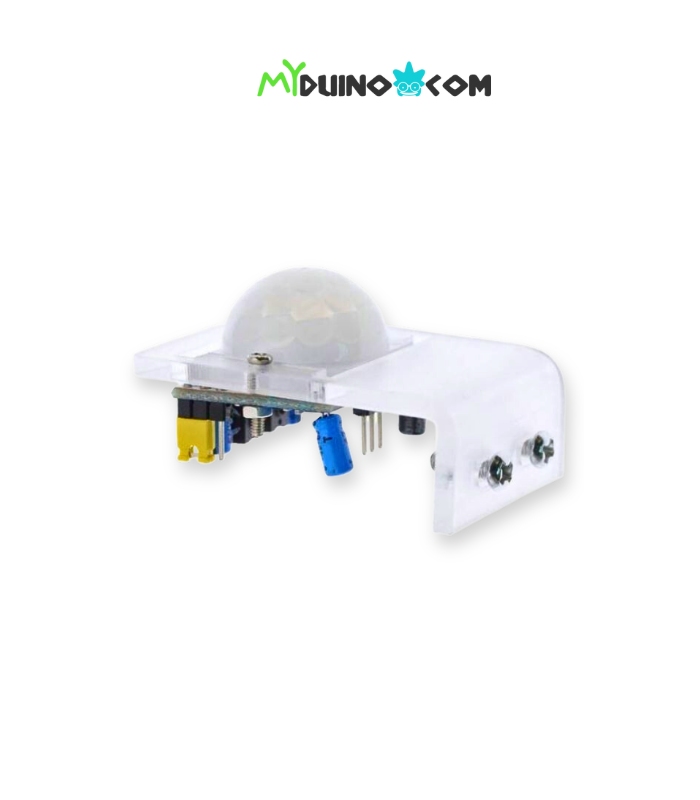

The HC-SR501 PIR Motion Sensor Mounting Bracket is a clear acrylic bracket that is used to install the HC-SR501 PIR Motion Sensor Module.

FEATURES

• The bracket has two small holes in the top for mounting the sensor to the bracket.
• Two small screws and nuts are provided for attaching the sensor to the bracket.
• The flange has two larger holes for mounting the bracket to a surface.
• Two larger screws and nuts are provided for attaching the sensor to the bracket, or other hardware can be used depending on the mounting requirement.

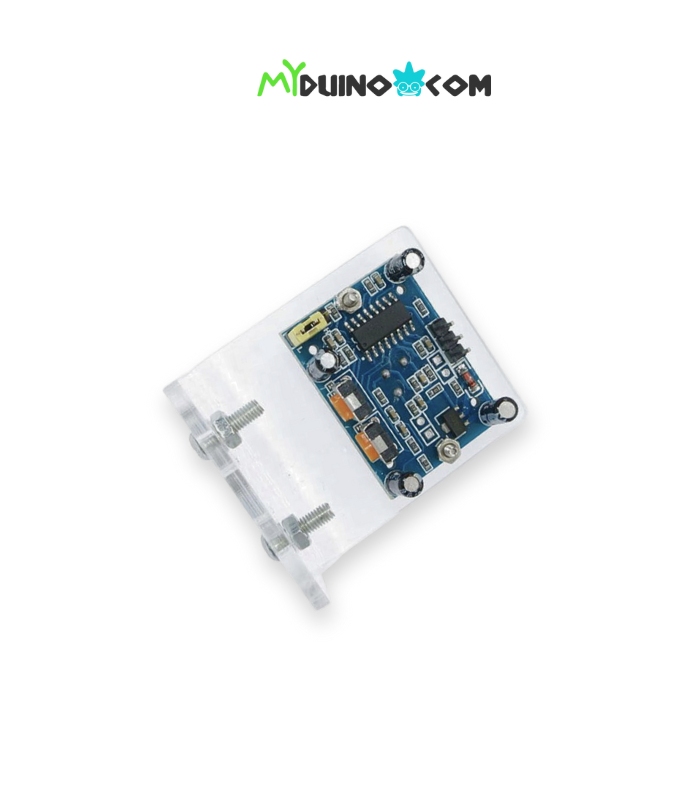

• The HC-SR501 PIR Motion Sensor can be inserted from either side of the bracket depending on other mounting considerations.

SPECIFICATIONS

SHIPPING LIST

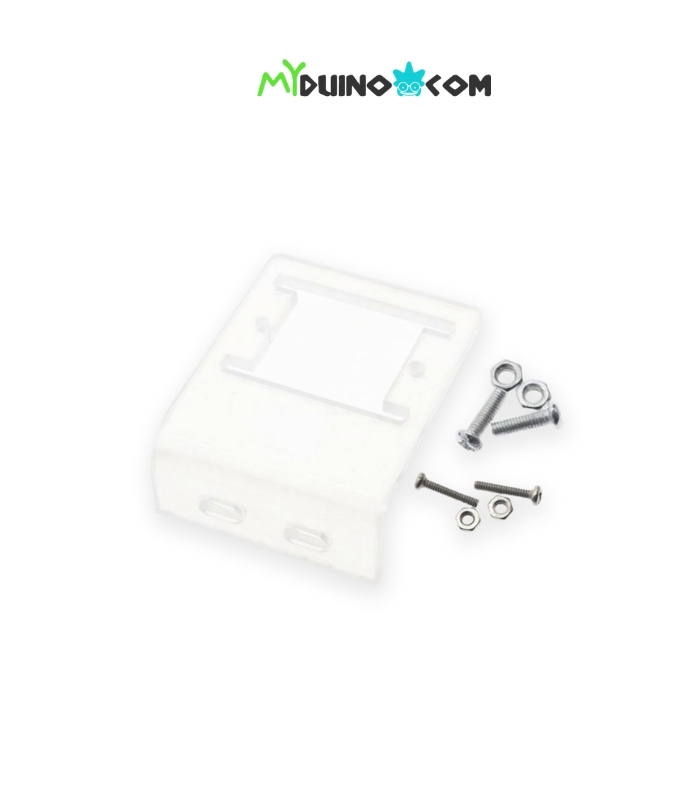

• 1 x HC-SR501 PIR Motion Sensor Mounting Bracket
• 2 x  small screws & nuts for mounting the sensor to the mount
• 2 x  large screws & nuts for attaching the mount to a surface
