They are substantially thinner than LCD screens with high brightness and create more accurate and realistic colors. OLEDs are the future of displays because they have some of the most significant benefits over both existing display technologies, LCDs, and LEDs.

This OLED Display Module is relatively tiny and will enhance your Arduino project’s user interface experience. The I2C (also known as IIC) serial interface is used to connect this display to Arduino. Because this OLED Display Module is compatible with Arduino and Raspberry Pi Modules, it is also known as the Arduino Display and the Raspberry Pi OLED Display.

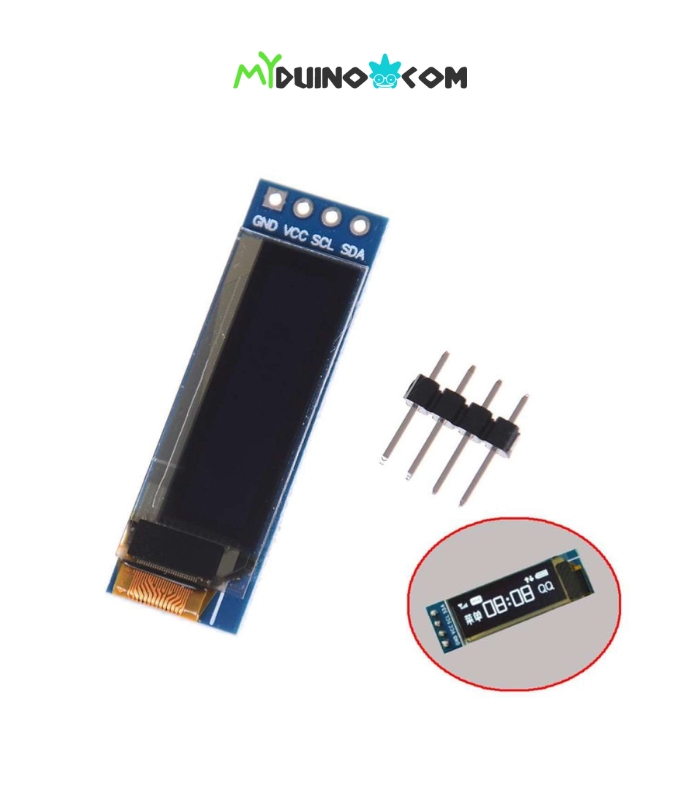

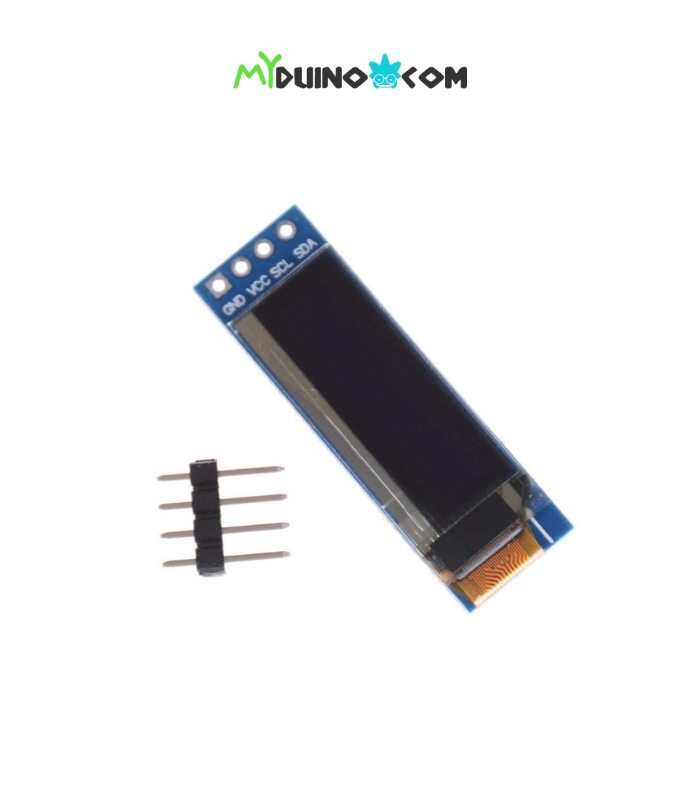

0.91 inch I2C/IIC 128×32 OLED Display Module – white Colour displays white letters on a black backdrop with excellent contrast. The OLED Display Modules have a very broad viewing angle as well.

SPECIFICATIONS

• Dot matrix: 128×32 dot
• Drive duty: 1/32 duty
• Driver is: SSD 1306
• Display color: white
• Interface: IIC
• VCC: POWER+ (DC 3.3~ 5v)
• Supply voltage for logic: 0-4VDD
• Operating temperature: -40 -+80 c
• Storage temperature: -40 – +85 c
• SCL: Serial clock
• SDA: Serial data
• Size: 0.91 inch OLED

DOCUMENTATION

• Tutorial
• Datasheet

SHIPPING LIST

• 1 x 0.91″ 128×32 I2C White OLED Display Module
