ITEAD PN532 NFC module, as its name implies, is based on a PN532 chip and used for 13.56MHz near-field communication. The module is equipped with an onboard antenna, thus no external antenna coil is needed. It is compatible with SPI, IIC, and UART communication interfaces. With NFC library support for Arduino and Raspberry Pi offered by us, it is quite convenient for developing products with NFC functions.
FEATURES
- Longest effective communication distance of 3 cm
- Supports switching of SPI, IIC and UART interface.
- Can be used for 13.56M non-contact communication
- Compatible with ISO14443 Type A and Type B standards
MAIN FEATURES

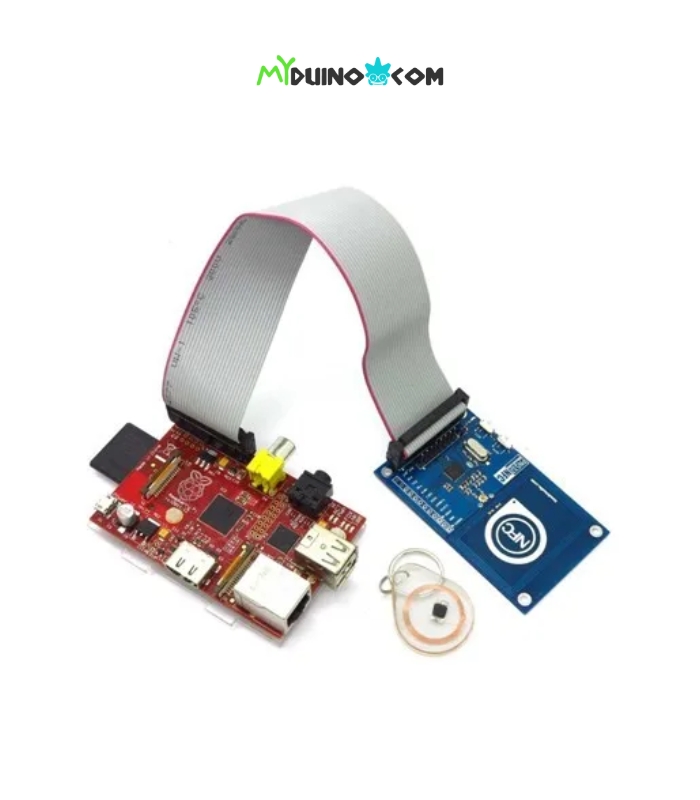

- Raspberry Pi Compatibility: Designed to easily integrate with Raspberry Pi systems.
- NFC Versatility: Capable of reading and writing to a wide variety of NFC cards and tags.
- 13.56 MHz Frequency: Operates in the standard NFC frequency range of 13.56 MHz.
- Wide applications: Ideal for access control, personal identification, micropayment and NFC tag reading.
- PN532 Chipset: Equipped with industry-leading NFC chipset for reliable performance.
SPECIFICATIONS
IC | NXP PN532 |
Operating Voltage | 3.3V |
Power Supply Voltage | 3.3~5.5V |
Max Supply Current | 150mA |
Working Current(Standby Mode) | 100mA |
Working Current(Write Mode) | 120mA |
Working Current(Read Mode) | 120mA |
Indicator | PWR |
Interface | SPI Interface, Std Raspberry Pi 20pins Interface |

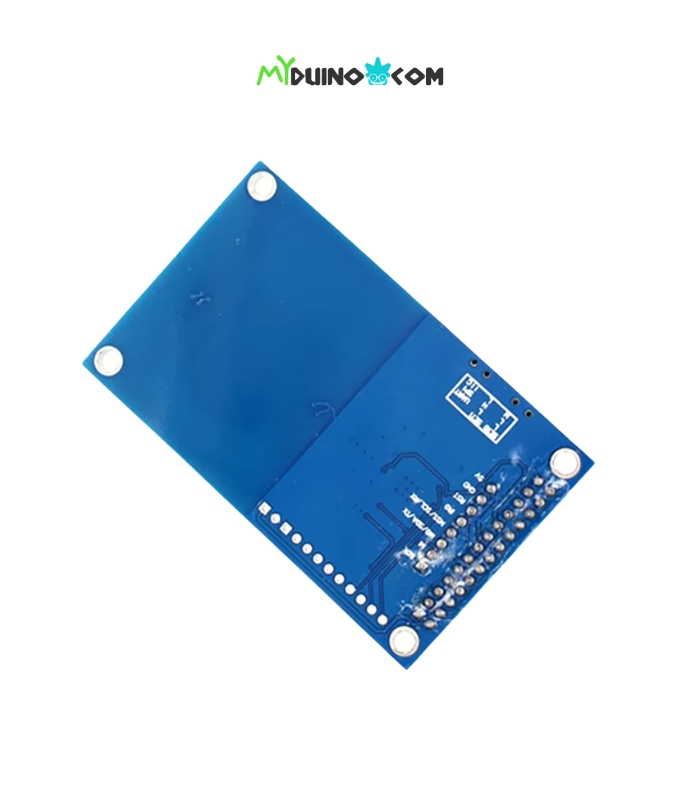

HARDWARE

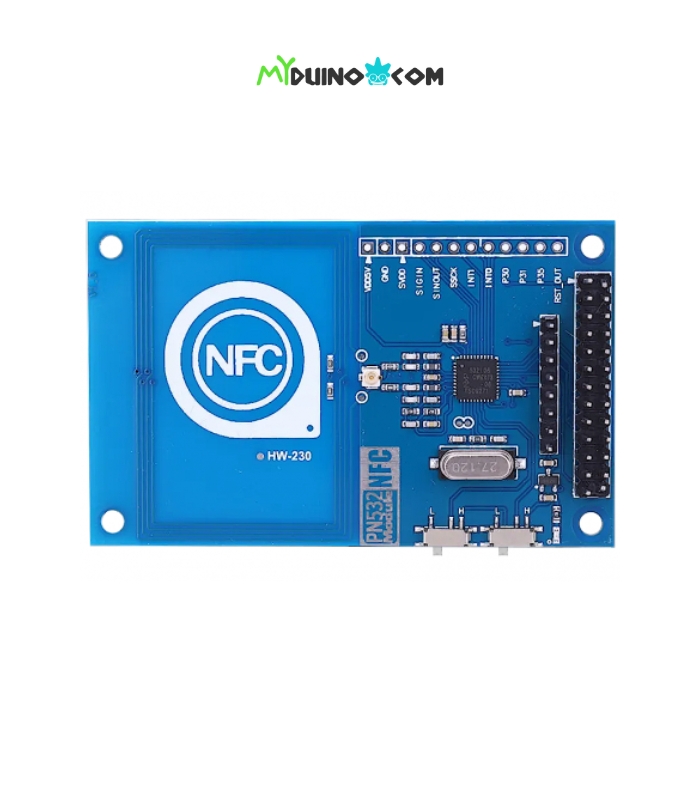

There are two slide switches on the board for selecting the interface mode:
SET0 | SET1 | |
UART | L | L |
SPI | L | H |
IIC | H | L |
DOCUMENT
- Datasheet
- Schematic
- Library for Arduino PN532 SPI V2
- Library for ITEAD PN532 NFC
- Library for Raspberry NFC
SHIPPING LIST
- 1 x PN532 NFC 13.56MHz Module for Arduino and Raspberry Pi
