Description

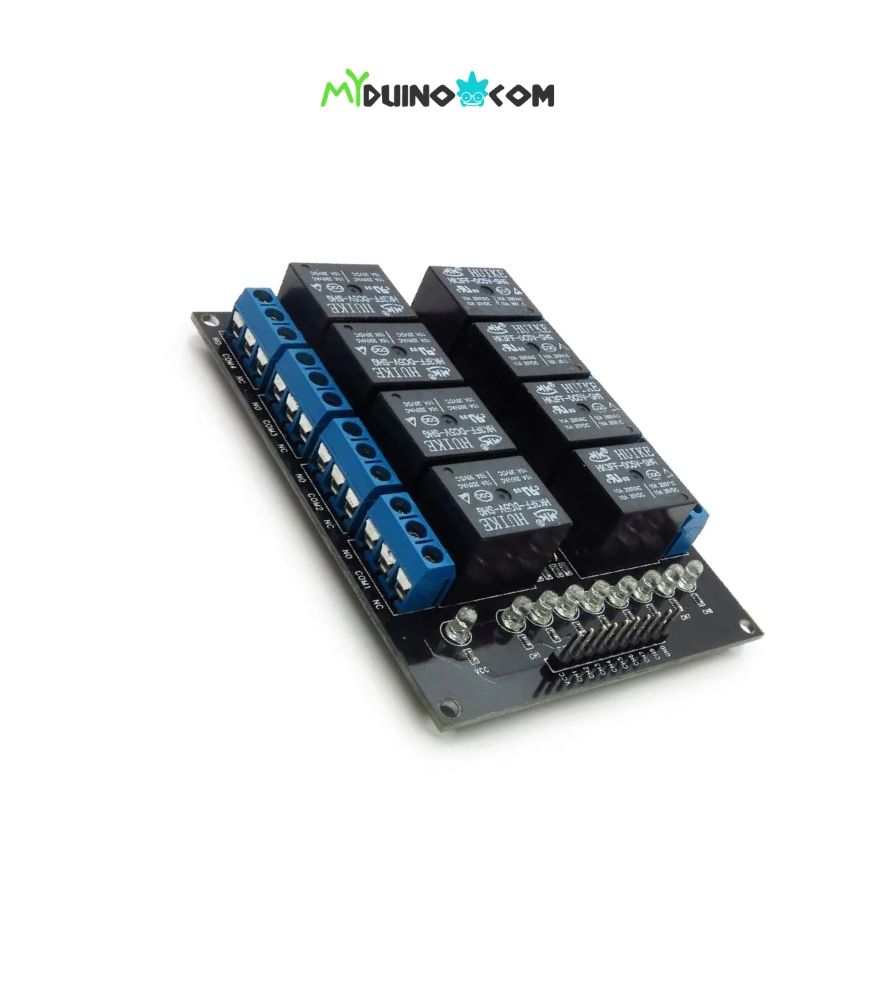

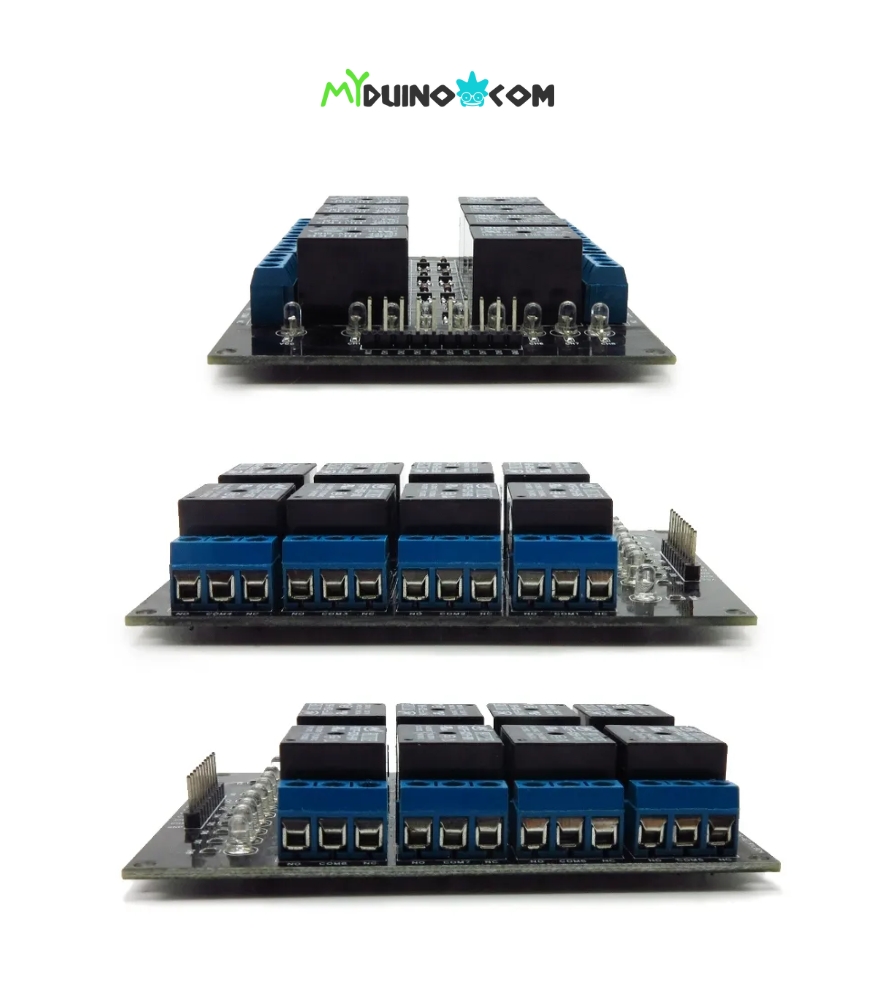

This is a 5V 8-Channels Relay module, It can be controlled directly by a wide range of microcontrollers such as Arduino, AVR, PIC, ARM and MSP430.

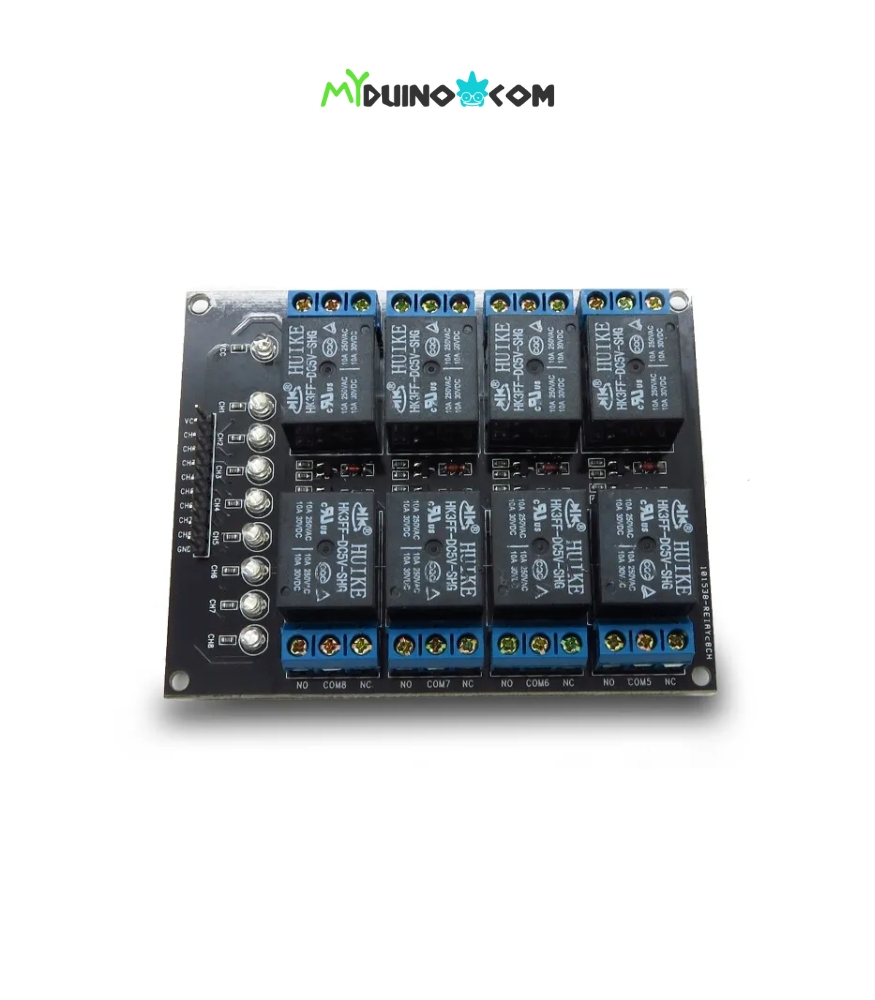

8 relays are included in this module, with “NC” ports mean “Normally connected to COM” and “NO” ports mean “Normally open to COM”. This module is also equipped with 8 LEDS to show the status of relays.

FEATURES

• 8 mechanical relays with status indicator LED
• Both “NC” and “NO” ports for each relay

DOCUMENT

• Wiki
• Schematic

SHIPPING LIST

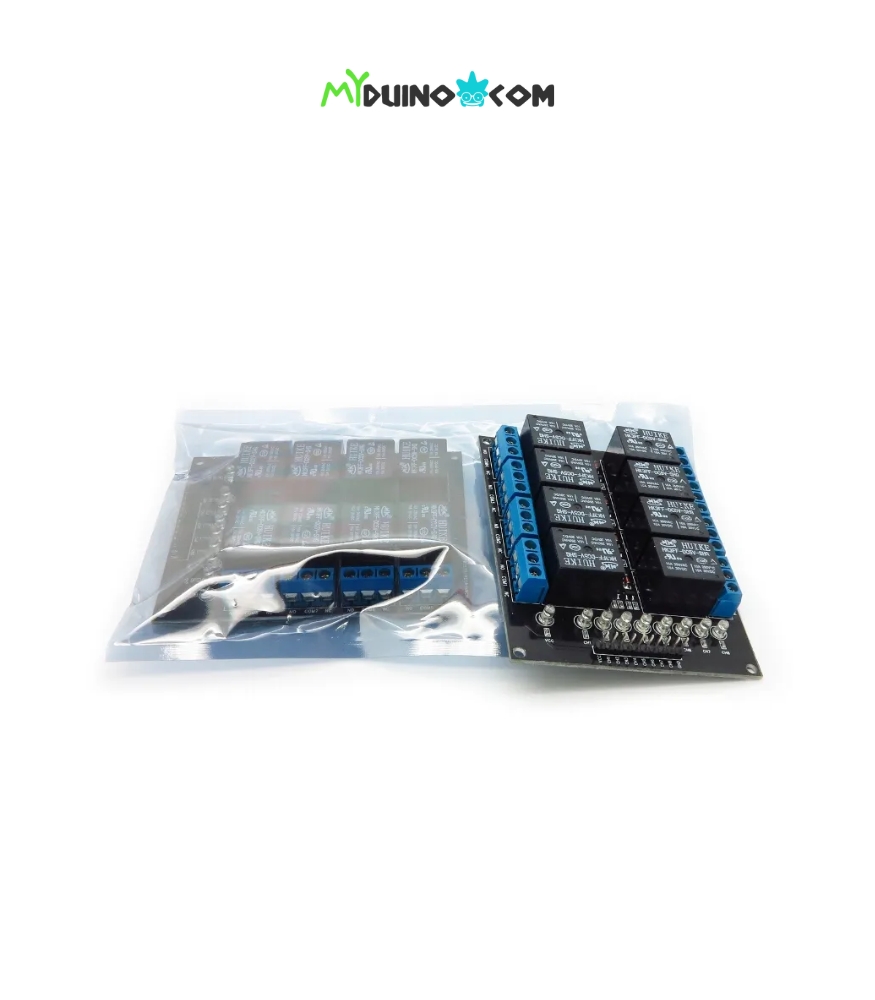

• 1 x 8 Channel 5V Relay Module
