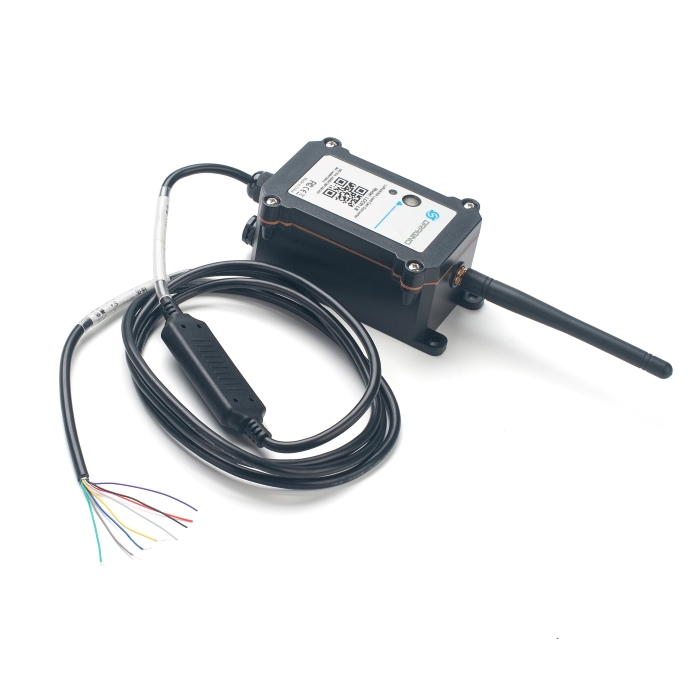

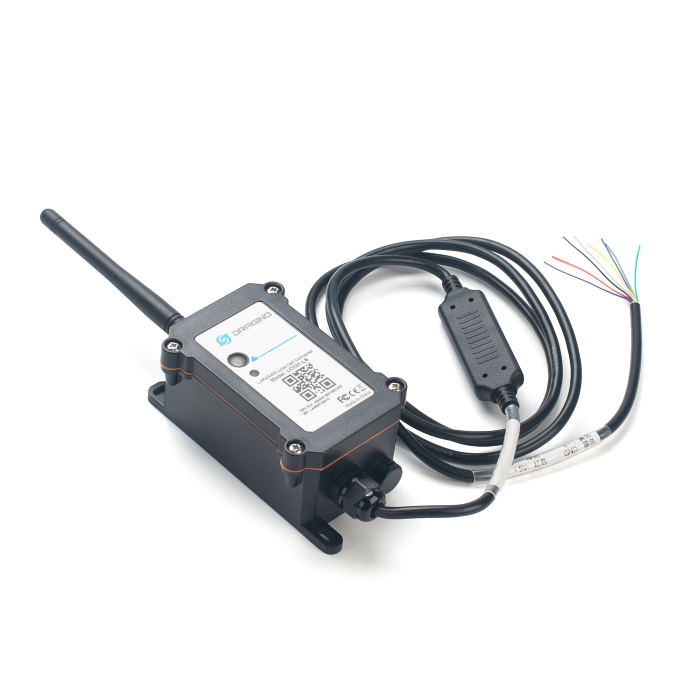

Dragino LCC01-LB LoRaWAN Load Cell Converter

RM419.00

Hurry, only 2 left.
Compare
SKU: MYP-DRG-061 Categories: ,
Description

Dragino LCC01-LB is a LoRaWAN Load Cell Converter for IoT solutions. It is used to accurately measure the weight of objects and then upload it to the IoT server through the LoRaWAN wireless protocol.

The LCC01-LB has a standard 4-wire interface which can connect to different type of load cell. It supports different scaling from gram to ton.

With LCC01-LB and a suitable load cell, user can build up a weight measurement loT solution. Applications are suitable for such as: truck scales, railway scales, supermarketscales, bench scales, heavy duty scales or any type of standard scale.

The LoRa wireless technology used in the LCC01-LB allows the device to send data at low data rates and reach extremely long distances. It provides ultra-long-distance spread spectrum communications and high interference immunity while minimizing current consumption.

LCC01-LB supports BLE configure and wireless OTA update which make user easy to use.

LCC01-LB is powered by 8500mAh Li-SOCI2 battery , which can last up to 5 years of long-term use.

Each LCC01-LB is pre-load with a set of unique keys for LoRaWAN registrations, register these keys to LoRaWAN server and it will auto connect after power on.

FEATURES

  • LoRaWAN 1.0.3 Class A
  • Bands:CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865
  • Ultra-low power consumption
  • Standard 4-wire interface to 3rd party load cell
  • Weigh Measurement, scale from 100g to 10T
  • Uplink on periodically
  • Downlink to change configure
  • Support BLE and LoRaWAN remote configure
  • Support wireless OTA update firmware
  • 8500mAh Li/SOCl2 Battery

APPLICATIONS

LCC01应用场景合并

SPECIFICATIONS

Common DC Characteristics:

  • Supply Voltage: Built-in Battery , 2.5v ~ 3.6v
  • Operating Temperature: -40 ~ 85°C

LoRa Spec:

  • Frequency Range,  Band 1 (HF): 862 ~ 1020 Mhz
  • Max +22 dBm constant RF output vs.
  • RX sensitivity: down to -139 dBm.
  • Excellent blocking immunity

Battery:

  • Li/SOCI2 un-chargeable battery
  • Capacity: 8500mAh
  • Self-Discharge: <1% / Year @ 25°C
  • Max continuously current: 130mA
  • Max boost current: 2A, 1 second

Power Consumption:

  • Sleep Mode: 5uA @ 3.3v
  • LoRa Transmit Mode: 125mA @ 20dBm, 82mA @ 14dBm

DOCUMENTATIONS

SHIPPING LIST

  • 1 x Dragino LCC01-LB LoRaWAN Load Cell Converter
