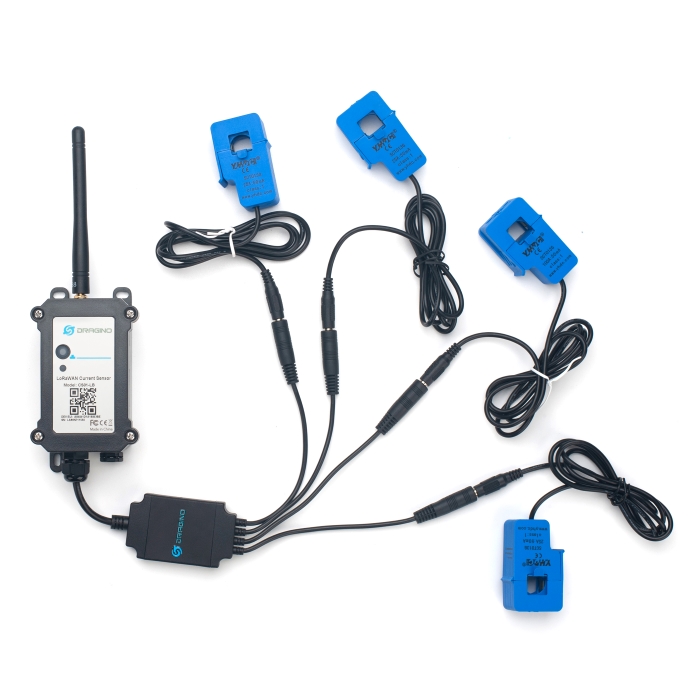

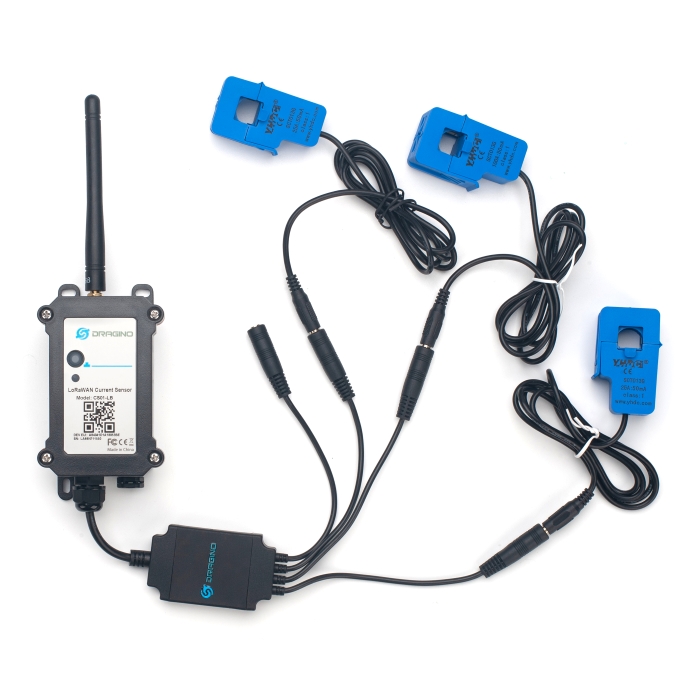

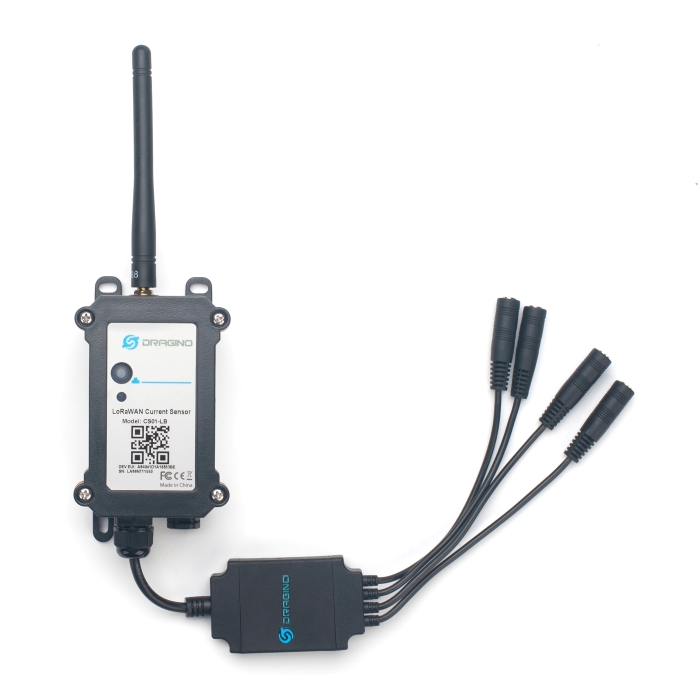

The Dragino CS01-LB is a 4 Channels Current Sensor Converter. It can convert the reading from current sensors and upload to IoT server via LoRaWAN Network. CS01-LB can be used to monitor the machine running status and analyze power consumption trends. The CS01-LB supports maximum 4 current sensors. The current sensors are detachable and can be replaced with different scales. CS01-LB supports BLE configure and wireless OTA update which makes user easy to use. CS01-LB is powered by 8500mAh Li-SOCI2 battery , it is designed for long-term use up to several years.
FEATURES
- LoRaWAN 1.0.3 Class A
- Bands:CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865
- Ultra-low power consumption
- Supports maximum 4 current sensors

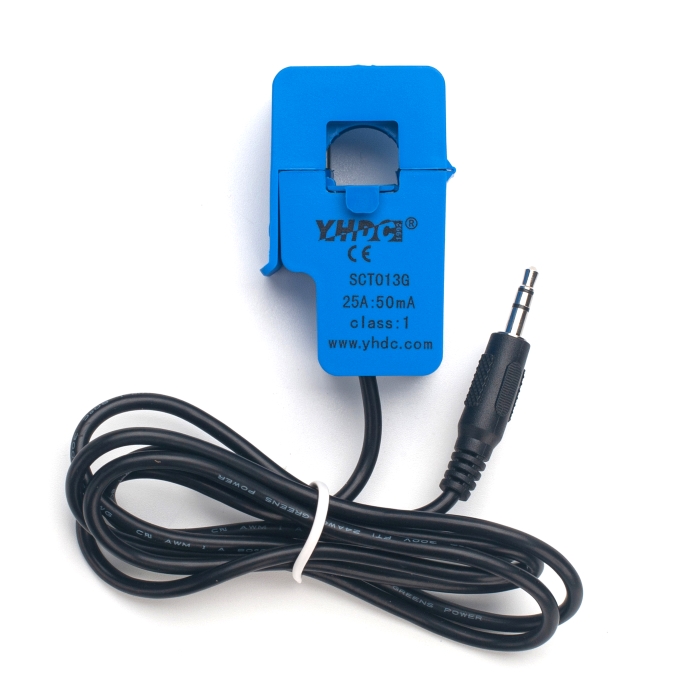

- Support various current sensor Ratio: 50A, 100A etc.
- Monitor the machine running status
- Analyze power consumption trends
- Current Alarm
- Uplink on periodically
- Downlink to change configure
- Support BLE and LoRaWAN remote configure
- Support wireless OTA update firmware
- 8500mAh Li/SOCl2 Battery
APPLICATIONS
SPECIFICATIONS
Common DC Characteristics:
- Supply Voltage: Built-in Battery , 2.5v ~ 3.6v
- Operating Temperature: -40 ~ 85°C
LoRa Spec:
- Frequency Range, Band 1 (HF): 862 ~ 1020 Mhz
- Max +22 dBm constant RF output vs.
- RX sensitivity: down to -139 dBm.
- Excellent blocking immunity
Battery:
- Li/SOCI2 un-chargeable battery
- Capacity: 8500mAh
- Self-Discharge: <1% / Year @ 25°C
- Max continuously current: 130mA
- Max boost current: 2A, 1 second
Power Consumption:
- Sleep Mode: 5uA @ 3.3v
- LoRa Transmit Mode: 125mA @ 20dBm, 82mA @ 14dBm
DOCUMENTATIONS
SHIPPING LIST
- 1 x Dragino CS01-LB LoRaWAN 4 Channels Current Sensor Converter
