This Arduino-based electronic weight sensor is capable of detecting a weight of up to 1kg. It uses a precision 24-bit analog-to-digital converter called HX711, which is designed for weight scale and industrial control applications, to interface directly with a bridge sensor.
This electronic Arduino weight sensor is not only cost-effective but also offers improved performance and reliability. It uses the DFRobot Gravity Interface for easy connection and has a compact terminal for output. It’s an excellent choice for electronic enthusiasts who want to create their small home scale.

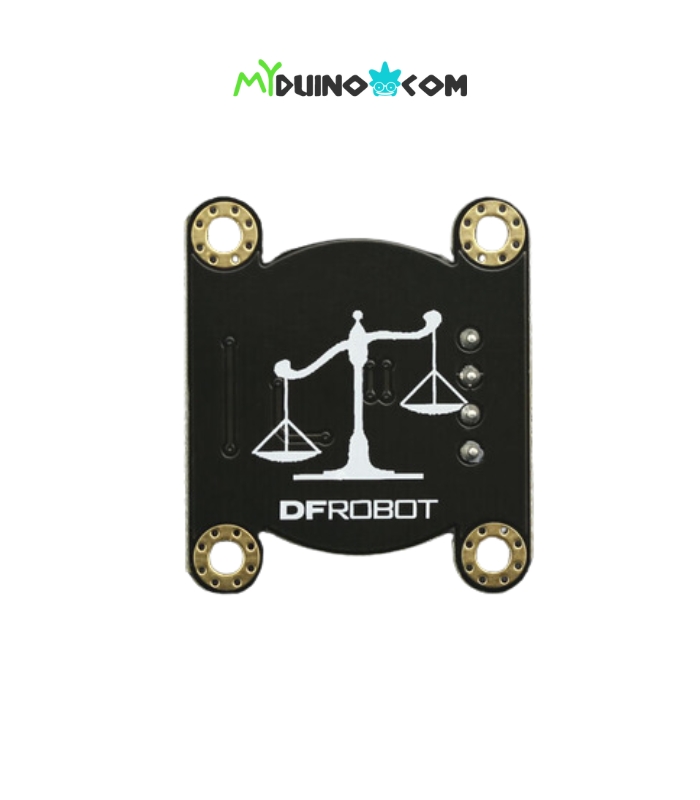

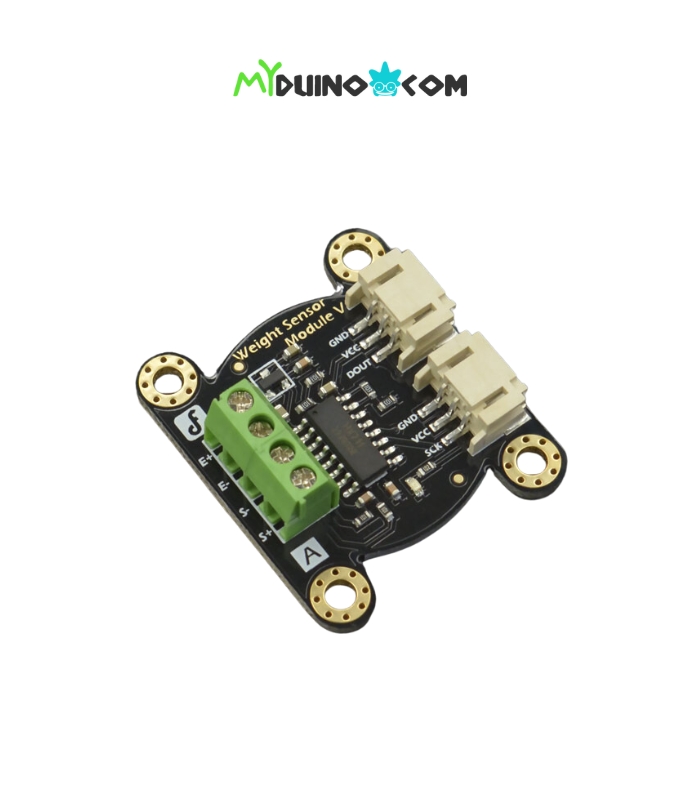

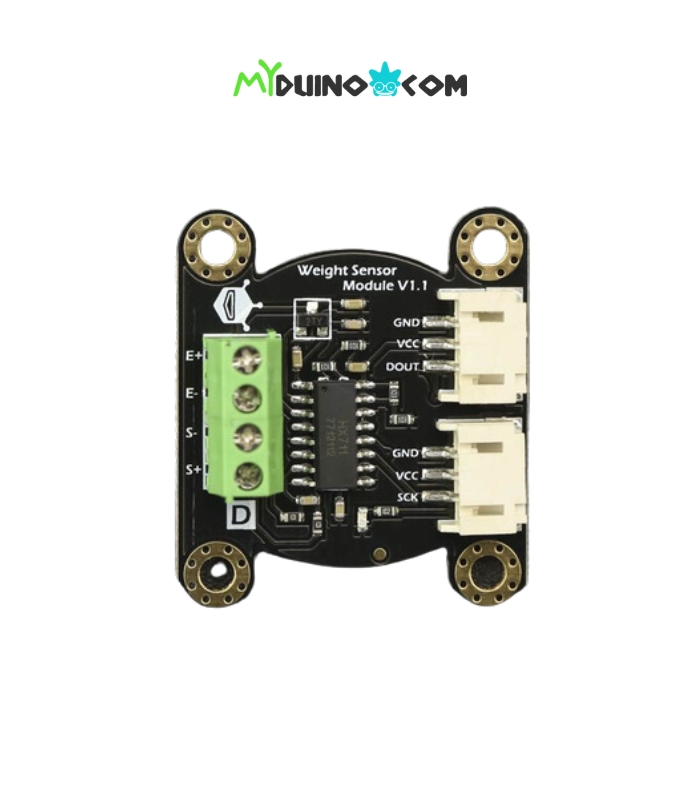

Sensor connection Note：
- Red Line — E+
- Black Line — E-
- White Line — S-
- Green Line — S+
SPECIFICATION
24-bit Analog-to-Digital Converter for Weight Scales (HX711)
- Two selectable differential input channels
- On-chip active low noise PGA with selectable gain of 32,64 and 128
- On-chip power supply regulator for load-cell and ADC analog power supply
- On-chip oscillator requiring no external component with optional external crystal
- On-chip power-on-rest
- Simple digital control and serial interface: pin-driven controls, no programming needed
- Selectable 10SPS or 80SPS output data rate
- Simultaneous 50 and 60-supply rejection
- Supply Voltage: 2.6V~5.5V
- Current: <1.6mA
- Working temperature: -40~85°C
- 16-pin SOP-16 package
Weight Sensor Module
- Range: 1kg
- Excitation voltage: 5-15 V
- Output sensitivity: 1.0±0.15mV/V
- Synthetical error: 1 per thousand per cent of full-scale
- Zero shift: 0.05/0.03 （30min）%F.S
- Zero temperature shift: 0.05/0.03 %F.S/10°C
- Zero output: ±0.1mV/V
- Input impedance: 1055±15 Ω
- Output impedance: 1000±5 Ω
- Overload capability: 200 %F.S
- Output: Analog output
- Size: 33mm*38mm
DOCUMENTS

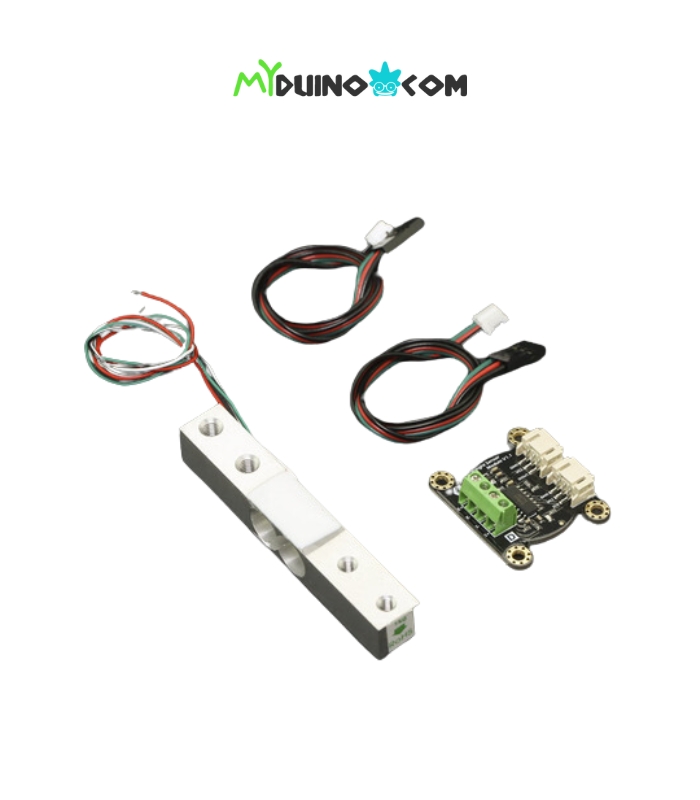

SHIPPING LIST
- 1 x Weight sensor module
- 1 x Weight sensor
- 1 x Sensor cable
