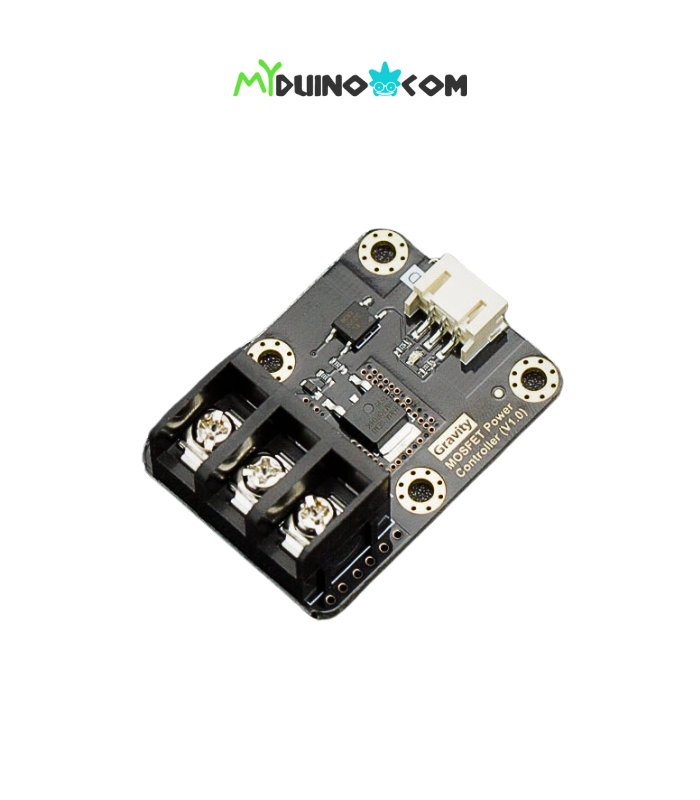

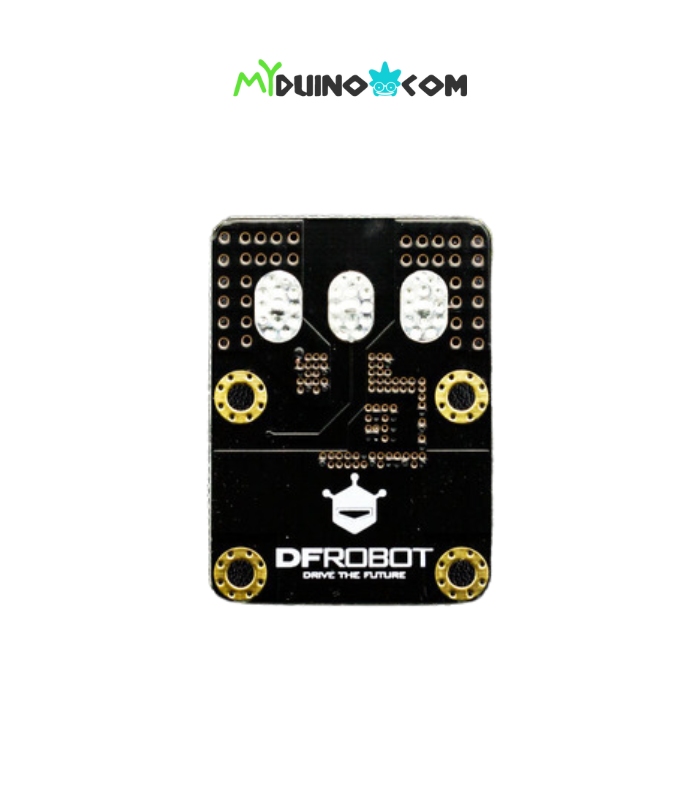

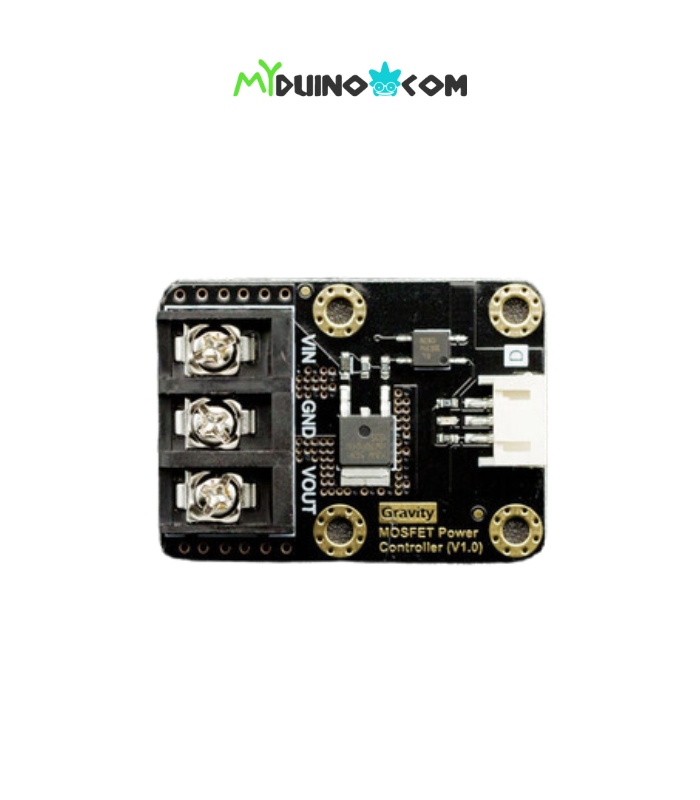

DFRobot MOSFET Power Controller

RM31.50

10% Off
Hurry, only 1 left.
Compare
SKU: MYP-DFR-101 Categories: ,
Description

In most Arduino projects, relays are the first choice to drive some large current device. It requires a certain amount of current to drive the internal coil to pick up contact. But it’s hard to drive one or more relays simultaneously for some MCUs, like Intel Edison, Intel Joule, lilypad, Raspberry Pi, and other microcontrollers with a limited amount of current GPIO.

The MOSFET power controller is a module which can drive a large current device with limited current GPIO. It works as a MOSFET relay or MOSFET driver. When you give it a digital high-level signal (3.3~10V), MOSFET turns on, and vice versa.

Compared to the relay module, the MOSFET power controller is compatible with Arduino, Raspberry Pi, Lattepanda and other microcontrollers, and supports 3.3~10V logic power control. The VIN port supports 5~36V; 0~20A power input, if the current is over 10A, we recommend an external heat sink. And MOSFET supports a quick ON-OFF switch, the switching frequency arrives at 1KHz. That is a good point for robot control.

The MOSFET power controller comes with a standard PH2.0-3P gravity interface. It makes the module compatible with the Arduino IO expansion shield. Plug and play, easy to use.Gravity: MOSFET Power Controller Connection



SPECIFICATION

  • VIN Operating Voltage: 5V-36V DC
  • VIN Operating Current: 0A-20A (Suggest external heat sink when the current over 10A )
  • Logic Operating Voltage: 3.3~10V DC
  • Logic Control Signal: 3.3~10V DC
  • Switching Frequency: 0-1KHz
  • Switching Character: T(on)=20us/T(off)=50us
  • Operating Temperature: -55℃-155℃
  • Interface Type: PH2.0-3P
  • Dimension: 44*32 mm/ 1.73*1.26 inches

DOCUMENTS

SHIPPING LIST

  • Gravity: MOSFET Power Controller x1
  • Gravity Digital Sensor Cable x1
