Note: This Raspberry Pi 15W (5V/3A) USB-C Power Adapter is NOT PD (Power Delivery), NOT QC (Quick Charge). The output is fixed at 5VDC.

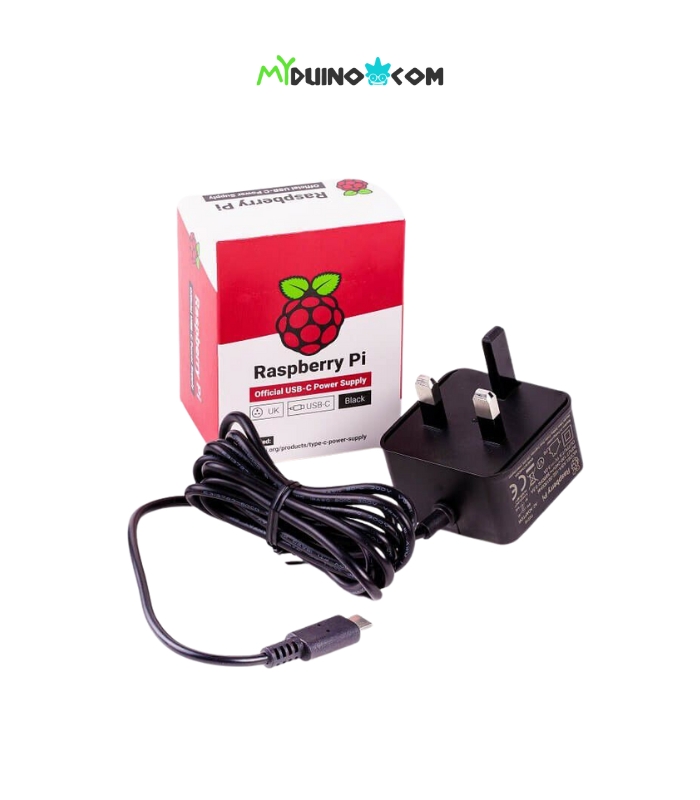

With the launch of the Raspberry Pi 4 Model B single-board computer, you will need this official power adapter that comes with USB type C to power up the popular computer. This high-quality PSU comes from Raspberry Pi Foundation and you can choose between Black and White 🙂 Nice!

FEATURES

• USB type C plug, for the latest Raspberry Pi 4 Model B
• Fixed Main Adapter (NOT interchangeable)
• Three AC Plug Types:
  • Type G (UK Type)
  • Type C (EU Type)
  • Type A (US Type)
• Two Color Choices:
  • Black
  • White
• 1.5 meter 18 AWG captive cable
• Short circuit, over-current, and over-voltage protection
• 5.1V output, 3.0A max output, perfect for long cable and high ampere usage
• NOT PD (Power Delivery) nor QC (Quick Charge), it is fixed output voltage at 5.0VDC
• 15.3W Max Output Power
• Universal AC power input, 100-240VAC, 50/60Hz
• Efficiency: 72% to 81%
• An official PSU from the Raspberry Pi Foundation
• Meant for Raspberry Pi 4 Model B
• Dimension: 45 x 45 x 49.7mm (UK Type)

SPECIFICATIONS

• Output:
  • Output voltage: +5.1V DC
  • Minimum load current: 0A
  • Nominal load current: 3.0A
  • Maximum power: 15.3W
  • Load regulation: ±5%
  • Line regulation: ±2%
  • Ripple & noise: 120mVp-p
  • Rise time: 100ms maximum to regulation limits for DC outputs
  • Turn-on delay: 3000ms maximum at nominal input AC voltage and full load
  • Protection:
    • Short circuit protection
    • Overcurrent protection
    • Over-temperature protection
  • Efficiency:
    • 81% minimum (output current from 100%, 75%, 50%, 25%)
    • 72% minimum at 10% load
  • Output cable: 1.5m 18AWG
  • Output connector: USB Type-C
• Input:
  • Voltage range:
    • 100-240VAC (rated)
    • 96-264VAC (operating)
  • Frequency: 50/60Hz ±3Hz
  • Current: 0.5A maximum
  • Power consumption (no load): 0.075W maximum
  • Inrush current: No damage shall occur and the input fuse shall not blow

• Datasheet
• Safety Certification

• 1 x Official RPi 15W (5V/3A) PSU USB C (UK Plug)
