A 12×12 mm Tactile Pushbutton is a compact and versatile electronic component commonly used in various devices and applications. Its small, square form factor, measuring 12×12 millimetres, makes it suitable for integration into compact and space-constrained electronic projects. Tactile pushbuttons are designed to provide tactile feedback, offering a satisfying “click” or “snap” feel when pressed, making them ideal for user interface controls, such as keypad buttons, switches, or navigation keys on electronic devices. These buttons are reliable and responsive, ensuring precise input commands in a wide range of consumer electronics, industrial equipment, and DIY electronics projects.
DIMENSION
SPECIFICATION
Push Button
- Dimension : 12 x 12 x 7.3mm excluding pins (L * W * H)
- Button Dimension : 3.8 x 3.8mm
- Contact Form: N.O., SPST
- Pin Number: 4 pins
- Pin Pitch : 12.5 x 5mm (L * W)
- Pin Length: 3.5mm
- Material: Plastic, Metal
- Net Weight: 0.85g
Round Cap
- Contact Resistance: 50mΩ
- Compatible for: 3.4 x 3.8 mm button shaft
- Width (mm): 13 (Body Diameter)
- Height (mm): 8
- Weight (gm): 1 (approx)
- Colour: Red / Blue / Black / Yellow / Green
DOCUMENT
SHIPPING LIST

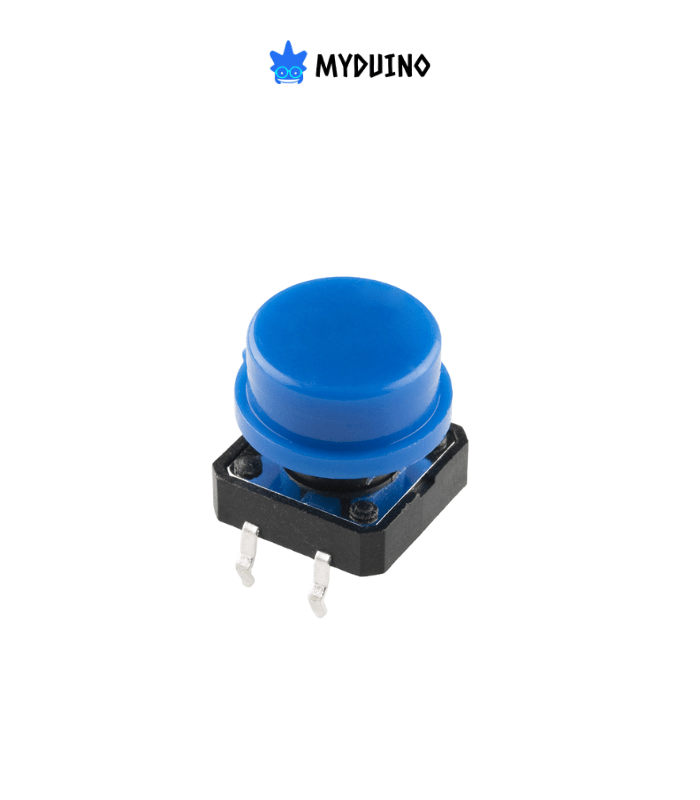

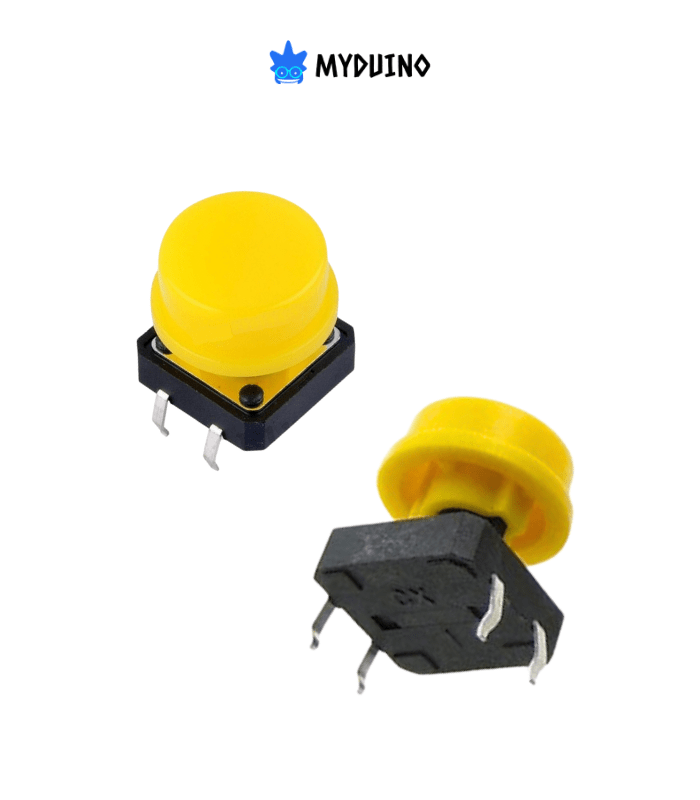

- 1 x 12x12mm Tactile Pushbutton
- 1 x Round Cap Red / Blue / Black / Yellow / Green
